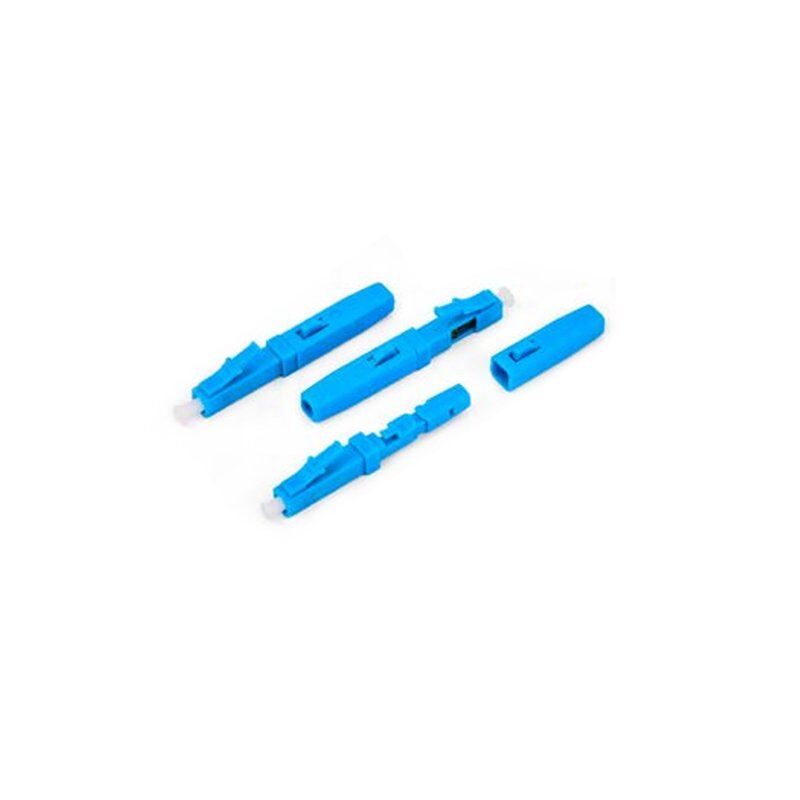

LC/UPC Mechanical Fiber Fast Connector



Overview

LC Fiber Optic Fast Connector also called LC Fast Fiber Connector or LC Quick Connector, designed for FTTH is a new generation of fiber connector used in assembly. It can provide Open flow and Pre-cast type of products, whose optical and mechanical specification meets the standard optical fiber connector. It is designed for high quality and high efficiency for installation; the structure of the crimping position is a unique design; and does not need gluing, polishing, or any consumables. It is adopting a fiber pre-installed structure that is convenient for field installation.



Features

• No gluing and polishing are required
• Can be made on-site without splicing
• Easy to install, fast, and easy on site
• Low insertion loss, high return loss



Applications

• Premise environments
• Connections at the desk for LAN environments
• Patch panels
• Direct equipment termination
• Fiber to the Subscriber (FTTH) applications
• Repair/replacement requirements
• Equipment test leads



Technical Specifications

Type	Parameters
Application cable	3.0 x 2.0 mm Drop Cable
Fiber diameter	125µm (G657A & G657B)
Tight buffer diameter	250μm
Insertion loss	AVG≤0.3dB，MAX≤0.5dB
Return loss	UPC≥45dB, APC≥50dB
Bare fiber strength	> 3N
Clad strength	> 8N
Tension strength	> 50N
On-line tensile strength (20 N)	△ IL ≤ 0.2dB △ RL ≤ 5dB
Mechanical durability (500 times)	△ IL ≤ 0.2dB △ RL ≤ 5dB
Drop-off test (drop-off height 4m, once per direction, total 3 times)	△ IL ≤ 0.2dB △ RL ≤ 5dB
Operating temperature	-25 ºC to +75 ºC
Connector length	44.3±0.2mm
