AOM-1104 100M Media Converter 4TX

Fast Ethernet Media Converter

10/100M 1GX4GE

Share on

Fast Ethernet Media Converter

10/100M, 1FX4FE, 4 ports RJ45

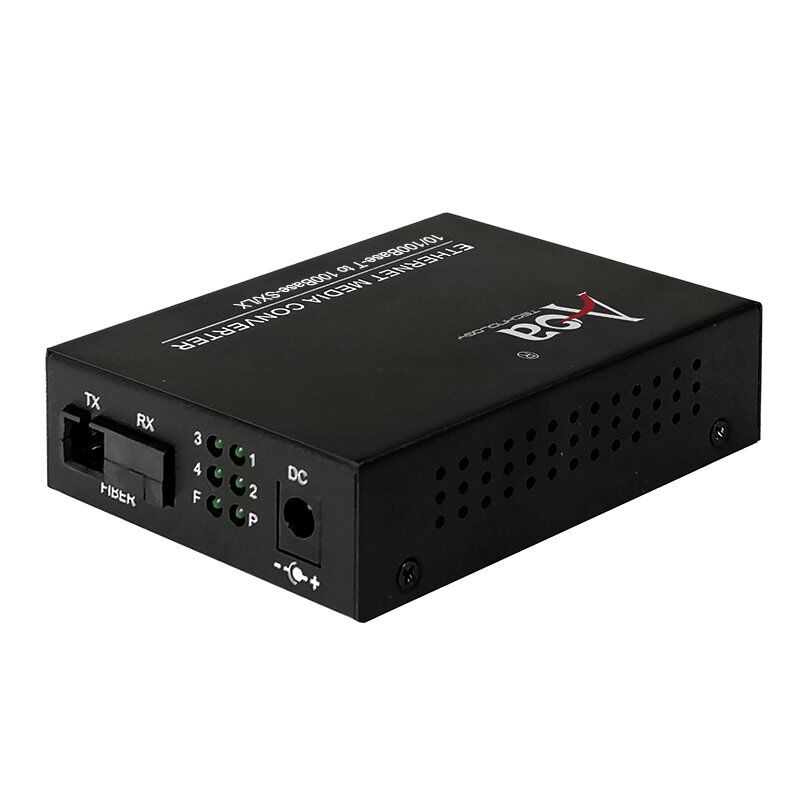

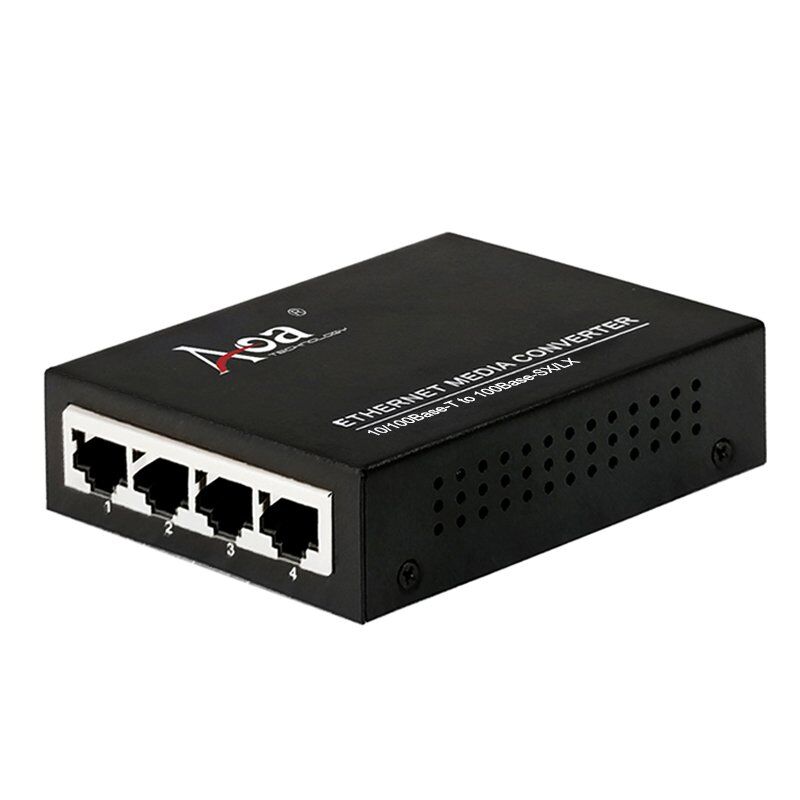

AOM-1104 is Fast Ethernet Media Converters, which extend the 10/100Mbbps twisted-pair network segments up to 120km over fiber technology. The series media converter is compact and cost-effective design, provide 4-port 10/100Mbps auto negotiation RJ45 connector and 1-port 155Mbps full-duplex on the fiber port with SC/FC/ST interface optional. It’s widely used in security monitoring, wireless networking, optical fiber access and other application scenarios.


  • 4-port 10/100M auto-negotiation RJ45 with auto-MDI/MDI-X
  • Fiber port provides SC/FC/ST, multi-mode/single mode optional
  • Full duplex and Half duplex operation with IEEE 802.3x flow control
  • Support broadcast filtering,MAC address automatic learning and updating
  • Support QoS, VoIP packet transparent trans
  • 2048bytesmaximum packet length
  • LED indicators for working status
  • Support hot plug and play
  • -20~60ºC working temperature
  • ESD,surge protection
  • IP30 enclosure
  • Wall-mounted Installation with optional kits
  • Low power consumption, lead-free process
  • CE/FCC/ROHS compliance



  • Network Communication
  • FTTH / FTTB / FTTx
  • ISP Backhaul Networking


Technical Specifications

Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Data forwarding Store and Forward
Switch capacity 1Gbps
Packet forwarding Rate 0.744Mpps
MAC address 2k
Buffer Space 512Kbit
Flow Control support
Max. Packet Length 2048bytes
Copper Port 4x 10/100M Auto-negotiation, RJ45 auto-MDI/MDI-X

Cat5/Cat5e/Cat6, ≤100m

Fiber Port 155M SC/FC/ST optional

OS1/OS2 ≤120km; OM1/OM2 ≤2m

LED indicators
Status PWR, Fiber Link/Act, Copper Link/Act
Electrical characteristics
Input Voltage 5Vdc
Power Consumption <2W
Power Port DC socket, φ2.5mm
Power Adaptor 100~240Vac (-48Vdc Optional) 50/60Hz input, 5Vdc 1A output
Physical characteristics
Dimension 94x71x26mm
Installation Wall-mounted ( Optional kits)
Enclosure Metal IP30
Working Temperature -20~60ºC
Storage Temperature -40~85ºC
Relative Humidity 5%~95% (no condensation )
Safety EN62368
EMC EN55032, EN55035, FCC Part 15 Subpart B Class A

IEC61000-3-2, IEC 61000-3-3, IEC61000-4-2, IEC 61000-4-3,

IEC 61000-4-4, IEC 61000-4-5, IEC61000-4-6, IEC61000-4-8, IEC61000-4-11

Reliability IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-32


 Order Information

Model Description
AOM-1104-M02 10/100M 4-RJ45, MM 1310nm SC 2km
AOM-1104-S20 10/100M 4-RJ45, SM 1310nm SC 20km
AOM-1104-A20 10/100M 4-RJ45, SM TX1310/RX1550nm SC 20km
AOM-1104-B20 10/100M 4-RJ45, SM TX1550/RX1310nm SC 20km
FC/ST available; 40/60/80/120km available.


Related Products

Model Description
Installation Accessories
TK10 Wall-mounted kits, 87x12x8.2mm, hole L=73mm φ3.0mm
