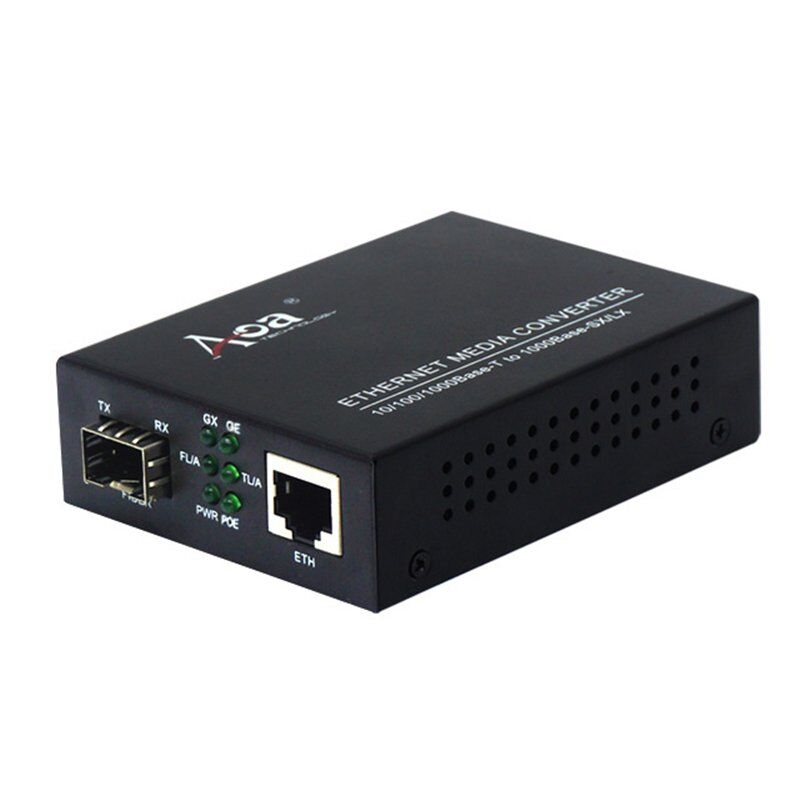

AOM-2100DP 1000M Media Converter PoE

Gigabit Ethernet Media Converter

10/100/1000Base-T(POE) to 100/1000Base-X, LFPT

Share on

Gigabit Ethernet Media Converter

10/100/1000Base-T(POE) to 100/1000Base-X, LFPT



AOM-2100D is Gigabit Ethernet Media Converters, which extends the 10,100 and 1000Mbbps twisted-pair network segments up to 120km over fiber technology. Supporting 10/100/1000Mbps auto negotiation on the copper port and 1000Mbps full-duplex on the fiber port, SFP/SC/FC/ST interface optional, and also SFP Slot support 1.25G/155M SFP modules with auto-negotiation function.

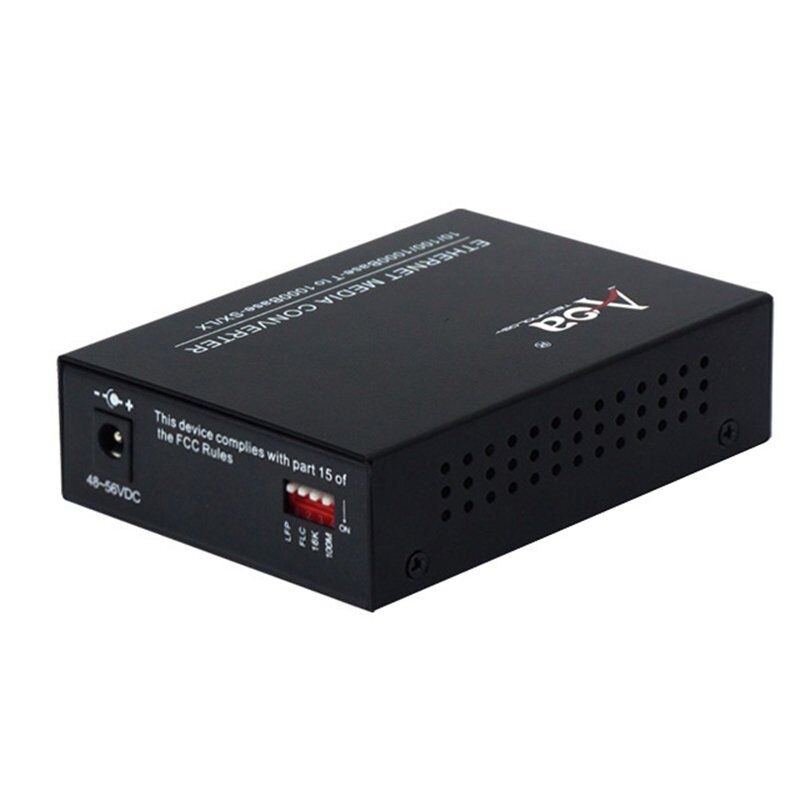

AOM-2100D is with DIP switch to set the LFPT function. Link fault pass-through (LFPT) is the function of media converters. This function prevents data loss in case of link failure. The media converters feature a pair of hetero links, such as a pair of copper links and fiber links. In cases of high data traffic, return losses, etc, the copper or fiber link may fail.

AOM-2100DP is Gigabit PoE Media Converters is designed specially to satisfy the growing demand for higher power required network devices, it complied the IEEE 802.3af/at standard. While using standard Cat5/5e/6 cables that carry Ethernet data, the converter can also provide power to a Powered Devices,such as IP cameras, VoIP phones and wireless access points.


  • Copper port support auto-negotiation, auto-MDI/MDI-X
  • SFP port provides 25G/155M auto-negotiation
  • Full duplex and Half duplex back pressure auto-negotiation
  • LFPT function
  • 16K Jumbo Frame
  • LED indicators for working status
  • Wide range power input
  • ESD, surge protection
  • IP30 enclosure
  • Chassis Mounted, Wall-mounted Installation with optional kits
  • Low power consumption, lead-free process
  • CE/FCC/ROHS compliance



  • Network Communication
  • FTTH / FTTB / FTTx
  • ISP Backhaul Networking


Technical Specifications

Model AOM-2100D AOM-2100DP
Standard IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x
Processing type Store and Forward
MAC address 2k
Buffer Space 718k
Flow Control support
Jumbo Frame 16k bytes
Copper Port 10/100/1000M Auto-negotiation,

RJ45 auto-MDI/MDI-X

Cat5/Cat5e/Cat6, ≤100m

Fiber Port 1.25G/155M SFP, 1.25G SC/FC/ST optional

OS1/OS2 ≤120km; OM1/OM2 ≤550m

Power Port DC socket, φ2.5mm
LED indicators PWR, GX, GE,FL/A,TL/A PWR, PoE, GX, GE,FL/A,TL/A
Dip-switch LFPT, Flow control, Jumbo frame, Forced 100M
PoE Function
Standard / IEEE802.3af, IEEE802.3at
Pin Assignment / 1/2(+), 3/6(-)
PoE Budget / ≤30Watts
Electrical characteristics
Input Voltage 5-12VDC 48-58Vdc
Input Current Max. 0.25A Max. 0.67A
Power Consumption ≤2W ≤33W
Physical characteristics
Dimension 94x71x26mm
Protection IP30
Installation Chassis mounted,wall-mounted Chassis mounted
Working Temperature -20~60ºC
Storage Temperature -40~85ºC
Relative Humidity 5%~95% (no condensation )


 Order Information

Model Description
AOM-2100D-SFP 10/100/1000M, SFP slot
AOM-2100D-M05 10/100/1000M, MM 850nm SC 550m
AOM-2100D-S20 10/100/1000M, SM 1310nm SC 20km
AOM-2100D-A20 10/100/1000M, SM TX1310/RX1550nm SC 20km
AOM-2100D-B20 10/100/1000M, SM TX1550/RX1310nm SC 20km
AOM-2100DP-SFP 10/100/1000M (PoE) , SFP Slot
AOM-2100DP-M05 10/100/1000M (PoE), MM 850nm SC 550m
FC/ST available; 40/60/80/120km available

24W, 100-240Vac input, 48Vdc 0.5A output power adaptor as default.


Related Products

Model Description
Media Converter Chassis (for AOM-2100D series only)
AOR-14-2A 14 Slot Chassis with double AC220V Power Supply
AOR-14-2D 14 Slot Chassis with double DC48V Power Supply
