AOM-5100 10G Media Converter

10G Ethernet Media Converter

10G/5G/2.5G/1G/100M copper to 10GBASE-X SFP

Share on

10G Ethernet Media Converter

10G/5G/2.5G/1G/100M copper to 10GBASE-X SFP



AOM-5100 is a 10G Media Converter provide 10G/5G/2.5G/1G/100Base-T auto-negotiation port and one 10GBASE-X SFP+ Slot. It transparently connects 10G Ethernet links over multi-mode or single- mode fiber,including CWDM/DWDM wavelength.

The SFP slot on the AOM-5100 Media Converter allows for flexible network configurations to meet any requirement using a variety of MSA compliant SFP, provide by AOA, Cisco, or other manufacturers; the extended distance reach 80km.

AOM-5100 10G Media Converter is designed for high bandwidth network needs: campus networks,data centre cloud computing,enterprise backbones and carrier infrastructure.


  • 10GBASE-X SFP+ MSA compliant
  • 10G/5G/2.5G/1G/100Base-T RJ45 interface with MDI/MDI-X function
  • 100M half/full duplex and 1/2.5/5/10G full duplex mode
  • 16K Jumbo frame
  • 2KV Surge protection on copper and 4KV surge protection on DC power input
  • 5-12VDC working voltage
  • Auto-media detect for copper or fiber media plug-and-play
  • Desktop, Wall-mounted, 2U 19”14-slot rack-mounted installation
  • Extremely low power consumption,fan-less and stable performance



  • Enterprise Switches with 2.5G/5G/10G capabilities
  • Data Center 10GBASE-T Switches and Servers
  • ISP Backhaul Networking,802.11ac Access Point backhaul


Technical Specifications

Parameter Specifications
Standards IEEE802.3u 100Base-TX

IEEE802.3ab 1000Base-T

IEEE802.3bz 2.5G/5GBase-T

IEEE802.2an 10GBase-T

IEEE802.3ae 10Gpbs Ethernet

IEEE802.3x Flow control

Performance Processing Type: Store and Forward

Back Bandwidth: 20Gbps

Time Delay: <5us

Jumbo Frame: 16Kbytes

Copper Port Data Rate: 10G/5G/2.5G/1G/100/10Base-T Auto-negotiation

Connector: RJ45, Auto MDI/MDI-X

Distance: 100m

Fiber Port Data Rate: 10G

Connector: SFP+ Slot

MSA compliant

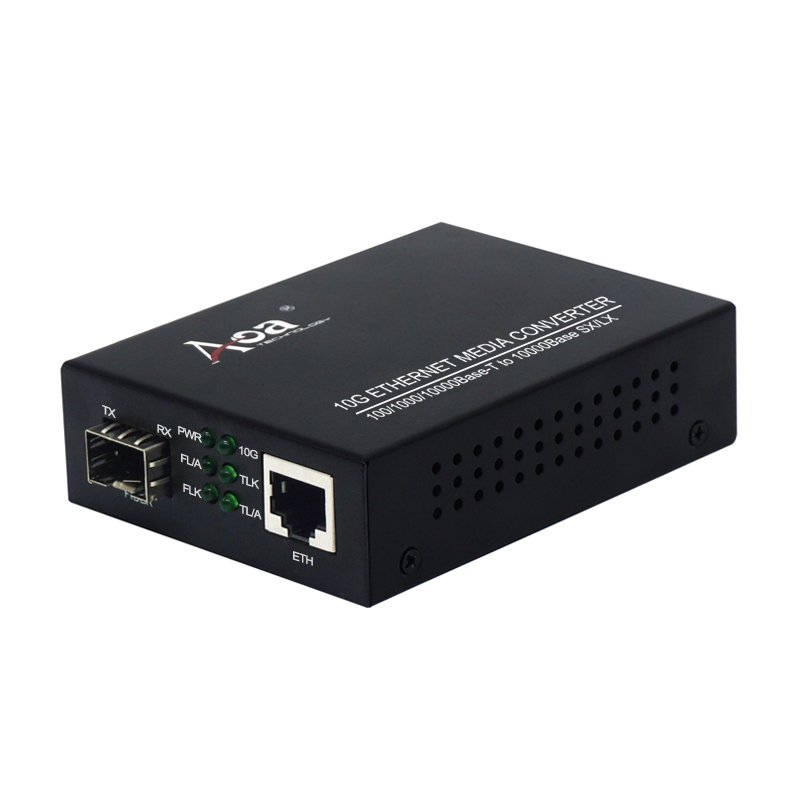

LED indicators PWR,10G Speed,

Fiber link, Fiber link Act,

Copper Link, Copper Link Act

Electrical Power requirements: 5-12VDC, 2A Max.

Power consumption:: <4W, full-loaded

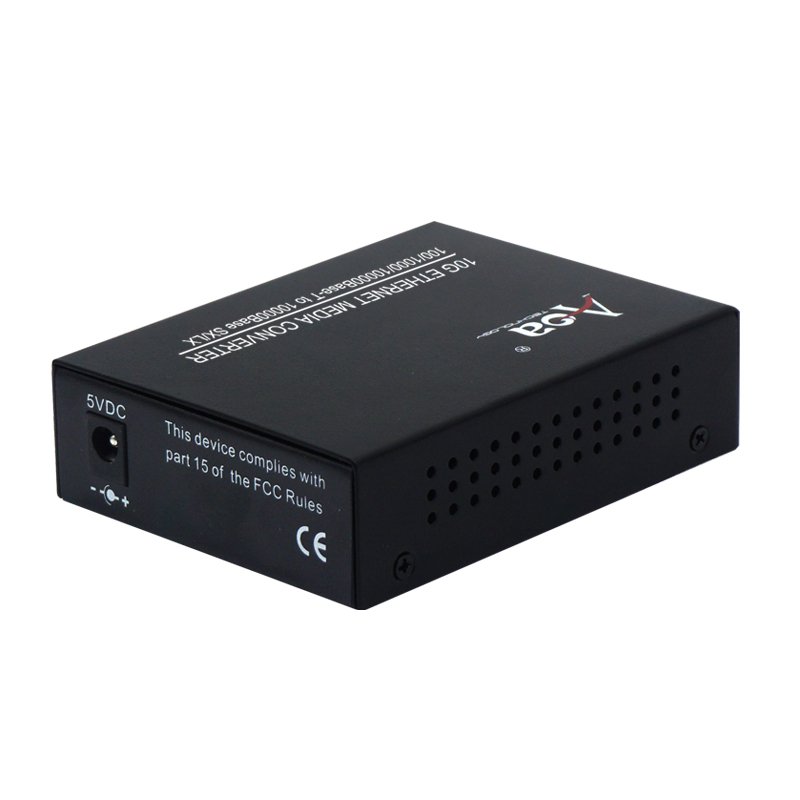

Connector: DC socket

EMC Protection Power port : IEC 61000-4-5  Level 4,  4KV

Copper port: IEC 61000-4-5  Level 3,  2KV

ESD:       IEC 61000-4-2   Level 4  8KV/15KV

Environment Operating temperature : -10~55ºC

Storage Temperature: -40~85ºC

Relative Humidity: 5-95% (no condensation)

Physical Characteristics Installation: Desk-top, wall mounting, Chassis

Dimension: 94*70*26mm (External power supply)

Weight: 0.4kg (External power supply)


 Order Information

Model Description
AOM-5100 10G/5G/2.5G/1G/100M copper RJ45 to 10GBASE-X SFP+


Related Products

Model Description
SFP Module
SFP-M1085L-03 10G MM 850nm LC 300m DDM
SFP-S1013L-10 10G SM 1310nm LC 10km DDM
SFP-B1023L-20 10G SM TX1270/RX1330nm LC 20km DDM
SFP-B1032L-20 10G SM TX1330/RX1270nm LC 20km DDM
40/60/80/100/120km is available
Installation Accessories
AOR-14 19” 2U, 14-slot rack with dual power supply
TK10 Wall-mounted kits, 87x12x8.2mm, hole L=73mm φ3.0mm
