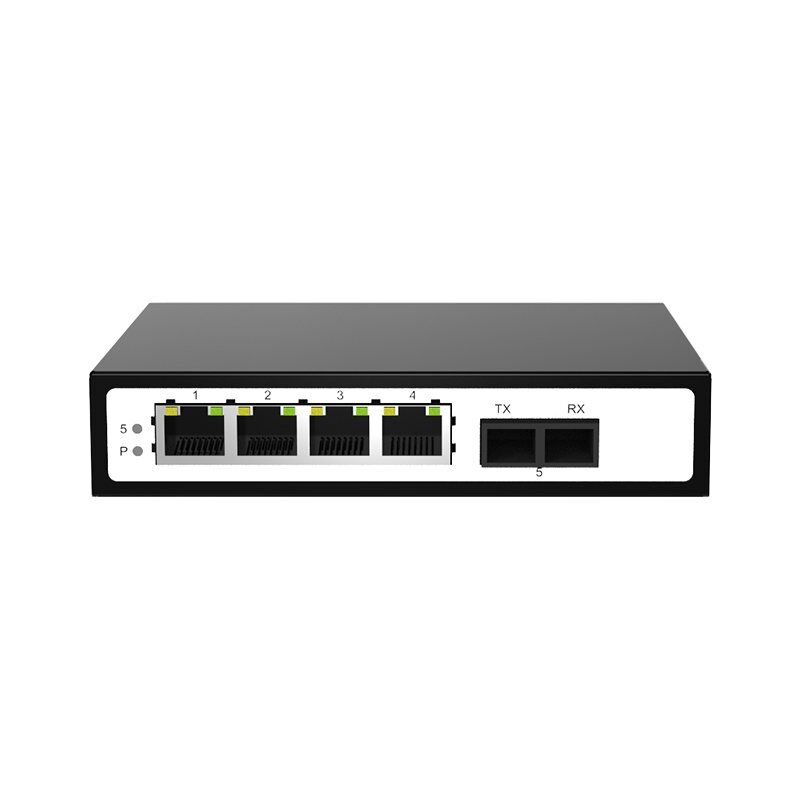

CES3006-4P1F 4GE 1GX PoE Unmanaged Switch
Unmanaged Ethernet Switch
4x 10/100/1000M PoE, 1G SC/FC/ST fiber uplink
Share on
Unmanaged Ethernet Switch
4x 10/100/1000M PoE, 1G SC/FC/ST fiber uplink
Overview
CES3006 series Gigabit Ethernet Switch adopts store-and-forwarder architecture with wired-speed performance, featuring 2/4x 10/100/1000Base-T RJ45 port and 1/2x 1000Base-SX/LX SFP/SC/FC/ST fiber port, is designed to meet the demands of modern network infrastructures.
Features
- High-Speed Connectivity: 2/4x 10/100/1000 Mbps RJ45 ports, ensuring seamless data transmission for bandwidth-intensive applications.
- Fiber Uplink Capability: 2x 1000Base-SX/LC SFP/SC/FC/ST fiber ports, providing flexible fiber connectivity options for extended network reach and enhanced performance.
- Power over Ethernet (PoE): Each RJ45 port supports PoE, delivering up to 30W per port, compliant with IEEE 802.3af/at standards. This enables the switch to power devices such as IP cameras, wireless access points, and VoIP phones directly through the Ethernet cables, simplifying installation and reducing the need for additional power sources
- Robust compact Design: Housed in a durable IP30 metal casing, the switch is built to withstand challenging environments, ensuring reliable operation in various commercial settings.
- Plug and Play: With its unmanaged design, the switch offers straightforward deployment without the need for complex configuration, making it an ideal choice for businesses seeking hassle-free network expansion.
Applications
- Surveillance Systems: Perfect for powering IP cameras and managing high-definition video streams.
- Wireless Networks: Ideal for connecting and powering wireless access points to extend network coverage.
- VoIP Communications: Suitable for connecting VoIP phones, ensuring clear and uninterrupted voice communication.
Technical Specifications
| Performance | |
| Standard | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x |
| Data forwarding | Store and Forward |
| Switch Capacity | 12Gbps/non-blocking |
| Packet forwarding Rate | 8.92Mpps |
| MAC address | 2Kbit |
| Buffer Space | 1M |
| Jumbo Frame | 9K |
| Ports | |
| Copper port | 10/100/1000M Auto-negotiation, RJ45 Auto-Cross for MDI/MDIX
Cat5/Cat5e/Cat6, ≤100m |
| Fiber port | 1.25G SFP/SC/FC/ST
OS1/OS2 ≤120km; OM1/OM2 ≤550m |
| LED indicators | |
| Status | Power, Link/Act, Speed/PoE |
| PoE | |
| Standard | IEE802.3af/at |
| Pin Assignment | 1/2(+), 3/6(-) |
| PoE Budget | ≤30W each port |
| Electrical characteristics | |
| Power Input | 5~12Vdc, 44~58Vdc for PoE models |
| Power Consumption | <5W |
| Power interface | DC socket |
| Physical characteristics | |
| Dimension | 135x97x28mm ( 135x97x44mm for 2x SC/FC/ST model ) |
| Installation | Wall-mounted / Desktop |
| Protection | IP30, metal |
| Environment | |
| Working Temperature | -10°C ~ 60°C |
| Storage Temperature | -40˚C~85˚C |
| Relative Humidity | 5%-95% (no condensation) |
| Certification | |
| Safety | EN62368 |
| EMC | EN55032 Class A, FCC part 15 Subpart B Class A
EN 61000-3-2 Class A, EN 61000-3-3 Class A, EN 61000-4-2 Level 3, EN 61000-4-3 Level 3, EN 61000-4-4 Level 3 EN 61000-4-5, EN 61000-4-6 Level 3, EN 61000-4-8 Level 4 30A/m EN 61000-11 Voltage dip/interruption |
| Reliability | IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-32 |
| RoHS | RoHS 2.0 |
Order Information
| Model No. | Description |
| CES3006-5T | 5x 10/100/1000M RJ45 |
| CES3006-5T1S | 5x 10/100/1000M RJ45, 1x SFP |
| CES3006-4T1F | 4x 10/100/1000M RJ45, 1x SC/FC/ST fiber port |
| CES3006-4T2S | 4x 10/100/1000M RJ45, 2x SFP |
| CES3006-4T2F | 4x 10/100/1000M RJ45, 2x SC/FC/ST fiber port |
| CES3006-4P1T | 4x 10/100/1000M PoE, 1G RJ45 uplink |
| CES3006-4PTS | 4x 10/100/1000M PoE, 1G RJ45 + SFP uplink |
| CES3006-4P1F | 4x 10/100/1000M PoE, 1G SC/FC/ST fiber uplink |
| CES3006-4P2S | 4x 10/100/1000M PoE, 2x 1G SFP uplink |
| CES3006-4P2F | 4x 10/100/1000M PoE, 2x 1G SC/FC/ST fiber port |
| Note: 5V1A power adaptor for Non-PoE models, 65W power adaptor for PoE mode | |
