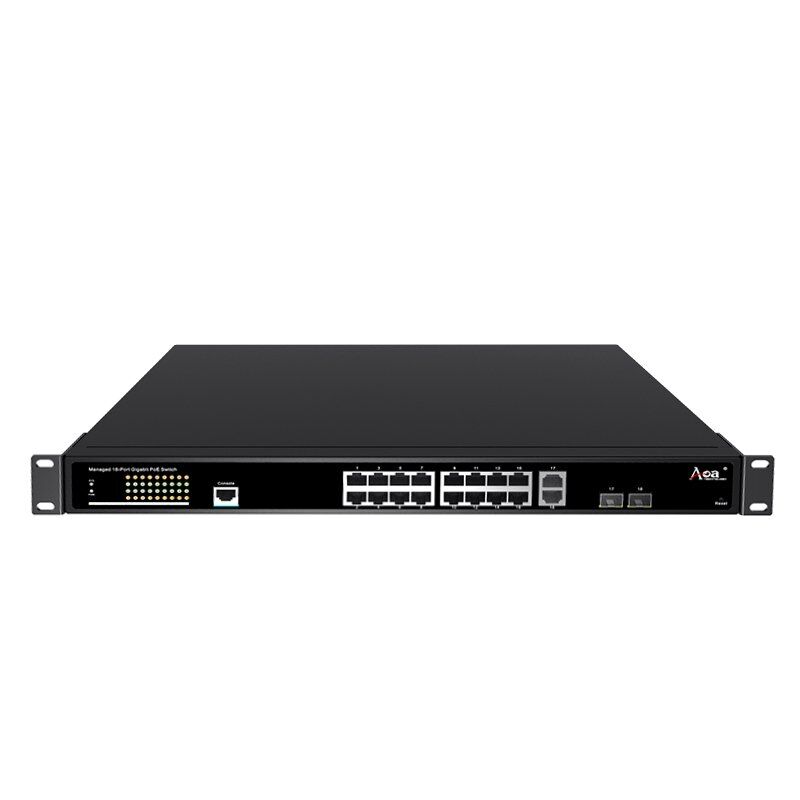

Managed Ethernet Switch

L2+ managed, 16×10/100/1000M RJ45 (PoE), 2x1Gb Combo



Overview

AOA Tech CMS3200 series L2+ managed Gigabit Ethernet switch adopts a new generation of high performance hardware and software platform to provide flexible and cost-effective full Gigabit access and uplink ports, supports complete security protection mechanism, perfect ACL/QoS policy, and flexible VLAN function, and is easy to manage and maintain.



Features

Hardware Features

• Provide 8/16/24 multi-spec port products; all ports have Gigabit wire speed forwarding capability to meet different user needs.
• The whole series supports the “Ethernet port + optical port” combination, which is convenient for users to group the network flexibly and meet the demand of various scenarios.
• Support under-voltage, over-voltage, over-current, overload, and over-temperature protection, providing users with a safer, more stable, and more reliable experience.
• Support surge, fast pulse, electrostatic protection, significantly extending the device’s service life.
• Complete LED indicator, easy for users to identify the device’s working status quickly.
• Adopt high quality wide temperature components to ensure stable operation of the device in residential, commercial, and light industrial environments.
• IP30 anti-oxidation metal housing, durable.




Software Features

• Support IEEE 802.1Q VLAN, so you can flexibly divide VLANs according to your needs.
• Supports voice VLANs and configures QoS parameters for voice data streams to improve transmission priority and ensure call quality.
• Support QoS, supporting three priority modes based on port, 802.1P and DSCP, and four queue scheduling algorithms: Equ, SP, WRR, and SP+WRR.
• ACLs are supported to provide flexible security access control policies by configuring matching rules, processing operations, and time permissions to filter packets.
• Support IGMP V1/V2/V3 multicast protocols and IGMP Snooping to meet the needs of multi-terminal HD video surveillance and video conference access.
• Support multicast VLAN, multicast filtering, efficient data transmission, saving network bandwidth and reducing network load.
• Support port monitoring, which makes a copy of the packets of the monitored port to the monitoring port to realize network monitoring.



Complete Security Protection

• Supports IP address, MAC address, VLAN, and port binding to filter packets.
• Supports ARP protection to protect against ARP spoofing and ARP flooding attacks, such as gateway spoofing and intermediate mythical attacks commonly found in LANs.
• IP source protection is supported to protect against illegal address spoofing, including MAC spoofing, IP spoofing, and MAC/IP spoofing.
• Supports DoS protection against Land Attack, Scan SYNFIN, Xmascan, Ping Flooding, and other attacks.
• Supports 802 .1X authentication, providing authentication for LAN computers and controlling the authorization status of controlled ports based on authentication results.
• Supports port security, stopping learning when the maximum number of MAC addresses is reached, preventing MAC address attacks, and controlling port network traffic.



Reliability Protection

• Support STP/RSTP/MSTP spanning tree protocol to eliminate layer 2 loops and realize link backup.
• Support ITU-T G.8032 ERPS ring function, based on traditional Ethernet MAC and bridge functions to achieve Ethernet ring network millisecond fast protection reversal.
• Support spanning tree security function to prevent devices in spanning tree network from various forms of malicious attacks.
• Support static convergence and dynamic convergence to effectively increase link bandwidth, achieve load balancing, link backup, and improve link reliability.



PoE Function (only for PoE models)

• PoE models support IEEE 802.3af/at PoE power supply standard to meet the demand for PoE power supply for security monitoring, teleconferencing system, wireless coverage, and other scenarios.
• Supports user-defined time period control of PoE port power supply in the web management interface.
• The web network management interface automatically identifies PoE port information.



Easy Operation

• Supports diverse management and maintenance methods such as Web-based network management, CLI commands (Console, Telnet), and SNMP (V1/V2/V3).
• Support HTTPS, SSL V3, TLSV1, SSH V1/V2, and other encryption methods for more secure management.
• Support RMON, system log, and port traffic statistics for network optimization and transformation.
• Support cable detection, Ping detection, and Tracert detection operations, making analyzing the failed grid nodes easy.
• Support LLDP, which is convenient for the network management systems to query and judge the communication status of the link.
• Supports CPU monitoring, memory monitoring, Ping detection, Tracert detection, and cable detection.



Technical Specifications

Model	CMS3200-16P2C
Port configuration	16x 10/100/1000M RJ45 2x 1G Combo 1x Console
Switch capacity	36Gbps/non-blocking
Forwarding rates	26.7Mpps
MAC Address	8k
Buffer Space	4M
Jumbo Frame	10Kb
PoE	IEEE802.3af/at, PIN: 1/2+, 3/6-
Input voltage	100~240Vac 50/60Hz (Rated); 90~264Vac 47Hz~63Hz ( Max.)
Power Consumption	<15W (PoE)
Power Protection	Under-voltage/over-voltage, over-current, overload, and over-temperature protection
Heat dissipation	Fans @6000RPM
Noise	<31dB
Working Temperature	-20ºC ~ 60ºC
Storage Temperature	-40ºC ~ 85ºC
Relative Humidity	5-95% (no condensation)
Installation	Rack-mounted 1U 19”
Dimension	440x270x43.6mm
Safety, EMC	Safety: EN60950, GB4943 EN 55022 Class A, FCC Part 15 Subpart B Class A IEC 61000-3-2 CLASS A, IEC 61000-3-3 CLASS A IEC 61000-4-2 Contact: ±6kV, Air: ±8kV Class A IEC 61000-4-4 Level4 IEC 61000-4-5 Power: Com ±6KV, Diff. ±6KV; UPT: Com ±4KV, diff.±2KV



Order Information

Model No.	Description
CMS3200-8T2S-AC	L2+, 8x 10/100/1000M RJ45, 2x 1Gb SFP, AC input
CMS3200-8P2S-AC	L2+, 8x 10/100/1000M RJ45 (PoE), 2x 1Gb SFP, AC input 150W
CMS3200-16T2C-AC	L2+, 16x 10/100/1000M RJ45, 2x 1Gb Combo, AC input
CMS3200-16P2C-AC	L2+, 16x 10/100/1000M RJ45 (PoE), 2x 1Gb Combo, AC input 280W
CMS3200-24T4C-AC	L2+, 24x 10/100/1000M RJ45, 4x 1Gb Combo, AC input
CMS3200-24P4C-AC	L2+, 24x 10/100/1000M RJ45 (PoE), 4x 1Gb Combo, AC input 400W
*DC input, AC+DC input customized
