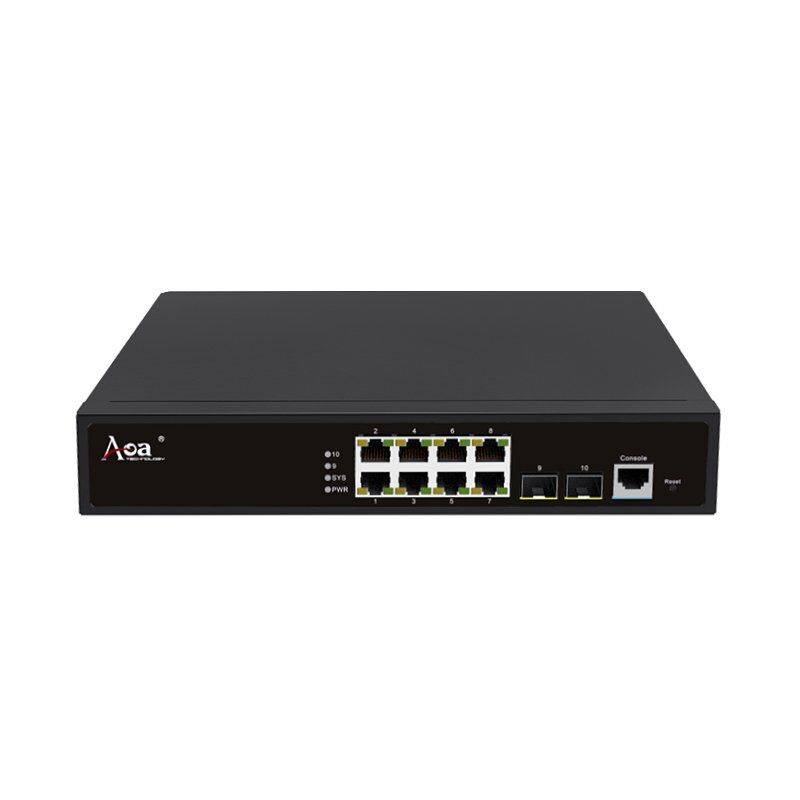

Managed Ethernet Switch
L2+ managed, 8×10/100/1000M RJ45 (PoE), 2x1Gb SFP
Share on
Overview
AOA Tech CMS3200 series L2+ managed Gigabit Ethernet switch adopts a new generation of high performance hardware and software platform to provide flexible and cost-effective full Gigabit access and uplink ports, supports complete security protection mechanism, perfect ACL/QoS policy, and flexible VLAN function, and is easy to manage and maintain.
Features
Hardware Features
Software Features
Complete Security Protection
Reliability Protection
PoE Function (only for PoE models)
Easy Operation
Technical Specifications
Model | CMS3200-8P2S |
Port configuration | 8x 10/100/1000M RJ45
2x 1G SFP 1x Console |
Switch capacity | 20Gbps/non-blocking |
Forwarding rates | 41.6 Mpps |
MAC Address | 8k |
Buffer Space | 4M |
Jumbo Frame | 10Kb |
PoE | IEEE802.3af/at, PIN: 1/2+, 3/6- |
Input voltage | 100~240Vac 50/60Hz (Rated); 90~264Vac 47Hz~63Hz ( Max.) |
Power Consumption | <10W (excluded PoE) |
Power Protection | Under-voltage/over-voltage, over-current, overload, and over-temperature protection |
Heat dissipation | Natural |
Working Temperature | -20ºC ~ 60ºC |
Storage Temperature | -40ºC ~ 85ºC |
Relative Humidity | 5-95% (no condensation) |
Installation | Rack-mounted 1U 19” |
Dimension | 266x200x43.6mm |
Safety, EMC | Safety: EN60950, GB4943
EN 55022 Class A, FCC Part 15 Subpart B Class A IEC 61000-3-2 CLASS A, IEC 61000-3-3 CLASS A IEC 61000-4-2 Contact: ±6kV, Air: ±8kV Class A IEC 61000-4-4 Level4 IEC 61000-4-5 Power: Com ±6KV, Diff. ±6KV; UPT: Com ±4KV, diff.±2KV |
Order Information
Model No. | Description |
CMS3200-8T2S-AC | L2+, 8x 10/100/1000M RJ45, 2x 1Gb SFP, AC input |
CMS3200-8P2S-AC | L2+, 8x 10/100/1000M RJ45 (PoE), 2x 1Gb SFP, AC input 150W |
CMS3200-16T2C-AC | L2+, 16x 10/100/1000M RJ45, 2x 1Gb Combo, AC input |
CMS3200-16P2C-AC | L2+, 16x 10/100/1000M RJ45 (PoE), 2x 1Gb Combo, AC input 280W |
CMS3200-24T4C-AC | L2+, 24x 10/100/1000M RJ45, 4x 1Gb Combo, AC input |
CMS3200-24P4C-AC | L2+, 24x 10/100/1000M RJ45 (PoE), 4x 1Gb Combo, AC input 400W |
*DC input, AC+DC input customized |
