IMC1100 100M Industrial Converter

Industrial Media Converter

10/100Base-T to 100Base-X

Share on

10/100M Industrial Media Converter



The IMC1100 series Industrial Media Converter is designed to extend the distance of a network by converting Fast Ethernet data between twisted pair cabling and multi-mode or single-mode fiber-optic cabling.

The IMC1100 features 1 x 100Base-FX fiber port and 1 x 10/100Base-TX twisted-pair port. The fiber optic port features SC connector and operating distance from 2km to 120km depending on different Model. The twisted-pair port has 1 x RJ-45 connector with a maximum operating distance of 100m.

The IMC1100 Industrial Ethernet Media Converter is designed to stand up to extreme temperature, surges, vibrations, and shocks found in industrial automation, government, military, oil & gas, mining and outdoor applications, such as traffic management, oil and gas pipelines.

The IMC1100 series enables real-time deterministic network operation, requires no configuration and will instantly operate as soon as you power it up. Additionally, they can be installed by DIN-rail or wall-mounted, allowing users to deploy any mix of network conversions required.



  • UTP to fiber media converter
  • RJ45 support auto MDI/MDI-X function
  • Auto-negotiation speed, half/full-duplex
  • Store-and-forward & Cut-thought working mode optional
  • Built-in LFP (Link-fault-pass-through) function
  • Jumbo frame: 9kbytes
  • Support wide operating temperature (-40 ˚C ~ +85 ˚C)
  • Wide-range redundant power design (12~56VDC)
  • Power polarity reverse protect
  • Overload current resettable fuse present
  • IP-40 protection
  • Provide EFT protection for Power line
  • Support Ethernet ESD protection
  • DIN-Rail and Wall-Mounted Installation
  • Low power consumption


Technical Specifications

Standards IEEE802.3 10Base-T

IEEE802.3u 100Base-TX

IEEE802.3x Flow control and back pressure

IEEE802.1d Spanning Tree

Performance Processing Type: Store and Forward, Cut-through

Back Bandwidth: 0.4Gbps

MAC Address Size: 2Kbit

Packet Buffer Size: 1Mbit

Time Delay: <10us

Frame: 9kbytes

Copper Port Data Rate: 10/100M

Connector: RJ45

Distance: 100m

Fiber Port Data Rate: 155M

Connector: SC as default, FC/ST Optional

Distance:  MMF 2km,SMF 20/40/80/100/120km,


LED indicators PWR1: ON=Power Connected

PWR2: ON= Power Connected

FL/A:  ON=Fiber Connected; Active=Data Transmitting

TL/A:  ON=Copper Connected; Active= Data Transmitting

100M:  ON=100M; OFF=10M

Power Input Voltage: 12~56 VDC, redundant power inputs

Power Consumption: ≤5W

Protection: Overload Current; Reverse Polarity

Connector: Terminal Block

Environment Operating Temperature: –40 ˚C ~ +85 ˚C

Storage Temperature: -40 ˚C ~ +95 ˚C

Relative Humidity: 5-95% (no condensation)

Physical Characteristics Housing: IP40 Protection, Aluminum Alloy

Installation: DIN-rail mounting, wall mounting(with optional kit)

Dimension: 115*81*35mm(device); 220*175*73mm(packing)

Weight: 0.30kg(device); 0.43kg(device with packing)


 Order Information

Model Description

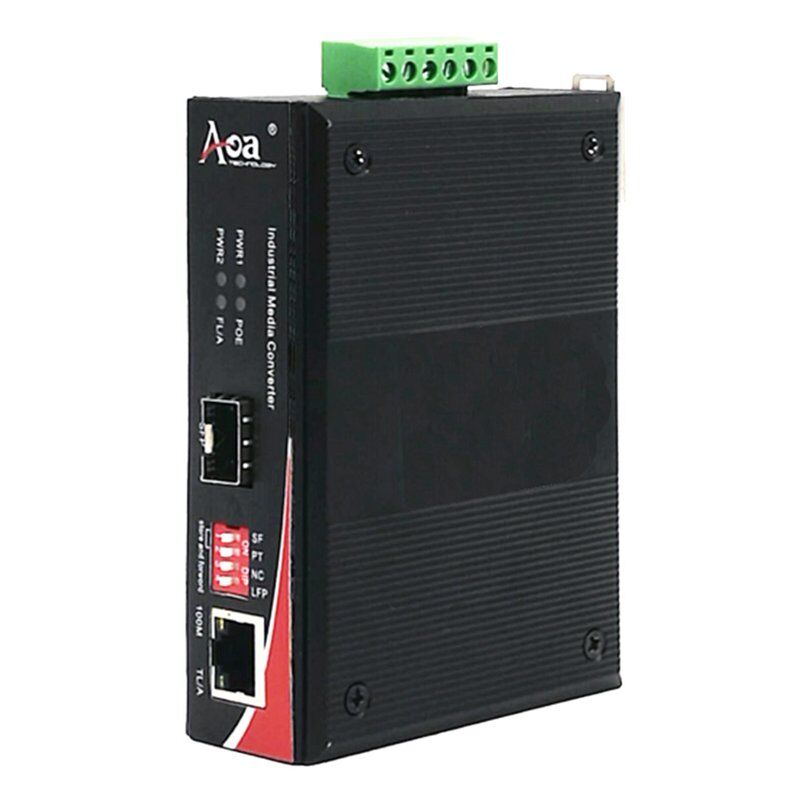

IMC1100-SFP 10/100M,SFP Slot
IMC1100-M05 10/100M,MMF,850nm,SC,550m

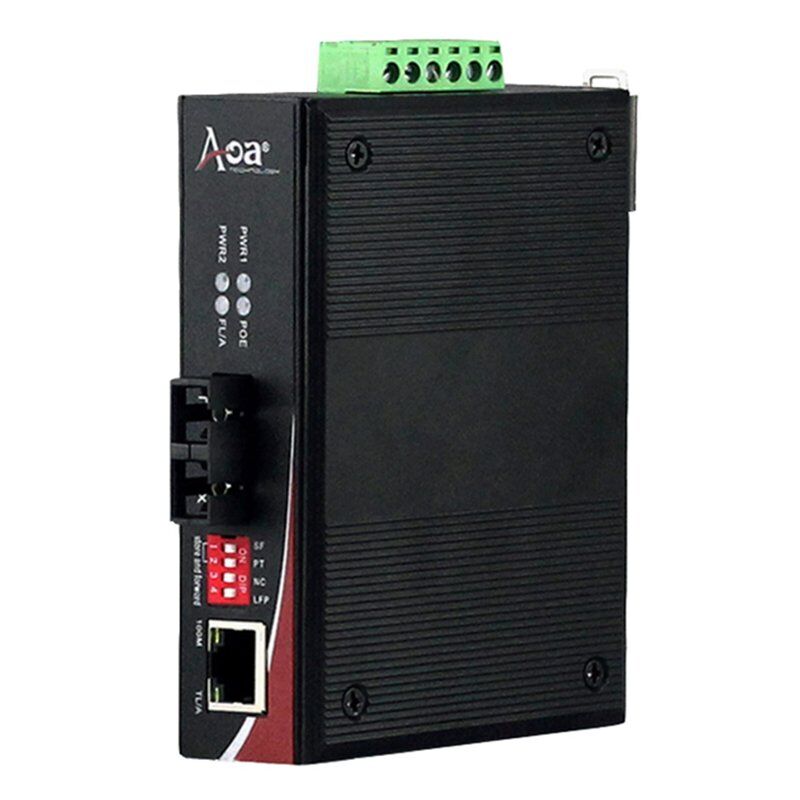

IMC1100-S20 10/100M,SMF,1310nm,SC,20km
IMC1100-A20 10/100M,Bi-di,TX1310/RX1550nm,SC,20km
IMC1100-B20 10/100M,Bi-di,TX1550/RX1310nm,SC,20km
Note: AC/DC power supply purchased separately


Related Products

Model Description
DIN-rail Power supply
HDR-15-24 DIN-rail 15W, 85~264Vac input, 24V0.63A output
SFP Module
SFP-M1585L-02I 155M MM 850nm LC 550m DDM, Industrial Grade
SFP-M1513L-02I 155M MM 1310nm LC 2km DDM, Industrial Grade
SFP-S1513L-20I 155M SM 1310nm LC 20km DDM, Industrial Grade
SFP-S1535L-20I 155M SM TX1310/RX1550nm LC 20km DDM, Industrial Grade
SFP-S1553L-20I 155M SM TX1550/RX1310nm LC 20km DDM, Industrial Grade
Long distance 40/60/80/100/120km is available
Installation Accessories
TK12 Wall-mounted kits, 118*18*16mm, φ3.5mm L=12mm
A02 Side DIN-rail mounted kits, 72.7*70*8.5mm, φ3.5mm L=6mm
CK01 Rack-mounted bracket with Din-rail, 483*215*130mm
