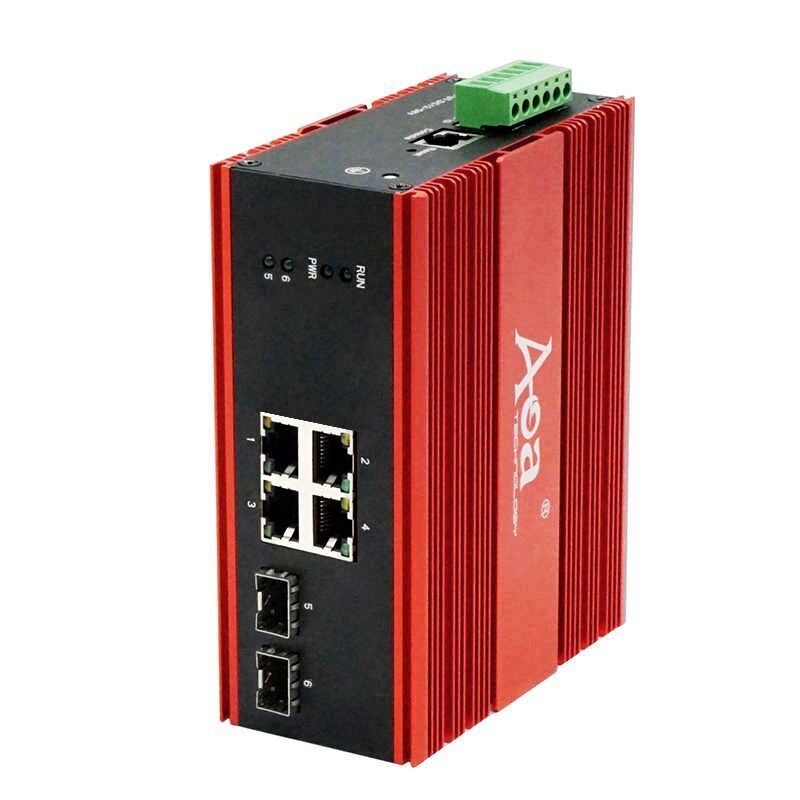

IMS3200-4T2S L2,1000Mb

Industrial Managed Switch

L2 managed, 4×10/100/1000Base-TX to 2×100/1000Base-FX

Share on

Industrial Managed Switch

L2 managed, 4×10/100/1000Base-TX to 2×100/1000Base-FX



Overview

IMS3200 Industrial Managed Switch are fully managed L2 switches, adopt store-forward architecture, fan-less, and energy-saving design, providing 4/8/12-port 10/100/1000M RJ45 port and 2/4/6/12-port 1000/100M SFP port. Full-series design with protection against lightning, anti-static, and operate in -40°C~85°C for harsh environments; such as industrial automation, public security, power system, intelligent transportation systems (ITS), shipping, mining, and water conservancy fields.

Features

  • Support STP/RSTP/MSTP, ERPS Fast ring protocol
  • Supports flow control, loop protection, link aggregation, storm suppression, mirroring, and DDM
  • Support IEEE802.1Q VLAN, QinQ VLAN, protocol VLAN, Voice VLAN, Private VLAN, GVRP
  • Support IGMP Snooping, MLD Snooping, suit for HD Video surveillance and video conference
  • Support Web, CLI, SNMP (V1/V2/V3), Telnet management
  • Support HTTPS、SSH encryption, making management more secure
  • Supports RMON, system logs, and traffic statistics to facilitate network optimization
  • Supports LLDP, making network maintenance simple
  • Support DHCP Snooping, QoS, ACL
  • Support 802.1X certification, Radius and Tacacs+ security management
  • Supports CPU monitoring, Ping detection, Traceroute detection
  • Support PoE Management
  • Providing 6/10/14/16/24-port products, 56G switch capacity
  • Support 1000/100M Auto-negotiation on SFP Port
  • Adopt Industrial Level-4 design, support EFT/ESD/Surge projection
  • Working Temperature -40~85°C
  • 12~58Vdc dual power input
  • Complete LED indicators to identify the working status quickly
  • IP40 anti-oxidation aluminum alloy, weight lighter and head release rapidly


Technical Specifications

Model 6/10-port 12/14-port 16/24-port
Performance
Standard IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.1Q VLAN, IEEE802.1d, IEEE802.1w, IEEE802.1s
Forwarding mode Store and Forward
Switch Capacity 56Gbps/non-blocking
Packet forwarding Rate 1.488Mpps*N ( N=1G port Numbers)
MAC Address 8k
Buffer 4M
Jumbo Frame 10Kb
Ports
Copper Port 10/100/1000M RJ45

Cat5/cat6 100M

Fiber Port 1000/100M SFP Slot

OM1/OM2 550m, OS1/OS2 up to 120km

Console RS232 ( RJ45 )
PoE
Standard IEEE802.3af/at
Pin Assignment 1/2+, 3/6-
PoE Budget ≤30W each port
Electrical characteristics
Power Input 12~58Vdc (non-PoE), 44~58Vdc (PoE)
Power Consumption <8W <10W <20W
Power Connector Terminal Block, dual input, reverse connection protection
Reverse connection support
Relay support
Physical characteristics
Housing Aluminum Alloy, IP40 protection
Installation DIN rail (Default), Wall-mounted, Rack mounted (Optional)
Heat Release Natural
Size 138x107x56mm 170x120x60mm 170x120x74mm
Environment
Working Temperature -40°C ~ 85°C
Storage temperature -40°C ~ 85°C
Relative Humidity 5%-95% (no condensation)



Order Information

Model No. Description
IMS3200-4T2S L2, 4x 10/100/1000M RJ45, 2x SFP
IMS3200-4P2S L2, 4x 10/100/1000M PoE, 2x SFP
IMS3200-8T2S L2, 8x 10/100/1000M RJ45, 2x SFP
IMS3200-8P2S L2, 8x 10/100/1000M PoE, 2x SFP
IMS3200-8T4S L2, 8x 10/100/1000M RJ45, 4x SFP
IMS3200-8P4S L2, 8x 10/100/1000M PoE, 4x SFP
IMS3200-8T6S L2, 8x 10/100/1000M RJ45, 6x SFP
IMS3200-8P6S L2, 8x 10/100/1000M PoE, 6x SFP
IMS3200-12T4S L2, 12x 10/100/1000M RJ45, 4x SFP
IMS3200-12T12S L2, 12x 10/100/1000M RJ45, 12x SFP
Notes: SFP, AC-DC power supply, wall-mounted, Rack-mounted kits need to order additionally



Related Products

SFP modules

Model No. Description
SFP-M1285L-05I SFP 1.25G MM 850nm LC 550m DDM, Industrial Grade
SFP-S1213L-20I SFP 1.25G SM 1310nm LC 20km DDM, Industrial Grade
SFP-B1235L-20I SFP 1.25G SM TX1310/RX1550nm LC 20km DDM, Industrial Grade
SFP-B1253L-20I SFP 1.25G SM TX1550/RX1310nm LC 20km DDM, Industrial Grade
Notes: 40/60/80km available



DIN rail Power Supply

Model No. Description
HDR-15-24 DIN rail 15W, 85~264Vac input, 24Vdc 0.63A output
HDR-30-24 DIN rail 36W, 85~264Vac input, 24Vdc 1.5A output
HDR-60-24 DIN rail 60W, 85~264Vac input, 24Vdc 2.5A output
NDR-75-48 DIN rail 75W, 90~264Vac input, 48Vdc 1.6A output
NDR-120-48 DIN rail 120W, 90~264Vac input, 48Vdc 2.5A output
NDR-240-48 DIN rail 240W, 90~264Vac input, 48Vdc 5A output
NDR-480-48 DIN rail 480W, 90~264Vac input, 48Vdc 10A output
