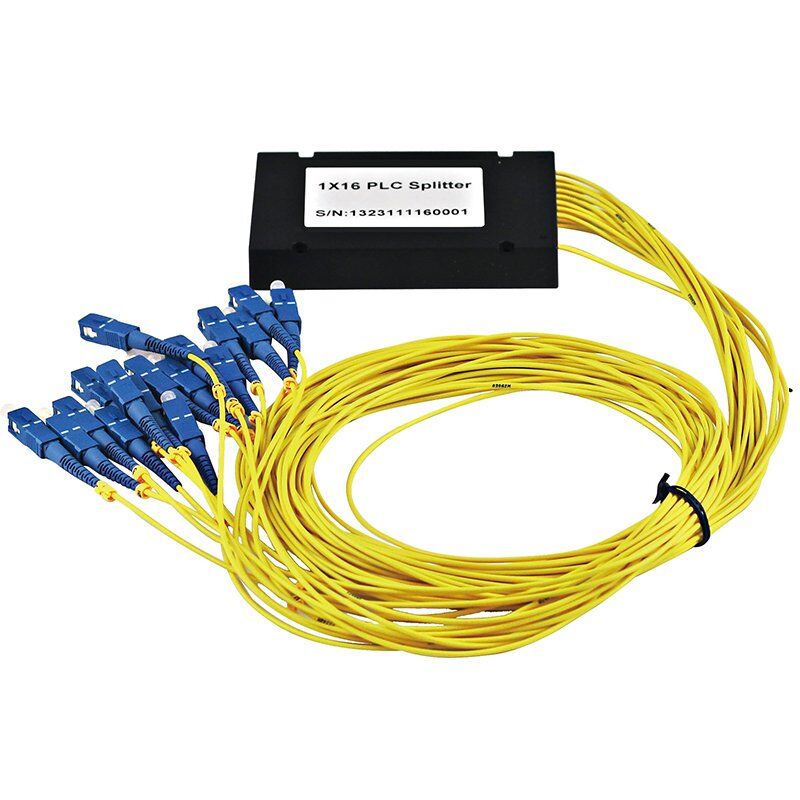

PLC Splitter 1×16 ABS Box

Overview

The AOA single-mode Planar Lightwave Circuit Splitter (PLCS) is developed based on unique silica glass waveguide process with reliable precision aligned fiber pigtail in a miniature package, it provides a low cost light distribution solution with small form factor and high reliability. Compliant with Telcordia GR-1209, Telcordia GR-1221, IEC 61753-1, IEC 61755-1 Grade B and EIA/TIA 598 standard.

The 1×16 ABS box module type PLC Splitters have high performance in terms of low insertion loss, low PDL, high return loss, and excellent uniformity over a wide wavelength range from 1260nm to 1650nm and working in temperatures from -40°C to +80°C. The PLC Optical Splitters have standard configurations of 1×2, 1×4, 1×8, 1×16, 1×32, and 1×64 configurations, as well as customized structures of 2×2, 2×4, 2×8, 2×16, 2×32.

Features

• Compact design
• Low insertion loss and low PDL
• High reliability
• High channel counts
• Wide wavelength range
• Large operating temperature range
• Customized packaging and configuration

Applications

• FTTx Systems
• LAN, WAN and Metro Networks
• Analog/Digital Passive Optical Networks
• CATV Networks
• Other applications in fiber optic systems

Technical Specifications

1. Specifications may change without notice
2. At the input and output of the splitter with connectors, each thread come with a numerical identification that details the order

Order Information

Example: PLC-A-116-2-3-1-1: ABS Box Type 1×16 G657A 2.0mm 1M SC/UPC
