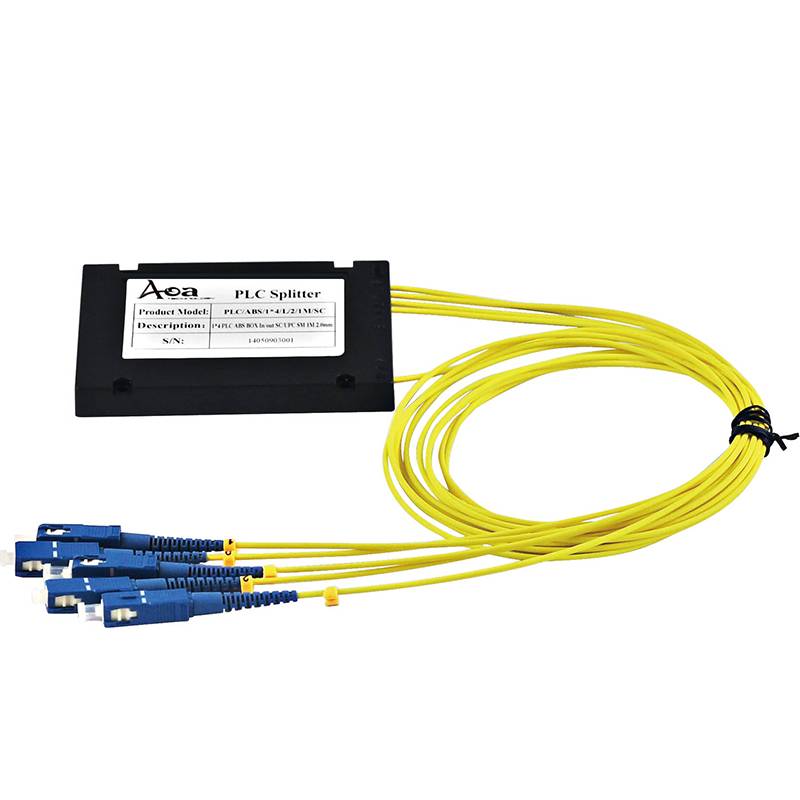

PLC Splitter 1×4 ABS Box
Overview
The AOA single-mode Planar Lightwave Circuit Splitter (PLCS) is developed based on unique silica glass waveguide process with reliable precision aligned fiber pigtail in a miniature package, it provides a low cost light distribution solution with small form factor and high reliability. Compliant with Telcordia GR-1209, Telcordia GR-1221, IEC 61753-1, IEC 61755-1 Grade B and EIA/TIA 598 standard.
The 1×4 ABS box module type PLC Splitters have high performance in terms of low insertion loss, low PDL, high return loss, and excellent uniformity over a wide wavelength range from 1260nm to 1650nm and working in temperatures from -40°C to +80°C. The PLC Optical Splitters have standard configurations of 1×2, 1×4, 1×8, 1×16, 1×32, and 1×64 configurations, as well as customized structures of 2×2, 2×4, 2×8, 2×16, 2×32.
Features
- Compact design
- Low insertion loss and low PDL
- High reliability
- High channel counts
- Wide wavelength range
- Large operating temperature range
- Customized packaging and configuration
Applications
- FTTx Systems
- LAN, WAN and Metro Networks
- Analog/Digital Passive Optical Networks
- CATV Networks
- Other applications in fiber optic systems
Technical Specifications
| Type | Parameters |
| Channel Number | 1×4 |
| Operating Wavelength (nm) | 1260-1650 |
| Fiber Type | G657A1 (default) |
| Fiber Length (m) | 1 Meter (default) |
| Connector Type | Without connector, SC/UPC, SC/APC |
| Additional Loss Per Connector (dB) | ≤0.25 |
| Insertion Loss (dB) | without connector ≤7.2; with connector ≤7.4 |
| Loss Uniformity (dB) | ≤0.7 |
| Polarization Dependent Loss (dB) | ≤0.2 |
| Return Loss (dB) | UPC ≥50 APC ≥55 |
| Directivity (dB) | ≥55 |
| Package Dimension (mm) | 100x80x10 |
| Operating Temperature (°C) | -40~85 |
| Storage Temperature (°C) | -40~85 |
| Relative Humidity | up to 82% |
- Specifications may change without notice
- At the input and output of the splitter with connectors, each thread come with a numerical identification that details the order
Order Information
| Type | Package | Port | Fiber Type | Input Pigtail | Fiber Length | Connector |
| PLC | X | XXX | X | X | X | X |
| B=Bare Fiber
S=Steel Type A=ABS Box M=Modular R=Rack-Mount C=Customized |
102=1×2
104=1×4 108=1×8 116=1×16 132=1×32 164=1×64 202=2×2 204=2×4 108=1×8 116=1×16 132=1×32 164=1×64 |
1=G652D
2=G657A C=Customized |
1=Bare fiber
2=900μm 3=2.0mm 4=3.0mm |
1=1M
2=1.2M 3=1.5M C=Customized |
0=Without Connector
1=SC/UPC 2=SC/APC 3=FC/UPC 4=FC/APC 5=LC/UPC 6=LC/APC C=Customized
|
Example: PLC-A-104-2-3-1-1: ABS Box Type 1×4 G657A 2.0mm 1M SC/UPC
