Fiber Optic PLC Splitter

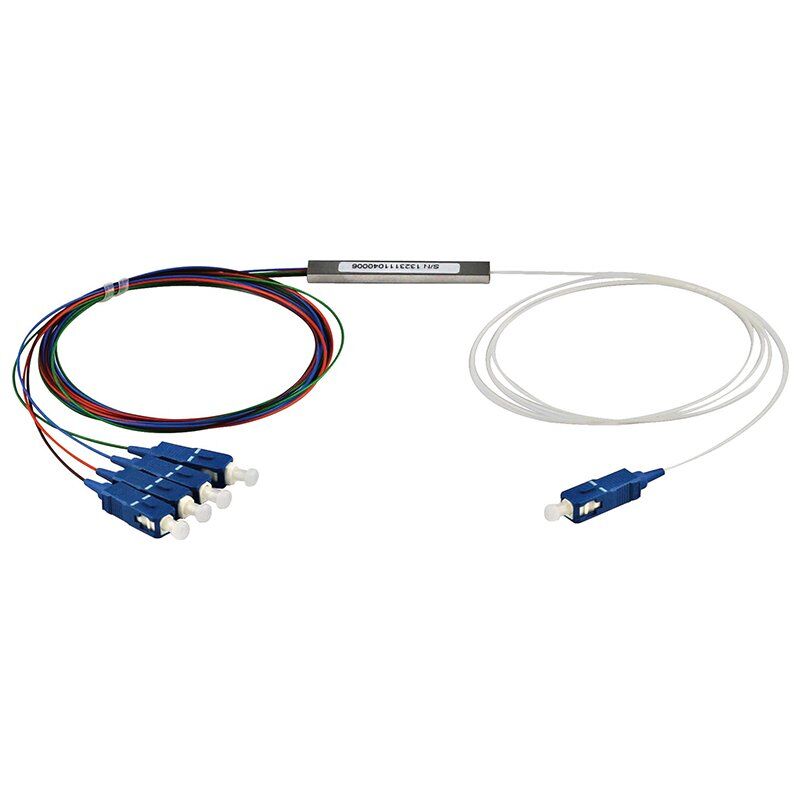

1*4 Steel tube PLC Splitter
Share on
Overview
The AOA single-mode Planar Lightwave Circuit Splitter (PLCS) is developed based on unique silica glass waveguide process with reliable precision aligned fiber pigtail in a miniature package, it provides a low cost light distribution solution with small form factor and high reliability. Compliant with Telcordia GR-1209, Telcordia GR-1221, IEC 61753-1, IEC 61755-1 Grade B and EIA/TIA 598 standard.
The 1×4 Steel tube PLC Splitter devices have high performance in terms of low insertion loss, low PDL, high return loss, and excellent uniformity over a wide wavelength range from 1260nm to 1650nm and working in temperatures from -40°C to +80°C. The PLC Optical Splitters have standard configurations of 1×2, 1×4, 1×8, 1×16, 1×32, and 1×64 configurations, as well as customized structures of 2×2, 2×4, 2×8, 2×16, 2×32.
Features
Applications
Technical Specifications
Type | Parameters |
Channel Number | 1×4 |
Operating Wavelength (nm) | 1260-1650 |
Fiber Type | G657A1 (default) |
Fiber Length (m) | 1 Meter (default) |
Connector Type | Without connector, SC/UPC, SC/APC |
Additional Loss Per Connector (dB) | ≤0.25 |
Insertion Loss (dB) | without connector ≤7.2; with connector ≤7.4 |
Loss Uniformity (dB) | ≤0.7 |
Polarization Dependent Loss (dB) | ≤0.2 |
Return Loss (dB) | UPC ≥50 APC ≥55 |
Directivity (dB) | ≥55 |
Package Dimension (mm) | Bare: 40x4x4 Fan-Out: 60x7x4 |
Operating Temperature (°C) | -40~85 |
Storage Temperature (°C) | -40~85 |
Relative Humidity | up to 82% |
Order Information
Type | Package | Port | Fiber Type | Input Pigtail | Fiber Length | Connector |
PLC | X | XXX | X | X | X | X |
B=Bare Fiber S=Steel Type A=ABS Box M=Modular R=Rack-Mount C=Customized | 102=1×2 104=1×4 108=1×8 116=1×16 132=1×32 164=1×64 202=2×2 204=2×4 108=1×8 116=1×16 132=1×32 164=1×64 | 1=G652D 2=G657A C=Customized | 1=Bare fiber 2=900μm 3=2.0mm 4=3.0mm | 1=1M 2=1.2M 3=1.5M C=Customized | 0=Without Connector 1=SC/UPC 2=SC/APC 3=FC/UPC 4=FC/APC 5=LC/UPC 6=LC/APC C=Customized
|
Example: PLC-S-104-2-2-1-1: Steel Type 1×4 G657A 0.9mm 1M SC/UPC
