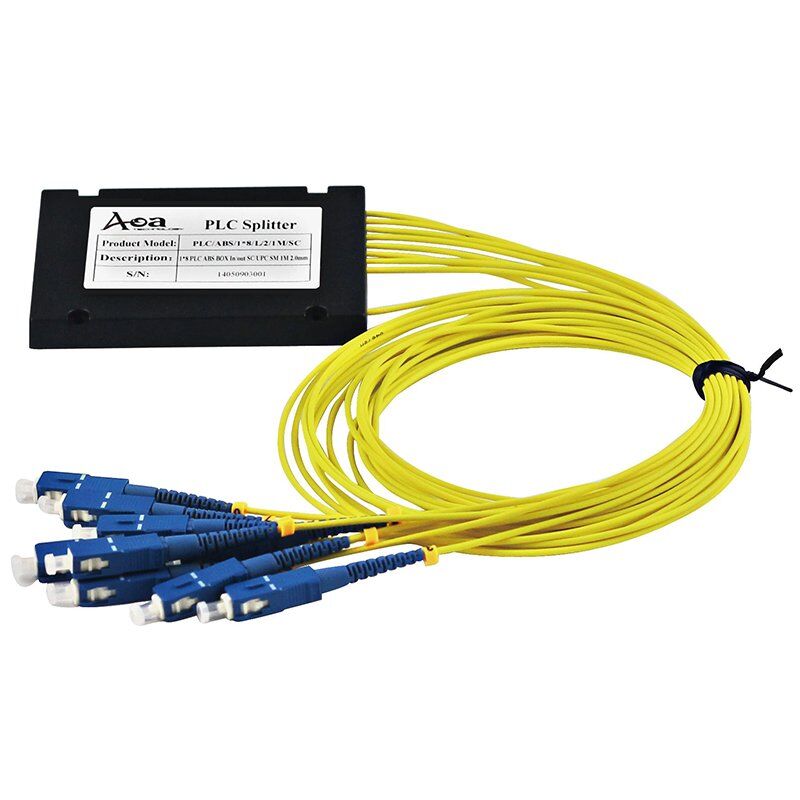

PLC Splitter 1×8 ABS Box



Overview

The AOA single-mode Planar Lightwave Circuit Splitter (PLCS) is developed based on unique silica glass waveguide process with reliable precision aligned fiber pigtail in a miniature package, it provides a low cost light distribution solution with small form factor and high reliability. Compliant with Telcordia GR-1209, Telcordia GR-1221, IEC 61753-1, IEC 61755-1 Grade B and EIA/TIA 598 standard.

The 1×8 ABS box module type PLC Splitters have high performance in terms of low insertion loss, low PDL, high return loss, and excellent uniformity over a wide wavelength range from 1260nm to 1650nm and working in temperatures from -40°C to +80°C. The PLC Optical Splitters have standard configurations of 1×2, 1×4, 1×8, 1×16, 1×32, and 1×64 configurations, as well as customized structures of 2×2, 2×4, 2×8, 2×16, 2×32.



Features

• Compact design
• Low insertion loss and low PDL
• High reliability
• High channel counts
• Wide wavelength range
• Large operating temperature range
• Customized packaging and configuration



Applications

• FTTx Systems
• LAN, WAN and Metro Networks
• Analog/Digital Passive Optical Networks
• CATV Networks
• Other applications in fiber optic systems

Technical Specifications

Type	Parameters
Channel Number	1×8
Operating Wavelength (nm)	1260-1650
Fiber Type	G657A1 (default)
Fiber Length (m)	1 Meter (default)
Connector Type	Without connector, SC/UPC, SC/APC
Additional Loss Per Connector (dB)	≤0.25
Insertion Loss (dB)	without connector ≤10.3; with connector ≤10.5
Loss Uniformity (dB)	≤1.0
Polarization Dependent Loss (dB)	≤0.25
Return Loss (dB)	UPC ≥50; APC ≥55
Directivity (dB)	≥55
Package Dimension (mm)	100x80x10
Operating Temperature (°C)	-40~85
Storage Temperature (°C)	-40~85
Relative Humidity	up to 82%

1. Specifications may change without notice
2. At the input and output of the splitter with connectors, each thread come with a numerical identification that details the order



Order Information

Type	Package	Port	Fiber Type	Input Pigtail	Fiber Length	Connector
PLC	X	XXX	X	X	X	X
	B=Bare Fiber S=Steel Type A=ABS Box M=Modular R=Rack-Mount C=Customized	102=1×2 104=1×4 108=1×8 116=1×16 132=1×32 164=1×64 202=2×2 204=2×4 108=1×8 116=1×16 132=1×32 164=1×64	1=G652D 2=G657A C=Customized	1=Bare fiber 2=900μm 3=2.0mm 4=3.0mm	1=1M 2=1.2M 3=1.5M C=Customized	0=Without Connector 1=SC/UPC 2=SC/APC 3=FC/UPC 4=FC/APC 5=LC/UPC 6=LC/APC C=Customized

Example: PLC-A-108-2-3-1-1: ABS Box Type 1×8 G657A 2.0mm 1M SC/UPC
