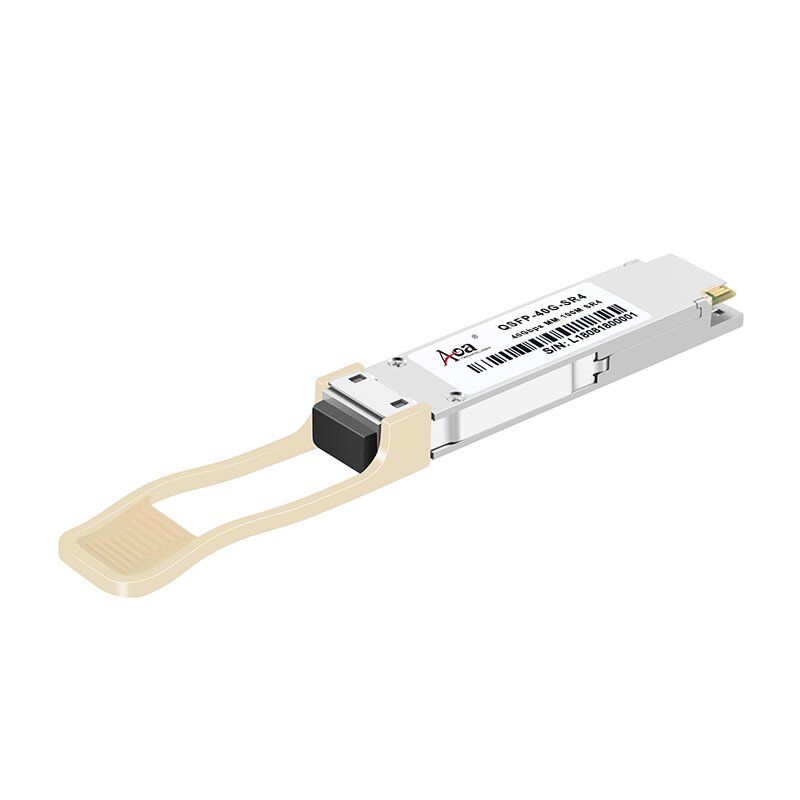

QSFP-40G-SR4

40Gbps QSFP+ SR4 Transceiver, MM, 850nm, 100M/300M



Features

• High Channel Capacity: 40 Gbps per module
• Transmission data rate up to 11.2Gbps per channel
• Single MTP/MPO connector receptacle
• High Reliability 850nm VCSEL technology
• Maximum link length of 100m links on OM3-150 MMfiber Or 150m links on OM4 Multi-mode fiber / Max. 300m over OM3-300 MM Fiber
• Hot Pluggable QSFP+ form factor
• Real Time Digital Diagnostic Monitoring
• Power Consumption < 0.7W
• Single +3.3V power supply
• Compatible with RoHS
• Commercial operating case temperature: 0 to +70°C



Application

• 40GB Ethernet links
• Infiniband QDR, DDR and SDR
• 40G Telecom connections



Standard

• Compliant withIEEE 802.3ba
• Compliant with QSFP+MSA
• Compliant withSFF-8436



Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage	Vcc	-0.5	3.6	V
Storage Temperature	Ts	-20	+85	°C
Operating Humidity	–	5	95	%



Recommended Operating Conditions

Parameter	Symbol	Min	Typical	Max	Unit
Operating Case Temperature (Commercial)	Tc	0		+70	°C
Power Supply Voltage	Vcc	3.135	3.3	3.465	V
Power Supply Current	ICC			450	mA
Power Consumption	Pdiss			0.7	W
Aggregate Bit Rate	BRAVE		41.25		Gbps
Data Rate,each Lane	BRAVE		10.3125	11.2	Gbps
Transmission Distance	MMF	–	100	–	m
Transmission Distance	MMF		300		m



Ordering information

Part. No	Specifications
	Pack	Rate (Gbps)	Tx (nm)	Po (dBm)	RX	Sen (dBm)	Temp (℃)	Reach  (km)	DDM
QSFP-40G-SR4 (100M)	QSFP+	41.25G	DFB	-7.6~2.4	PIN	＜-9.5	0~70	100	Y
QSFP-40G-SR4 (300M)	QSFP+	41.25G	DFB	-7.6~2.4	PIN	＜-9.9	0~70	300	Y
