Fiber Patch Panel
Rack Mounted Slide Type

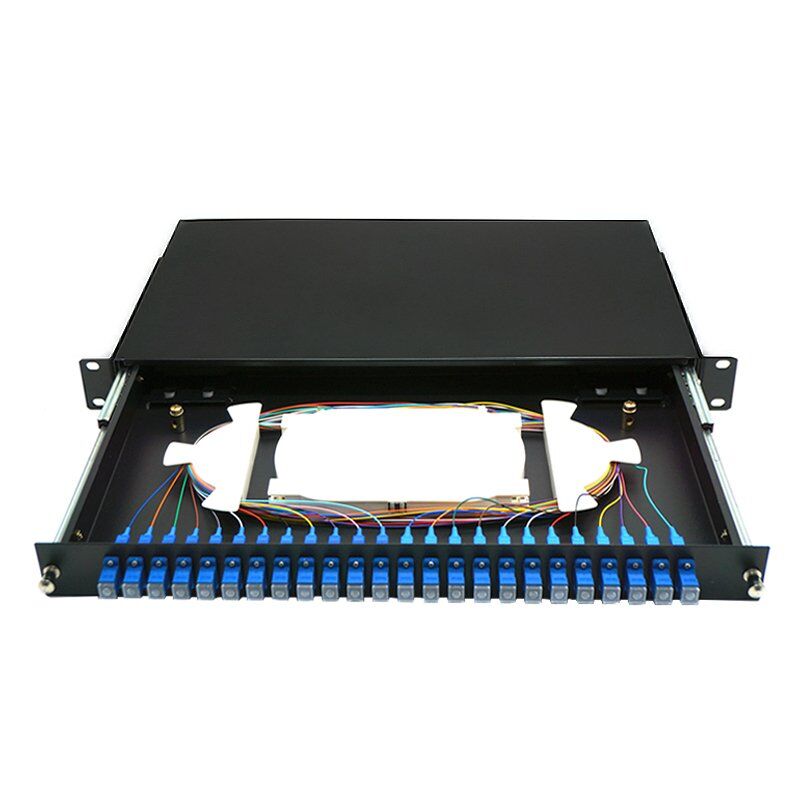

AOA Tech RMS Series is a Sliding Type of Rack Mount Slide Fiber Patch Panel also called Fiber Terminal Box, ranging from 12 ports to 144 ports. It is suitable for use in telecommunication networks, central office optical cable systems, and premise fiber networks. One cabinet design provides OSP cable fibers and pigtail splicing, patch cords termination, and storage. Each Terminal Box can fully load with panels, adapters, splices trays, and accessories and is ready for installation. The slide design and Modular Adapter Panel are easy to Installation, Inspection, and Testing.
|Model No.||Dimension (mm)||Max Capacity (Cores)||Remark|

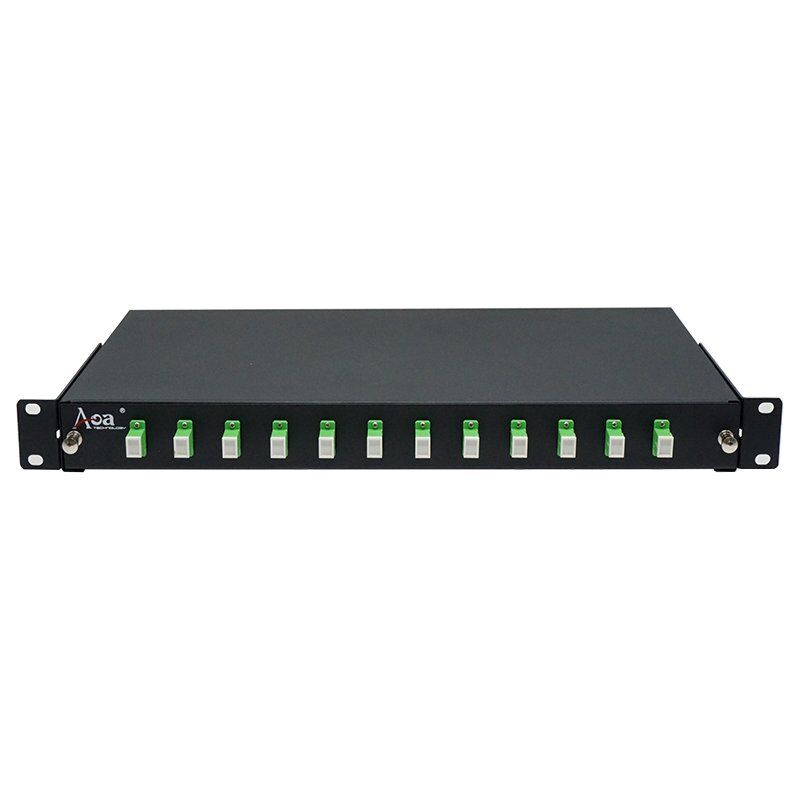

|RMS-1U12||430 x 250 x 44.5(1U)||12||The case body is made from cold rolled steel plate, and the surface use the technique of electrostatic spraying, available for the installation of FC, SC, ST, LC adapters.|

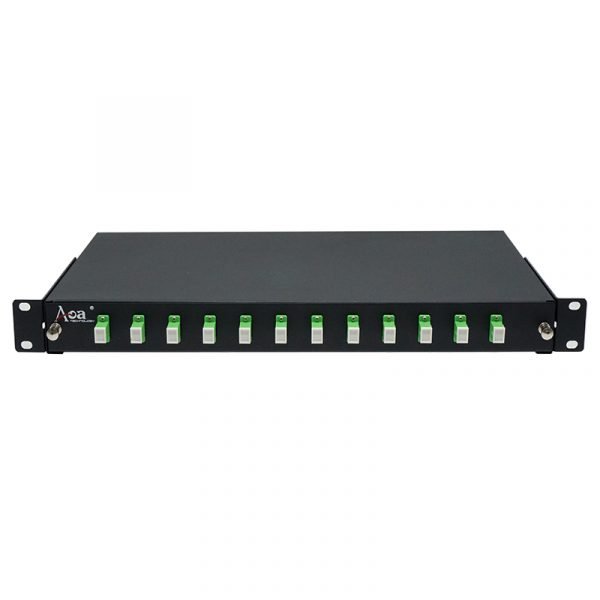

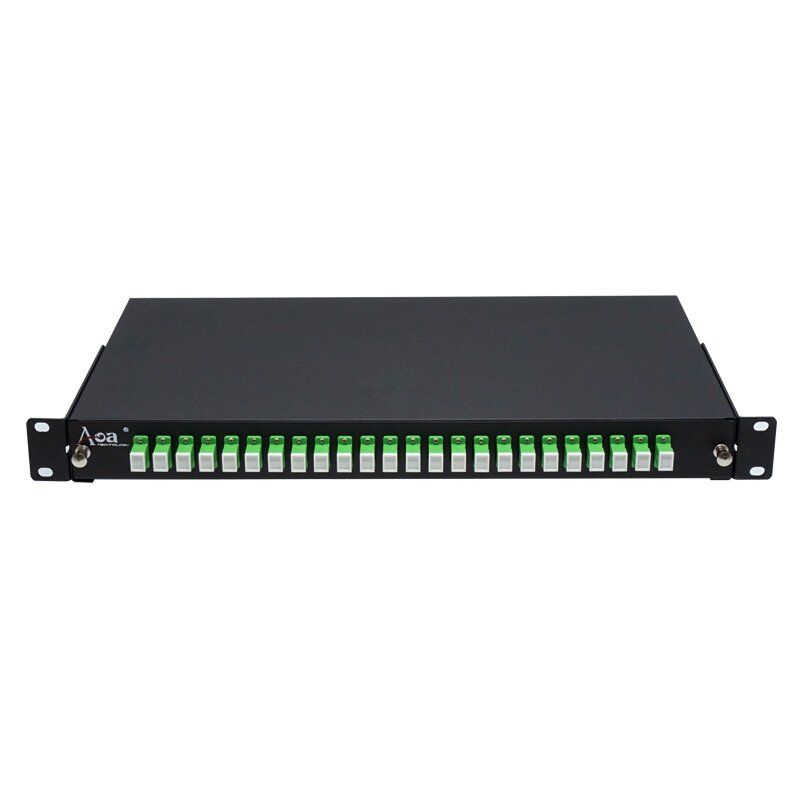

|RMS-1U24||430 x 250 x 44.5(1U)||24|
|RMS-2U48||430 x 250 x 89(2U)||48|
|RMS-3U72||430 x 250 x 133.5(3U)||72|
|RMS-4U96||430 x 250 x 178(4U)||96|
|RMS-4U144||430 x 250 x 178(4U)||144|
