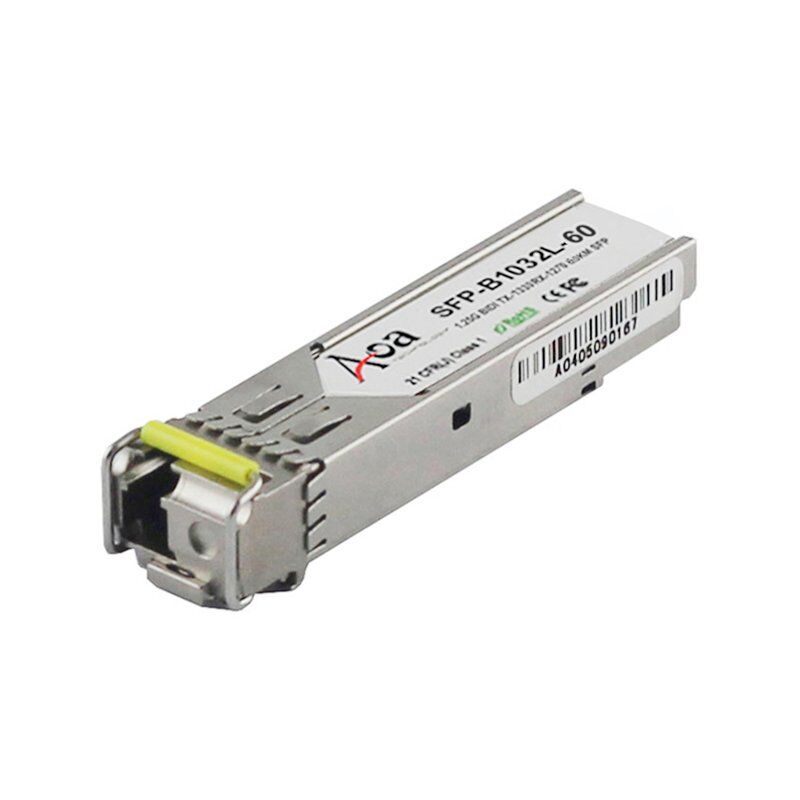

SFP-B1032L-60 10G SFP Module Bidi 60KM

Optical SFP Module

10Gbps SFP+ Transceiver Bi-Di TX1330/RX1270nm 60KM LC

Share on


10Gbps SFP+ Transceiver Bi-Di TX1330/RX1270nm 60KM LC



  • Supports up to 10.7Gbps bit rates
  • 1330nm DFB laser and APD photodiode, Up to 60km for SMF transmission
  • Compliant with SFP+ MSA and SFF-8472 with single LC receptacle
  • Hot-pluggable SFP+ footprint
  • Real Time Digital Diagnostic Monitoring
  • Single +3.3V power supply
  • Compatible with RoHS
  • Operating case temperature: Commercial: 0℃ to +70℃   Industrial: -40℃ to +85℃



  • 10Gbps Optical systems
  • 10GBASE-LR at 10.3125Gbps
  • 10GBASE-LW at 9.953Gbps
  • LTE systems
  • Other Optical links



  • Compliant with MSA SFP specification(SFF-8431, SFF-8432, SFF-8472)
  • Compliant with IEC
  • Compliant with IEEE 802.3ae



The SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 60km transmission distance with SMF.

The transceiver consists of three sections: a DFB laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.


Absolute Maximum Ratings

Parameter Symbol Min Max Unit
Supply Voltage Vcc 0 4 V
Storage Temperature Ts -40 +85 °C
Operating Humidity 5 85 %


Recommended Operating Conditions

Parameter Symbol Min Typical Max Unit
Operating Case Temperature Standard Tc 0 +70 °C
Industrial -40 +85 °C
Power Supply Voltage Vcc 3.135 3.30 3.465 V
Power Supply Current Icc 450 mA
Data Rate 10.3 11.3 Gbps
Transmission Distance 60 km


Ordering information

Model No. Product Description
SFP-B1032L-60 10Gbps, TX1330/RX1270, LC, 60km, 0°C~+70°C, with DDM
SFP-B1032L-60I 10Gbps, TX1330/RX1270, LC, 60km, -40°C~+85°C, with DDM
