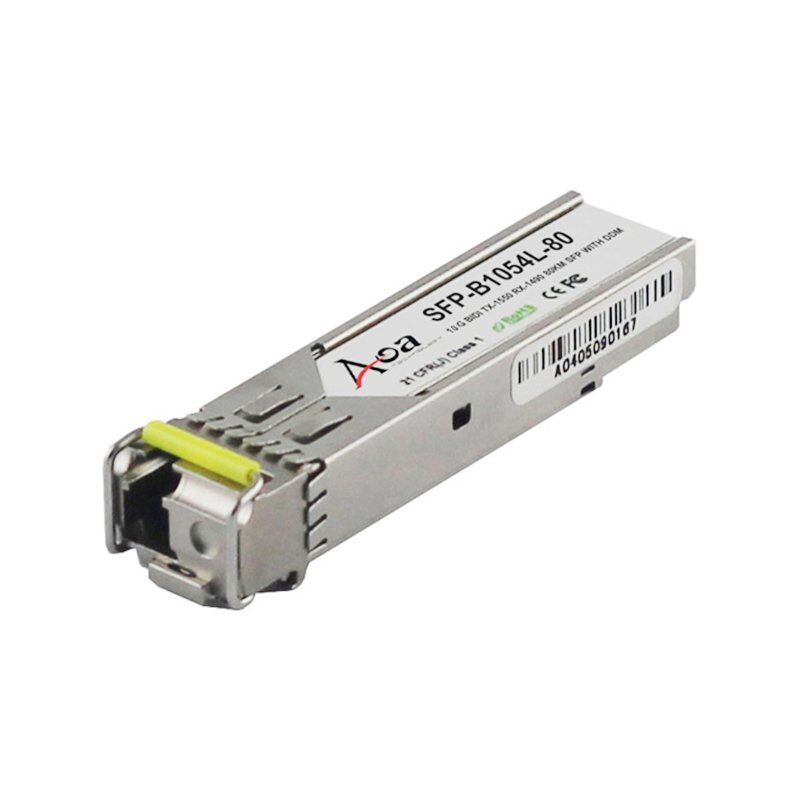

SFP-B1054L-80 10G SFP Module Bidi 80KM
Optical SFP Module
10Gbps SFP+ Transceiver Bi-Di TX1550/RX1490nm 80KM LC
Share on
SFP-B1054L-80
10Gbps SFP+ Transceiver Bi-Di TX1550/RX1490nm 80KM LC
Features
- Supports up to 10.7Gbps bit rates
- 1550nm EML laser and APD receiver, Up to 80km for SMF transmission
- Compliant with SFP+ MSA and SFF-8472 with single LC receptacle
- Hot-pluggable SFP+ footprint
- Real Time Digital Diagnostic Monitoring
- Single +3.3V power supply
- Compatible with RoHS
- Operating case temperature: Commercial: 0℃ to +70℃ Industrial: -40℃ to +85℃
Application
- 10Gbps Optical systems
- LTE systems
- Other Optical links
Standard
- Compliant with MSA SFP specification(SFF-8431, SFF-8432, SFF-8472)
- Compliant with IEC
- Compliant with IEEE 802.3ae
Description
The SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 80km transmission distance with SMF.
The transceiver consists of three sections: a EML laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
| Supply Voltage | Vcc | -0.3 | 4 | V |
| Storage Temperature | Ts | -40 | +85 | °C |
| Operating Humidity | – | 5 | 85 | % |
Recommended Operating Conditions
| Parameter | Symbol | Min | Typical | Max | Unit | |
| Operating Case Temperature | Standard | Tc | 0 | +70 | °C | |
| Industrial | -40 | +85 | °C | |||
| Power Supply Voltage | Vcc | 3.135 | 3.30 | 3.465 | V | |
| Power Supply Current | Icc | 450 | mA | |||
| Data Rate | 9.95 | 10.3 | 11.1 | Gbps | ||
| Transmission Distance | 80 | km | ||||
Ordering information
| Model No. | Product Description |
| SFP-B1054L-80 | 10Gbps, TX1550/RX1490, LC, 80km, 0°C~+70°C, with DDM |
| SFP-B1054L-80I | 10Gbps, TX1550/RX1490, LC, 80km, -40°C~+85°C, with DDM |
