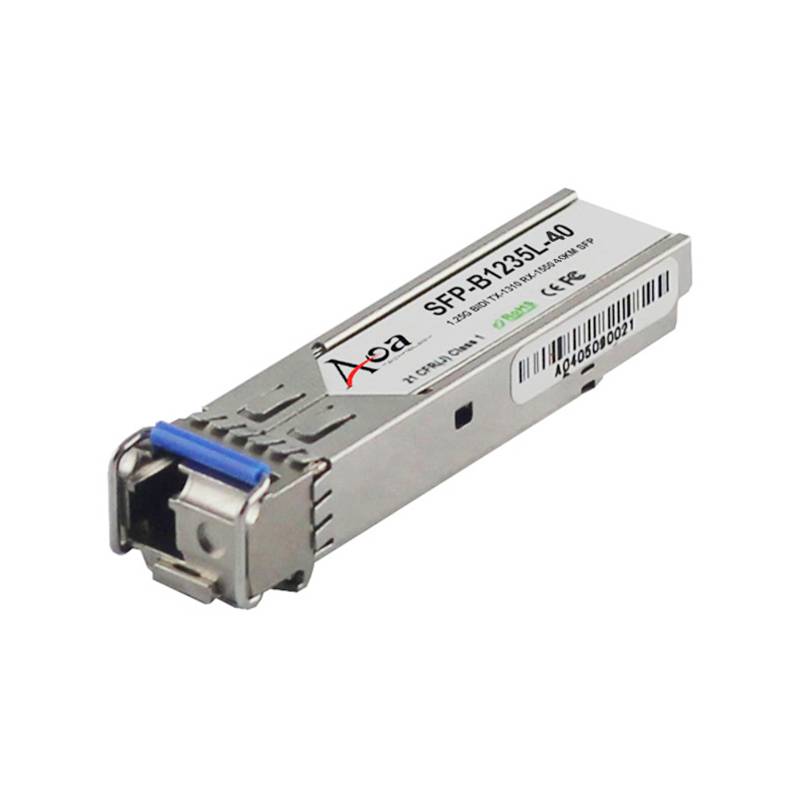

SFP-B1235L-40

1.25Gbps SFP Transceiver Bi-Di TX1310/RX1550nm 40km LC

Features

• Up to 1.25Gbps data links
• 1310nm DFP laser and PIN photo detector for 40km transmission
• Compliant with SFP MSA and SFF-8472 with single LC receptacle
• Digital Diagnostic Monitoring: Internal Calibration or External Calibration
• Single +3.3V power supply
• Compatible with SONET
• Compatible with RoHS
• Operating case temperature: Commercial: 0℃ to +70℃   Industrial: -40℃ to +85℃

Application

• SDH and SONET system
• Fiber Channel
• Switch to Switch interface
• Switched backplane applications
• Router/Server interface
• Other optical transmission systems

Standard

• Compliant with MSA SFP specification
• Compliant with IEC
• Compliant with IEEE 802.3z

Description

The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps and 40km transmission distance with SMF.

The transceiver consists of three sections: a DFP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA). For further information, please refer to SFP MSA.

Absolute Maximum Ratings

Recommended Operating Conditions

Ordering information
