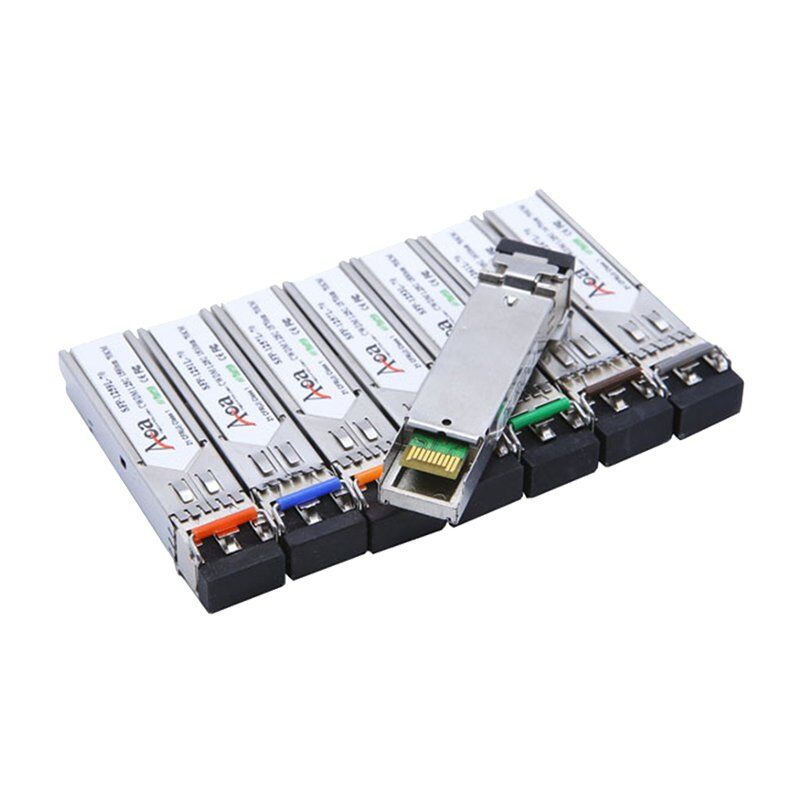

SFP-C10xxL-80 10G SFP Module CWDM 80KM
Optical SFP Module
10Gbps SFP+ Transceiver CWDM 80KM LC
Share on
SFP-C10xxL-80
10Gbps SFP+ Transceiver CWDM 80KM LC
Features
- Supports up to 11.1Gbps bit rates
- CWDM EML laser and APD photodiode, Up to 80km for SMF transmission
- Compliant with SFP+ MSA and SFF-8472 with double LC receptacle
- Hot-pluggable SFP+ footprint
- Real Time Digital Diagnostic Monitoring
- Single +3.3V power supply
- Compatible with RoHS
- Operating case temperature: Standard: 0 to +70°C
Application
- 10Gbps CWDM Optical systems
- 10GBASE-ER at 10.3125Gbps
- 10GBASE-EW at 9.953Gbps
- LTE systems
- Other Optical links
Standard
- Compliant with MSA SFP specification(SFF-8431, SFF-8432, SFF-8472)
- Compliant with IEC
- Compliant with IEEE 802.3ae
Description
The SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 80km transmission distance with SMF.
The transceiver consists of three sections: a Cooled EML laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
| Supply Voltage | Vcc | -0.5 | 4.5 | V |
| Storage Temperature | Ts | -40 | +85 | °C |
| Operating Humidity | – | 5 | 85 | % |
Recommended Operating Conditions
| Parameter | Symbol | Min | Typical | Max | Unit | |
| Operating Case Temperature | Standard | Tc | 0 | +70 | °C | |
| Industrial | -40 | +85 | °C | |||
| Power Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | |
| Power Supply Current | Icc | 430 | 460 | mA | ||
| Data Rate | 10.3 | Gbps | ||||
| Transmission Distance | 80 | km | ||||
Ordering information
| Model No. | Product Description |
| SFP-C10xxL-80 | 10G, CWDM, 1470~1610nm, LC, 80km, 0ºC ~ +70ºC, with DDM |
| SFP-C10xxL-80I | 10G, CWDM, 1470~1610nm, LC, 80km, -40ºC ~ +85ºC, with DDM |
| xx= 47,49,51,53,… to 61, which 47=1470nm, 49=1490nm, and 61=1610nm | |
