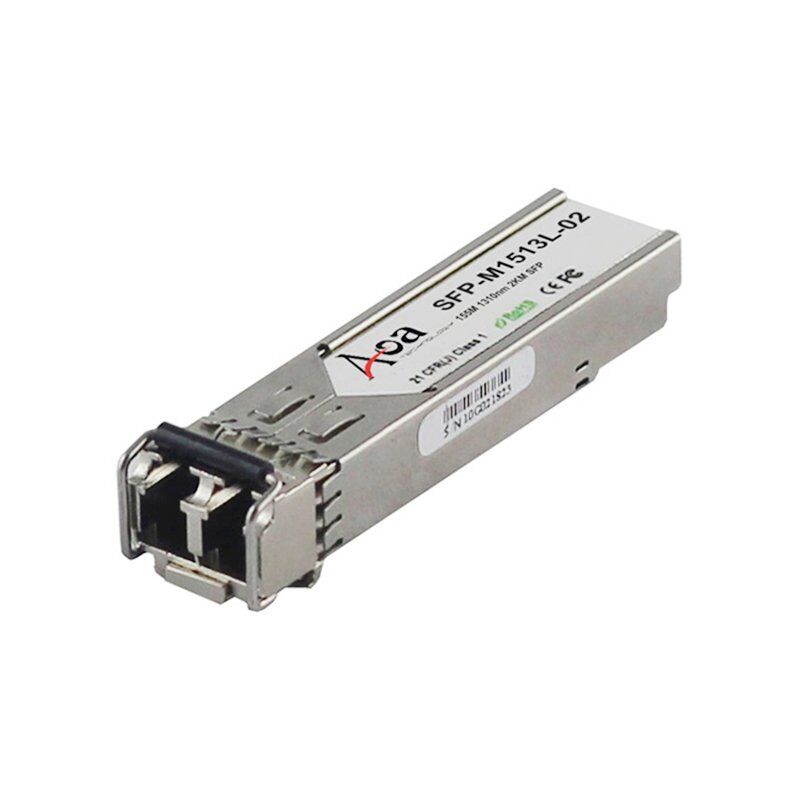

SFP-M1513L-02 155M SFP Module 2KM

Optical SFP Module

155Mbps SFP Transceiver MM 1310nm 2km LC

Share on


155Mbps SFP Transceiver MM 1310nm 2km LC



  • Up to 155Mbps data links
  • 1310nm FP(LED) laser and photo PIN detector for 2km transmission
  • Compliant with SFP MSA and SFF-8472 with Duplex LC receptacle
  • Digital Diagnostic Monitoring: Internal Calibration or External Calibration
  • +3.3V single power supply
  • Compatible with RoHS
  • Operating case temperature: Commercial: 0℃ to +70℃   Industrial: -40℃ to +85℃



  • SDH and SONET system
  • Fiber Channel
  • Switch to Switch interface
  • Switched backplane applications
  • Router/Server interface
  • Other optical transmission systems



The SFP transceivers are high performance, cost effective modules supporting 155Mbps and 2km transmission distance with MMF.

The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA). For further information, please refer to SFP MSA.


Absolute Maximum Ratings

Parameter Symbol Min Max Unit
Supply Voltage Vcc 0 4 V
Storage Temperature Ts -40 +85 °C
Operating Humidity 5 85 %


Recommended Operating Conditions

Parameter Symbol Min Typical Max Unit
Operating Case Temperature Standard Tc 0 +70 °C
Industrial -40 +85 °C
Power Supply Voltage Vcc 3.13 3.3 3.47 V
Power Supply Current Icc 300 mA
Data Rate 155 Mbps


Ordering information

Model No. Product Description
SFP-M1513L-02 155Mbps, 1310nm, LC, 2km, 0ºC ~ +70ºC, with DDM
SFP-M1513L-02I 155Mbps, 1310nm, LC, 2km, -40ºC ~ +85ºC, with DDM
