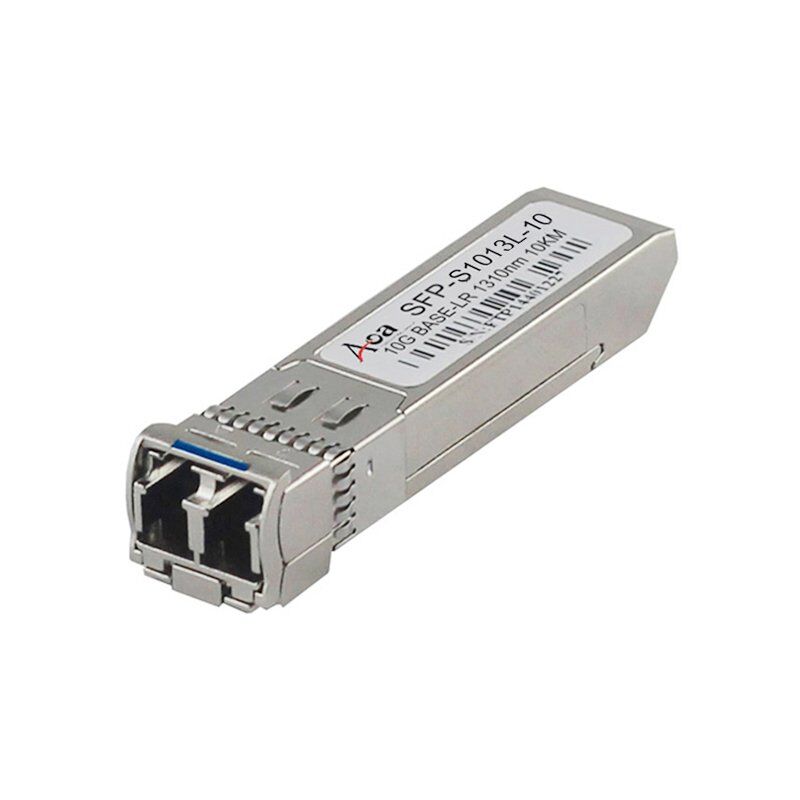

SFP-S1013L-10 10G SFP Module 10KM

Optical SFP Module

10Gbps SFP+ Transceiver SM 1310nm 10KM LC

Share on


10Gbps SFP+ Transceiver SM 1310nm 10KM LC



  • Supports up to 10.7Gbps bit rates
  • 1310nm DFB laser and PIN photodiode, Up to 10km for SMF transmission
  • Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
  • Hot-pluggable SFP+ footprint
  • Real Time Digital Diagnostic Monitoring
  • Single +3.3V power supply
  • Compatible with RoHS
  • Operating case temperature: Commercial: 0℃ to +70℃   Industrial: -40℃ to +85℃


  • 10GBASE-LR& 10G Ethernet
  • 10G Fiber Channel



  • Compliant with MSA SFP specification(SFF-8431, SFF-8432, SFF-8472)
  • Compliant with IEC
  • Compliant with IEEE 802.3ae



The SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 10km transmission distance with SMF.

The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.


Absolute Maximum Ratings

Parameter Symbol Min Max Unit
Supply Voltage Vcc -0.5 4.5 V
Storage Temperature Ts -40 +85 °C
Operating Humidity 5 85 %


Recommended Operating Conditions

Parameter Symbol Min Typical Max Unit
Operating Case Temperature Standard Tc 0 +70 °C
Industrial -40 +85 °C
Power Supply Voltage Vcc 3.135 3.30 3.465 V
Power Supply Current Icc 350 mA
Data Rate 10.3 10.7 Gbps
Transmission Distance 10 km


Ordering information

Model No. Product Description
SFP-S1013L-10 10Gbps, 1310nm, LC, 10km, 0°C~+70°C, with DDM
SFP-S1013L-10I 10Gbps, 1310nm, LC, 10km, -40°C~+85°C, with DDM
