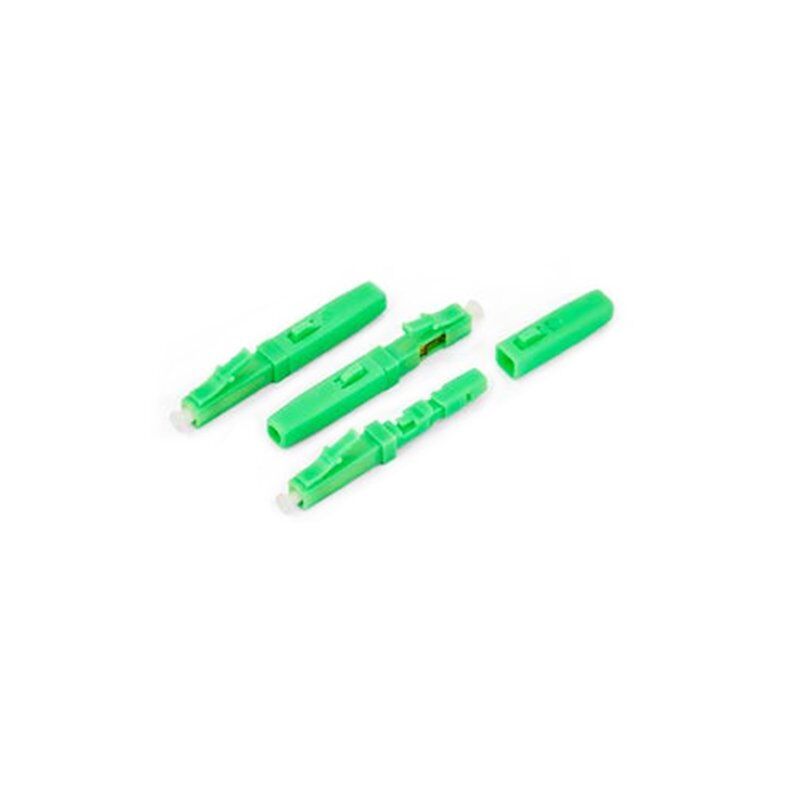

AFC-LCA LC/APC Fast Connector
AFC-LCA Fiber Optic Fast Connector
LC/APC Mechanical fiber pre-embeded type
Share on
LC/APC Mechanical Fiber Fast Connector
Overview
LC Fiber Optic Fast Connector also called LC Fast Fiber Connector or LC Quick Connector, designed for FTTH is a new generation of fiber connector used in assembly. It can provide Open flow and Pre-cast type of products, whose optical and mechanical specification meets the standard optical fiber connector. It is designed for high quality and high efficiency for installation; the structure of the crimping position is a unique design; and does not need gluing, polishing, or any consumables. It is adopting a fiber pre-installed structure that is convenient for field installation.
Features
- No gluing and polishing are required
- Can be made on-site without splicing
- Easy to install, fast, and easy on site
- Low insertion loss, high return loss
Applications
- Premise environments
- Connections at the desk for LAN environments
- Patch panels
- Direct equipment termination
- Fiber to the Subscriber (FTTH) applications
- Repair/replacement requirements
- Equipment test leads
Technical Specifications
| Type | Parameters |
| Application cable | 3.0 x 2.0 mm Drop Cable |
| Fiber diameter | 125µm (G657A & G657B) |
| Tight buffer diameter | 250μm |
| Insertion loss | AVG≤0.3dB，MAX≤0.5dB |
| Return loss | UPC≥45dB, APC≥50dB |
| Bare fiber strength | > 3N |
| Clad strength | > 8N |
| Tension strength | > 50N |
| On-line tensile strength (20 N) | △ IL ≤ 0.2dB △ RL ≤ 5dB |
| Mechanical durability (500 times) | △ IL ≤ 0.2dB △ RL ≤ 5dB |
| Drop-off test (drop-off height 4m, once per direction, total 3 times) | △ IL ≤ 0.2dB △ RL ≤ 5dB |
| Operating temperature | -25 ºC to +75 ºC |
| Connector length | 44.3±0.2mm |
