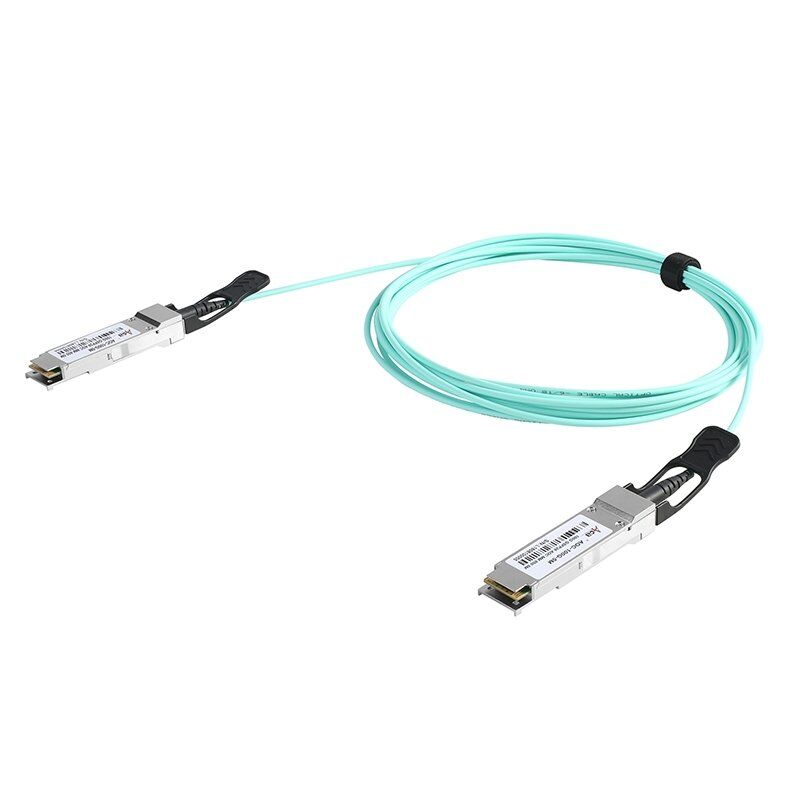

AOC-100G-3M 100G AOC Cable
Active Optical Cable
100G QSFP28 Active Optical Cable, AOC MMF 850nm 1-100m
Share on
AOC-100G-xM
100G QSFP28 Active Optical Cable, AOC MMF 850nm 1-100m
Features
- 4 high-speed full duplex channels
- Supports 103.1Gb/s aggregate bit rate
- 4x25Gbps 850nm VCSEL laser
- Available in lengths of 1 to 100 meters
- Hot-pluggable QSFP28 form factor
- QSFP28 MSA compliant
- Low power dissipation:<3.5W per cable end(<2.5W with CDRs off)
- Operating environment temperature 0 ~ 70℃
Application
- 100 Gigabit Ethernet links
- Infiniband interconnect
- Data center cabling infrastructure
- High density connections between networking equipment
Standard
- SFF-8431 SFP+ Electrical MSA
- SFF-8432 SFP+ Mechanical MSA
- RoHS complaint
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
| Storage Temperature | Ts | -40 | +85 | °C |
| Operating Humidity | RH | 0 | 85 | % |
| Supply Voltage | Vcc | -0.5 | 4.0 | V |
Recommended Operating Conditions
| Parameter | Symbol | Min | Typical | Max | Unit |
| Operating Case Temperature | Tc | 0 | +70 | °C | |
| Supply Voltage | Vcc | 3.14 | 3.3 | 3.46 | V |
| Supply Current | Icc | 300 | mA | ||
| Data Rate | BR | 25.78 | Each channel |
Ordering information
| Model No. | Product Description |
| AOC-100G-xM | 100G QSFP28 to QSFP28 Active Optical Cable 1-100m |
| x: 001~100 meters | |
