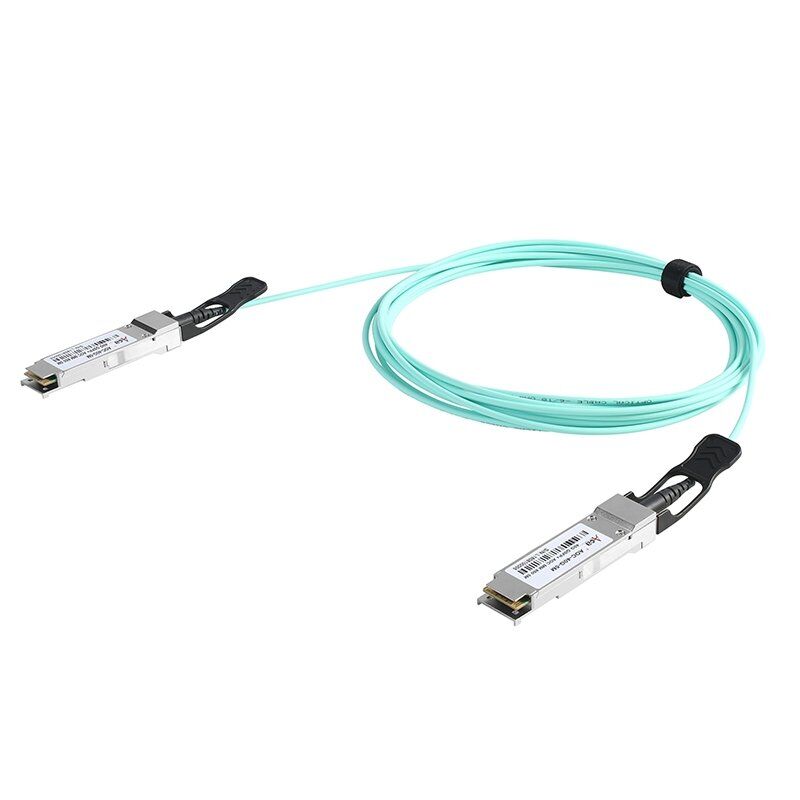

AOC-40G-3M 40G AOC Cable

Active Optical Cable

40G QSFP+ Active Optical Cable, AOC MMF 850nm 1-100m

Share on


40G QSFP+ Active Optical Cable, AOC MMF 850nm 1-100m



  • Four-channel full-duplex active optical cable
  • Transmission data rate up to 11.3Gbps per channel
  • High Reliability 850nm VCSEL technology
  • Available in standard lengths of 3, 5, 10, 15, 20, 30, 50,100m
  • Hot Pluggable QSFP form factor
  • 3V power supply voltage
  • Low power consumption <1.5W
  • Operating case temperature 0°C to +70°C



  • Infiniband QDR/DDR/SDR
  • 40G Ethernet
  • Datacenter
  • 4G/8G/10G Fiber Channel



  • Compliant to IEEE 802.3ba
  • Compliant with QSFP+ MSA
  • Compliant to SFF-8436


Absolute Maximum Ratings

Parameter Symbol Min Max Unit
Storage Ambient Temperature TSTG -40 85
Operating Case Temperature Tc 0 70
Operating Humidity HO 5 85 %
Power Supply Voltage Vcc -0.3 +3.6 V
Input Voltage Vin -0.3 Vcc+0.3 V


Recommended Operating Conditions

Parameter Symbol Min Typical Max Unit
Power Supply Voltage Vcc 3.135 3.3 3.465 V
Data Rate 1 10.3 11.3 Gbps
Data Speed Tolerance ∆DR -100 +100 ppm
Link Distance with OM3 fiber D 0 100 m
Power Consumption 1.5 W


Ordering information

Model No. Product Description
AOC-40G-xM 40G QSFP+ to QSFP+ Active Optical Cable 1-100m
x: 001~100 meters
