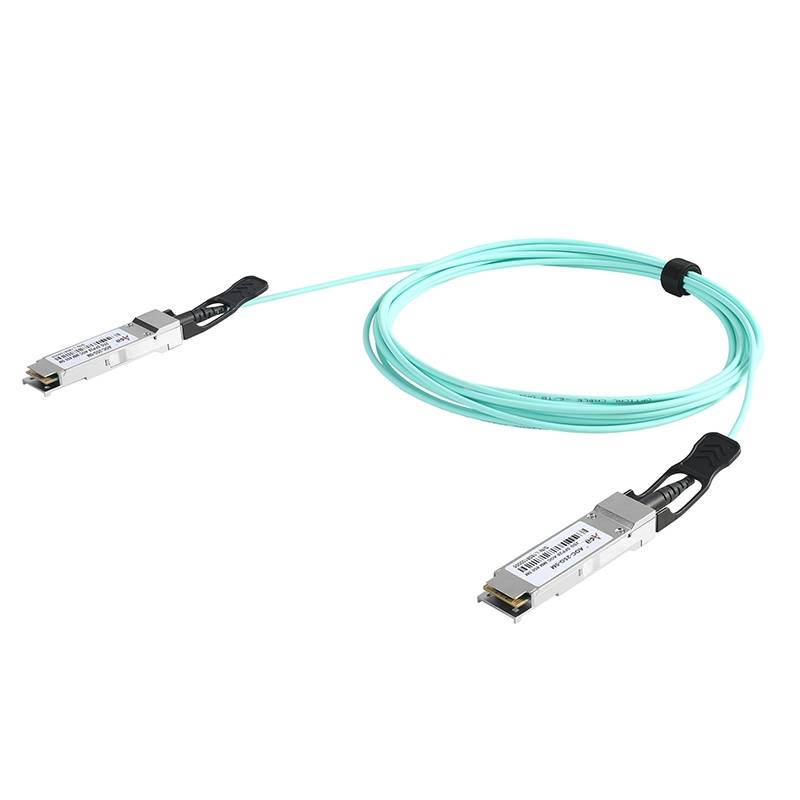

AOC-25G-3M 25G AOC Cable

Active Optical Cable

25G SFP28 Active Optical Cable, AOC MMF 850nm 1-100m

Share on


25G SFP28 Active Optical Cable, AOC MMF 850nm 1-100m



  • Supports 25Gbps data rate
  • Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
  • Support hot-pluggable
  • Excellent ESD protection
  • Single 3.3V power supply
  • Low power consumption
  • Operating case temperature 0°C to +70°C



  • 25GBASE-SR Ethernet
  • 32G Fiber Channel



  • SFF-8431 Electrical MSA
  • SFF-8432 Mechanical MSA
  • RoHS compliant


Absolute Maximum Ratings

Parameter Symbol Min Max Unit
Storage Temperature Ts -40 +85 °C
Operating Humidity RH 0 85 %
Supply Voltage Vcc -0.5 3.6 V


Recommended Operating Conditions

Parameter Symbol Min Typical Max Unit
Operating Case Temperature Tc 0 +70 °C
Power Supply Voltage Vcc 3.14 3.3 3.46 V
Power Supply Current Icc 300 mA
Data Rate 25.78 Gbps
Bit Error Ratio BER 10-8


Ordering information

Model No. Product Description
AOC-25G-xM 25G SFP28 to SFP28 Active Optical Cable 1-100m
x: 001~100 meters
