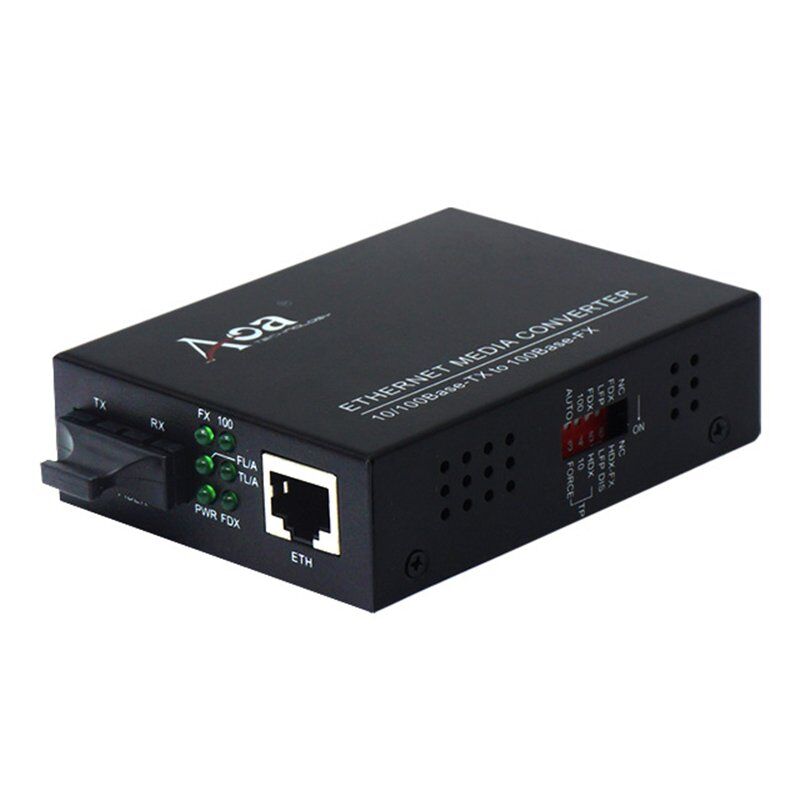

AOM-1100D 100M Media Converter LFP

Fast Ethernet Media Converter

10/100Base-T to 100Base-X with LFP

Share on

Fast Ethernet Media Converter

10/100Base-T to 100Base-X with LFP



AOM-1100D Serial 10/100M Fiber Media Converter translates the signal from a twist-pair 10/100Base-TX cable to 100Base-FX fiber optic cable, extends data transmission distance from 100m via copper cables to 120km by fiber optic cable, which supports LFP (Link Fault Pass-through) function.


  • 10/100Mbps auto-sensed, easily upgrade
  • Full-duplex and half-duplex auto-sensed
  • MDI/MDI-X Auto Negotiation
  • 10/100Mbps store-and-forward
  • 100Mbps cut-through transmission
  • LFP (Link Fault Pass-through) Function
  • Supporting extra-long packets up to 1600 bytes
  • Supporting VoIP /QoS packets
  • Support flow control and reduce broadcast packets
  • Supporting STP to form a redundant network
  • Extremely low power consumption, low heat, stable performance
  • Providing Desktop, Wall-mounted, Chassis installation



  • Network Communication
  • FTTH / FTTB / FTTx
  • ISP Backhaul Networking


Technical Specifications

Parameter Specifications
Standards IEEE802.3 10BaseT

IEEE802.3u 100BaseT(X)

IEEE802.3x Flow control and back pressure

IEEE802.1d Spanning Tree

Performance Processing Type: Store and Forward, Cut-through

Back Bandwidth: 400Mbps

MAC Address Size: 4Kbit

Packet Buffer Size: 512Kbit

Time Delay: <10us

Frame: 1600bytes

Copper Port Data Rate: 10/100M

Connector: RJ45

Distance: 100m

Fiber Port Data Rate: 155M

Connector: SC as default, FC/ST Optional

Distance:  MMF 2km,SMF 20/40/80/100/120km,


Dip-switch TP port mode: Auto (default) or Force

TP port speed: 100 or 10 when TP at Force

TP port duplex: FDX or HDX when TP at Force

LFP: LFP enabled (default) or disabled

Fiber port duplex: 100 FDX (default) or 100 HDX

LED indicators FL/A (optical link/action)

TL/A (twisted pairs link/action)

FDX (FX full duplex)

100 (100M transmission rate of twisted pairs)

PWR (power supply)

Power supply Working power: DC5V 1A

AC Power Supply: 100V~ AC240V to 5V1A

External / Internal Power Supply Optional

Environment Operating temperature : -20~65ºC

Storage Temperature: -40~85ºC

Relative Humidity: 5-95% (no condensation)

Physical Characteristics Installation: Desk-top, wall mounting, Chassis

Dimension: 94*70*26mm (External power supply)

Weight: 0.4kg (External power supply)


 Order Information

Model Description

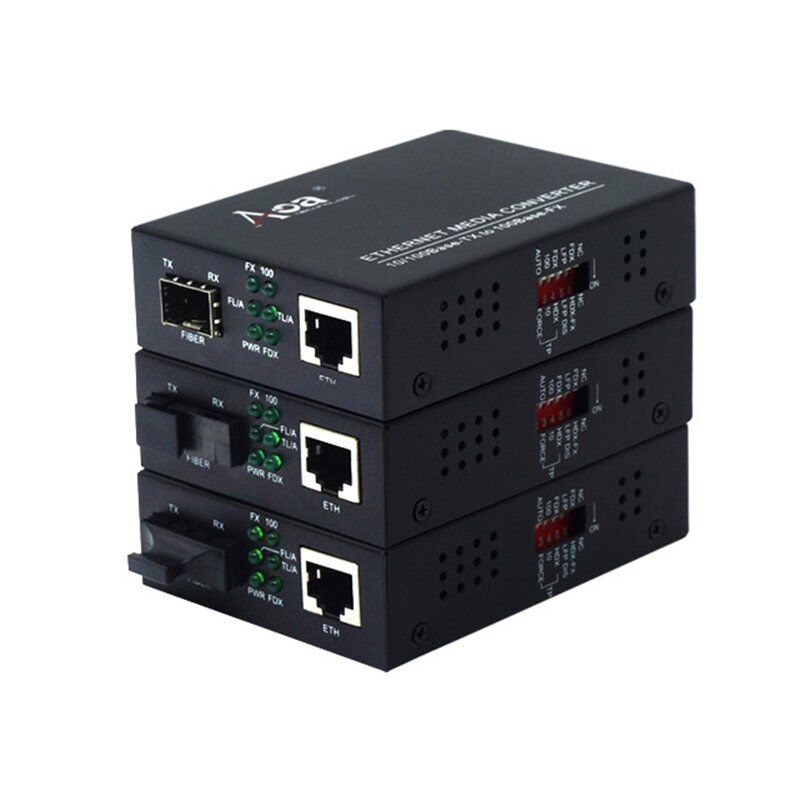

AOM-1100D-SFP-EA 10/100M,SFP Slot,excluded SFP,External AC220V
AOM-1100D-M02-EA 10/100M,MM dual fiber,1310nm,2Km,SC,External AC220V
AOM-1100D-S20-EA 10/100M,SM dual fiber,1310nm,20Km,SC,External AC220V
AOM-1100D-A20-EA 10/100M,SM SF,TX1310/RX1550nm,20Km,SC,External AC220V
AOM-1100D-B20-EA 10/100M,SM SF,TX1550/RX1310nm,20Km,SC,External AC220V
FC/ST available; 40/60/80/120km available


Related Products

Model Description
Installation Accessories
AOR-14 19” 2U, 14-slot rack with dual power supply
TK10 Wall-mounted kits, 87x12x8.2mm, hole L=73mm φ3.0mm
