AOM-3104 1000M Media Converter 4TX
Gigabit Ethernet Media Converter
10/100/1000M 1GX4GE
Share on
Gigabit Ethernet Media Converter
10/100/1000M, 1GX4GE, 4 ports RJ45
Overview

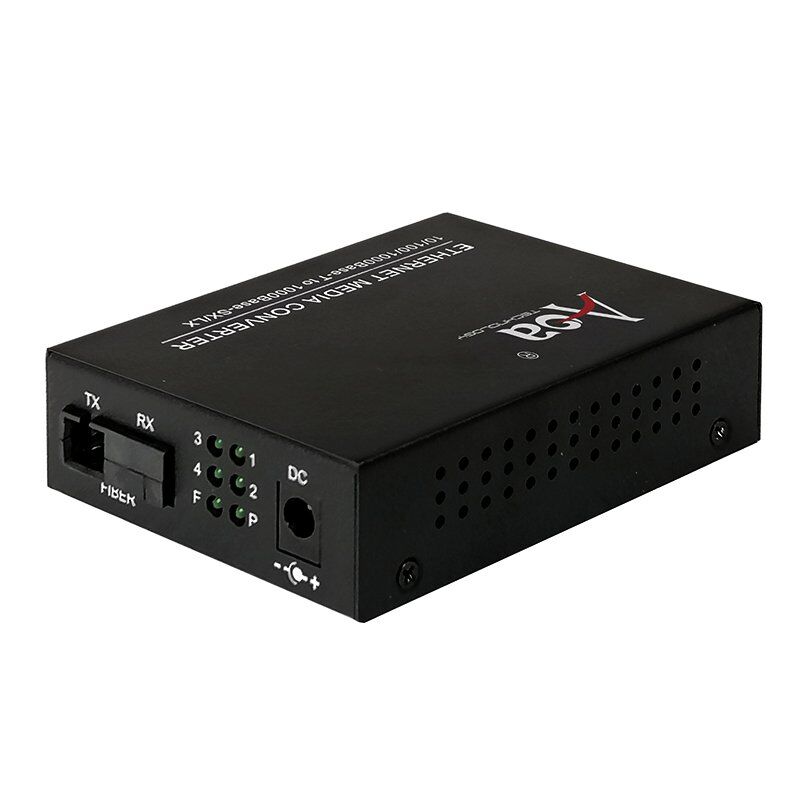

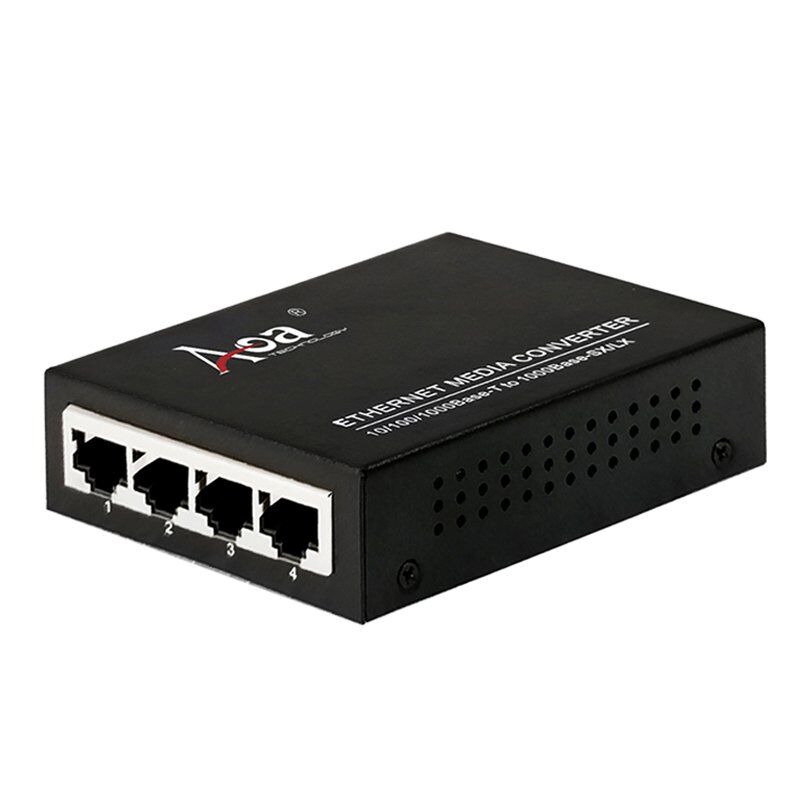

AOM-3104 is Gigabit Ethernet Media Converters, which extends the 10,100 and 1000Mbbps twisted-pair network segments up to 120km over fiber technology. The series media converter is compact and cost-effective design, providing 4-port 10/100/1000Mbps auto negotiation RJ45 connector and 1-port 1.25Gbps full-duplex on the fiber port with SC/FC/ST interface optional. It’s widely used in security monitoring, wireless networking, optical fiber access, and other application scenarios.
Features
- 4-port 10/100/1000M auto-negotiationRJ45 with auto-MDI/MDI-X
- Fiber port provides SC/FC/ST, multi-mode/single mode optional
- Full duplex and Half duplexoperation with IEEE 802.3x flow control
- 9kJumbo Frame
- LED indicators for working status
- Support hot plug and play
- 5-12Vdc Wide range power input
- -20~60ºCworking temperature
- ESD,surge protection
- IP30 enclosure
- Wall-mounted Installationwith optional kits
- Low power consumption, lead-free process
- CE/FCC/ROHS compliance
Application
- Network Communication
- FTTH / FTTB / FTTx
- ISP Backhaul Networking
Technical Specifications
| Performance | |
| Standard | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x |
| Processing type | Store and Forward |
| Switch capacity | 12Gbps |
| Packet forwarding Rate | 7.24Mpps |
| MAC address | 2k |
| Buffer Space | 1M |
| Flow Control | support |
| Jumbo Frame | 9k bytes |
| Interface | |
| Copper Port | 4x 10/100/1000M Auto-negotiation, RJ45 auto-MDI/MDI-X
Cat5/Cat5e/Cat6, ≤100m |
| Fiber Port | 1.25G SC/FC/ST optional
OS1/OS2 ≤120km; OM1/OM2 ≤550m |
| LED indicators | |
| Status | PWR, Fiber Link/Act, Copper Link/Act |
| Electrical characteristics | |
| Input Voltage | 5-12Vdc |
| Power Consumption | ≤3W |
| Power Port | DC socket, φ2.5mm |
| Power Adaptor | 100~240Vac (-48Vdc Optional) 50/60Hz input, 5Vdc 1A output |
| Physical characteristics | |
| Dimension | 94x71x26mm |
| Installation | Wall-mounted ( Optional kits) |
| Enclosure | Metal IP30 |
| Environment | |
| Working Temperature | -20~60ºC |
| Storage Temperature | -40~85ºC |
| Relative Humidity | 5%~95% (no condensation ) |
| Certification | |
| Safety | EN62368 |
| EMC | EN55032, EN55035, FCC Part 15 Subpart B Class A
IEC61000-3-2, IEC 61000-3-3, IEC61000-4-2, IEC 61000-4-3， IEC 61000-4-4, IEC 61000-4-5, IEC61000-4-6, IEC61000-4-8, IEC61000-4-11 |
| Reliability | IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-32 |
| ROHS | ROHS 2.0 |
Order Information
| Model | Description |
| AOM-3104-M05 | 10/100/1000M 4-RJ45, MM 850nm SC 550m |
| AOM-3104-S20 | 10/100/1000M 4-RJ45, SM 1310nm SC 20km |
| AOM-3104-A20 | 10/100/1000M 4-RJ45, SM TX1310/RX1550nm SC 20km |
| AOM-3104-B20 | 10/100/1000M 4-RJ45, SM TX1550/RX1310nm SC 20km |
| FC/ST available; 40/60/80/120km available | |
Related Products
| Model | Description |
| Installation Accessories | |
| TK10 | Wall-mounted kits, 87x12x8.2mm, hole L=73mm φ3.0mm |
