ATB3101 Access Terminal Box

Access Terminal Box

1/2 core, SC/LC(Duplex) Connector

Share on

FTTH Access Terminal Box



Overview

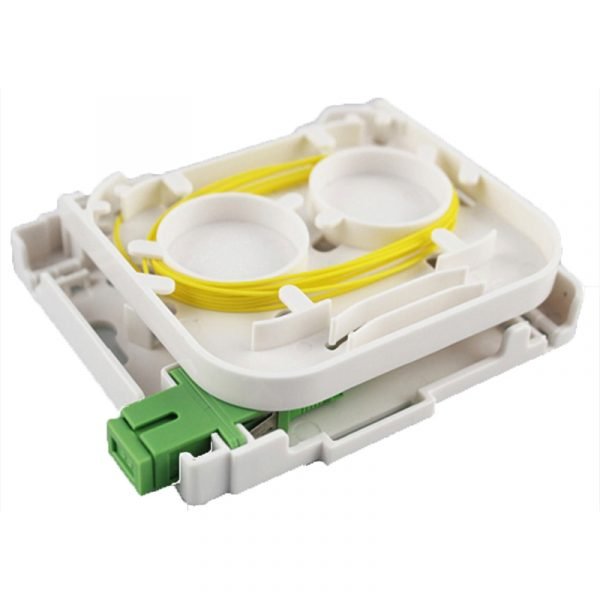

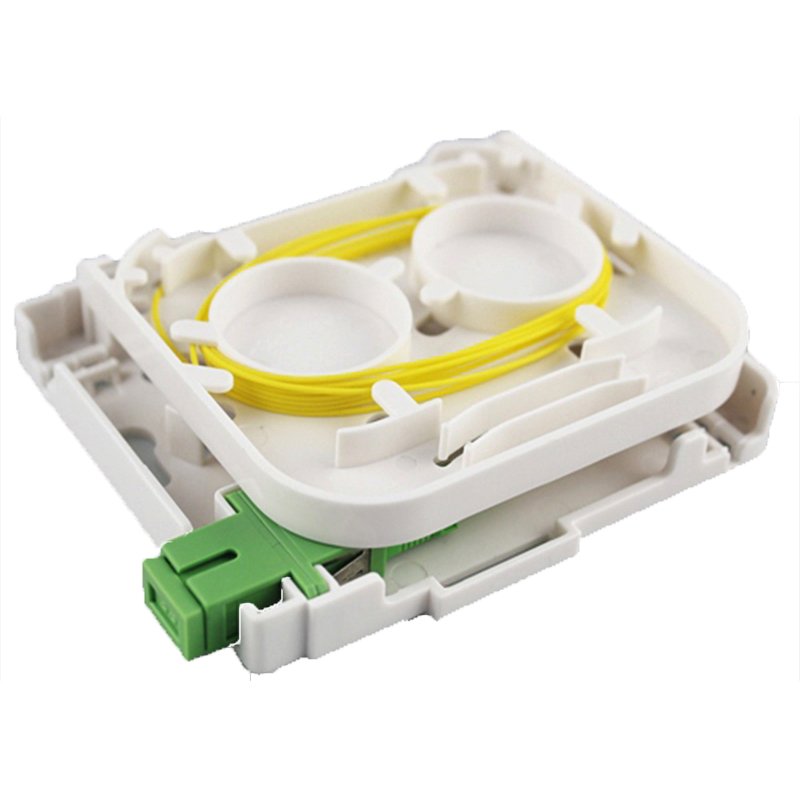

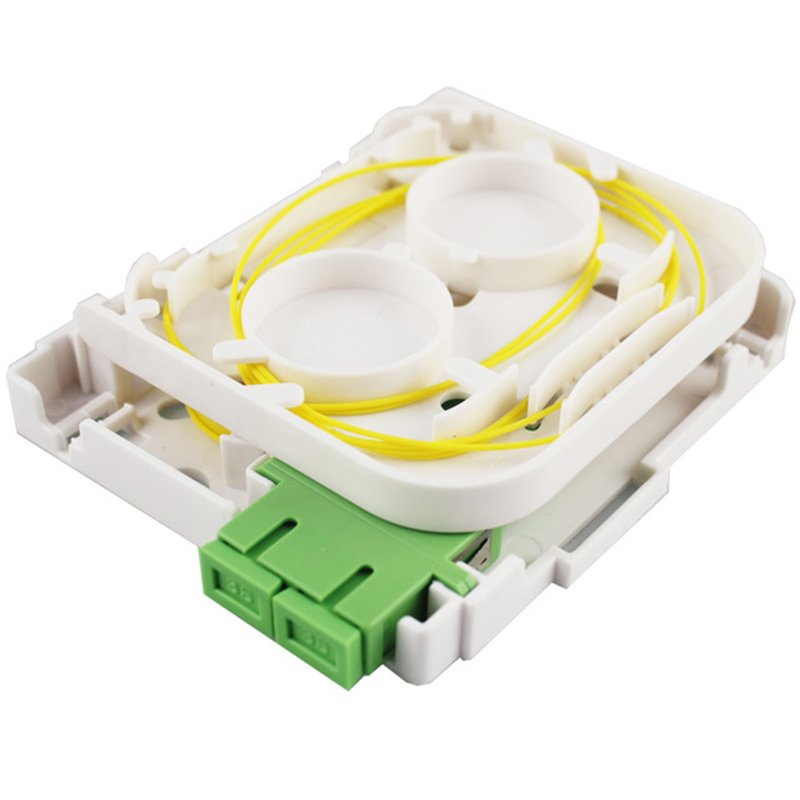

ATB3101 is an indoor access terminal box also called FTTX faceplate or FTTH terminal box, applied in the FTTX network to connect the drop cable and ONU devices through fiber port. ATB3101 covers the capacity of 1core, 2cores and 4 cores and supports splicing, mechanical connection and FMC, wall mounted installation.

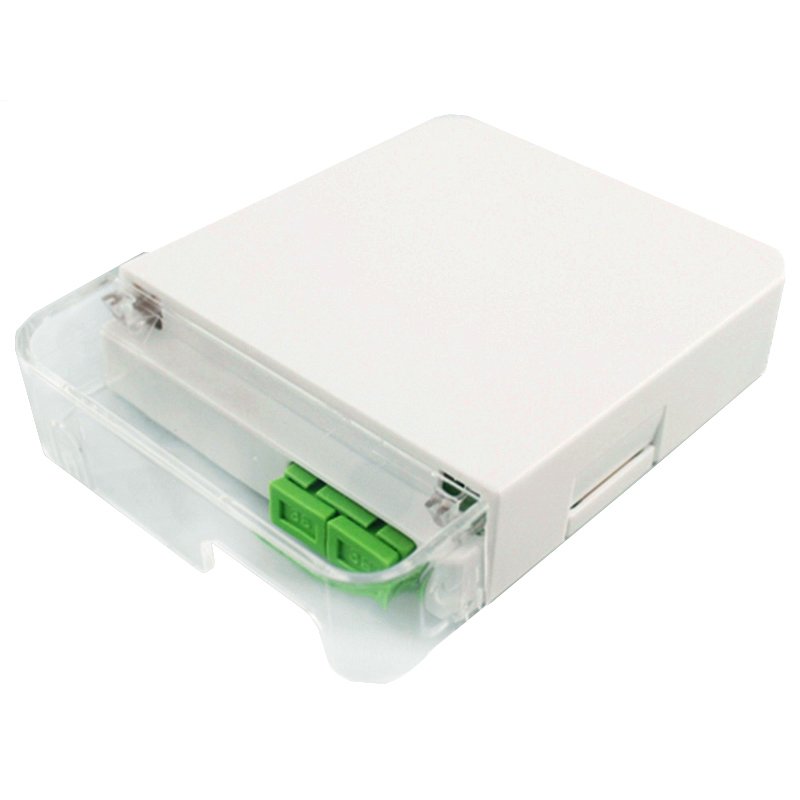

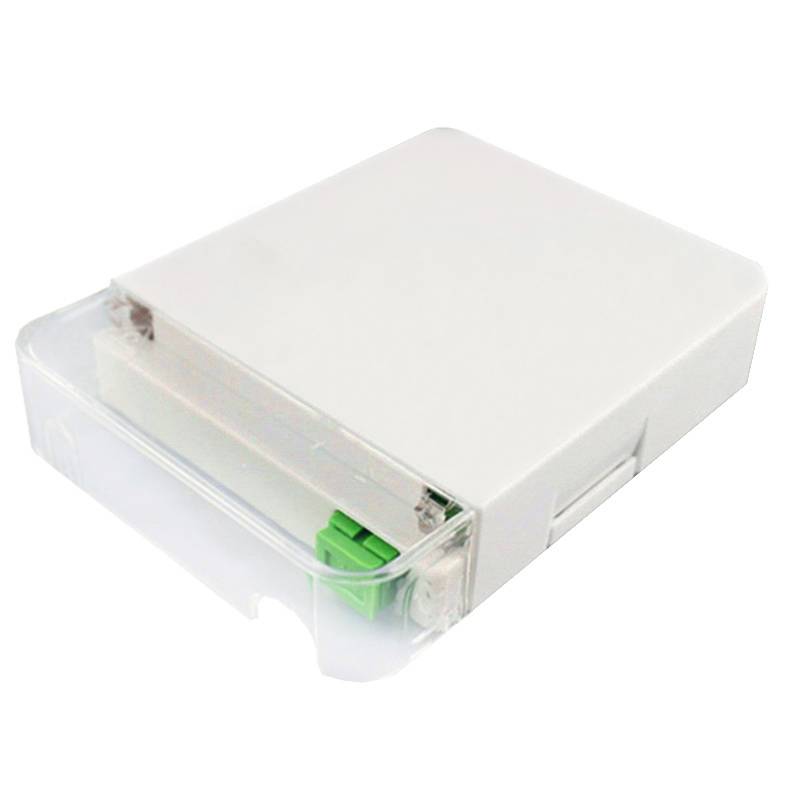

The plastic transparent cover and vertically downward fiber port can avoid causing personal injury.



Features

  • Excellent ergonomics design, graceful appearance and convenience operation
  • Plug fiber without having to open the shell, easily accessible fiber operation
  • Vertically downward port to avoid causing personal injury
  • White color, graceful style and good adaptability to environment.
  • Fiber cable inlets in every direction, supports the cable inlets for different scenarios.
  • Friendly operation interface, high reliability
  • Introductions clear, effectively prevent the miss-operation.
  • Low construction cost



Application

  • Widely used in FTTH access networks
  • Telecommunication Network
  • CATV Networks
  • Data Communication Networks



Technical Specifications

Parameter Specifications
Size (H×W×D) mm 86×115×23
Color White
Material ABS+PC
Capacity (cores) 1, 2, 4
Connect Models Splicing, Mechanical Connector, FMC
Installation Models Wall Mounted
Protective Level IP4X
Pigtail G.657 Ф0.9mm, 0.5m Or customer request
Drop cable (Flat) Indoor Flat Drop cable 2mm×3mm
drop cable (Round) Φ5mm~Φ7mm
Curvature Radius (mm) ≥15
Working Temp. -25℃~+60℃
Storage Temp. -40℃~+70℃
Humidity 93%(+30℃)
Air Pressure 70KPa~106KPa
Standards ITU-T L.51; JB-T8593-1997 EN 60950-1; UL94; IEC 60529



Order Information

Model Adaptor Pigtail Capacity (Core)
ATB3101-1 1/2
ATB3101-1/SC/U/S 1x SC/UPC SX 1x SC/UPC SX 0.9mm 1
ATB3101-1/SC/A/S 1x SC/APC SX 1x SC/APC SX 0.9mm 1
ATB3101-1/LC/U/D 1x LC/UPC DX 2x LC/UPC SX 0.9mm 2
ATB3101-1/LC/A/D 1x LC/APC DX 2x LC/APC SX 0.9mm 2
ATB3101-2 2/4
ATB3101-2/SC/U/D 1x SC/UPC DX 2x SC/UPC SX 0.9mm 2
ATB3101- 2/SC/A/D 1x SC/APC DX 2x SC/APC SX 0.9mm 2
ATB3101-2/LC/U/Q 1x LC/UPC QD 4x LC/UPC SX 0.9mm 4
ATB3101-2/LC/A/Q 1x LC/APC QD 4x LC/APC SX 0.9mm 4
