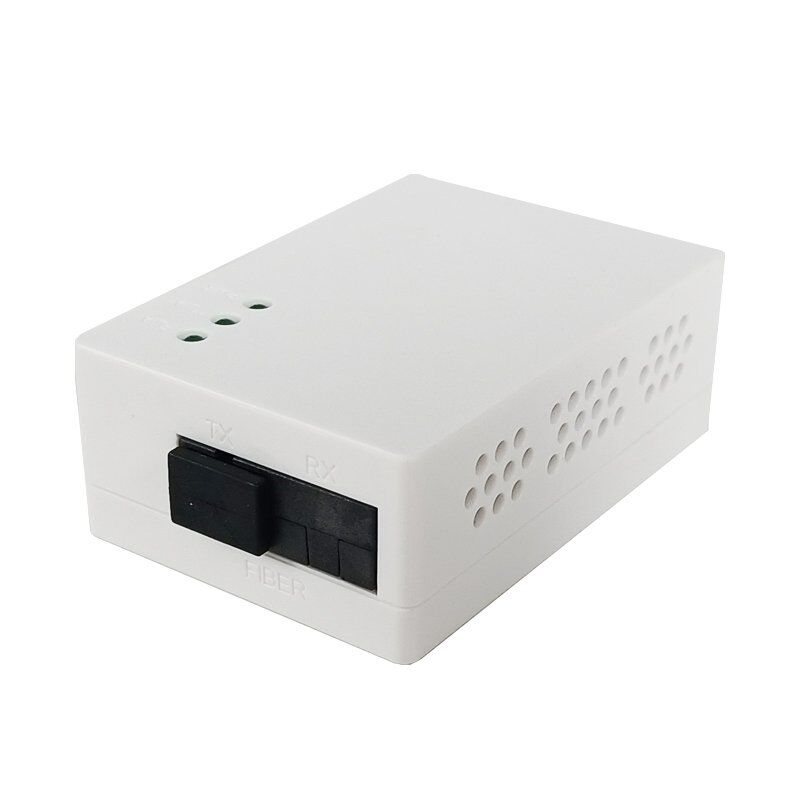

CMC300_mini media convverter fiber

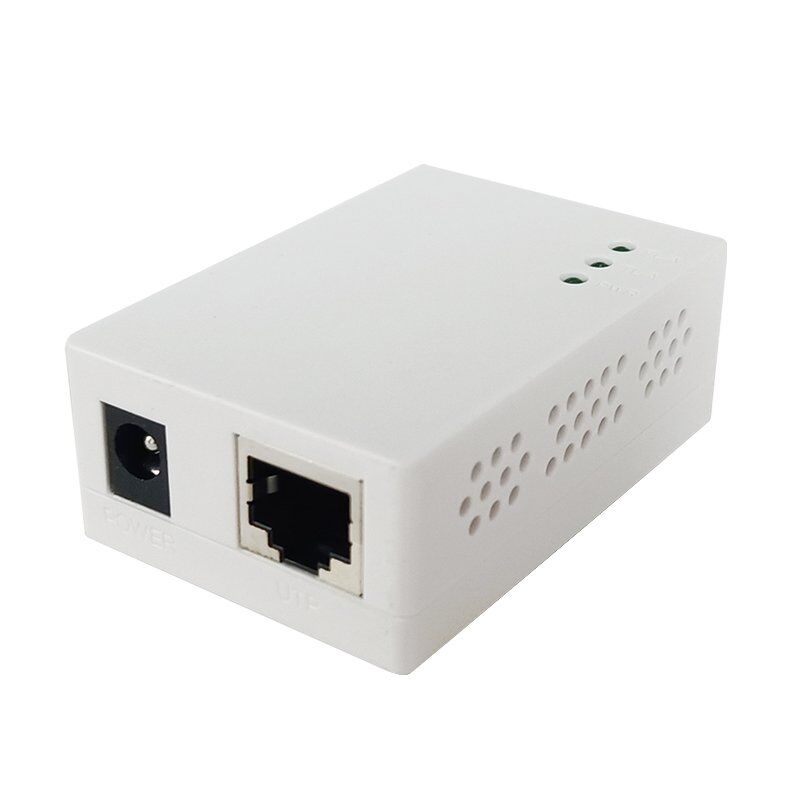

CMC300_mini media convverter

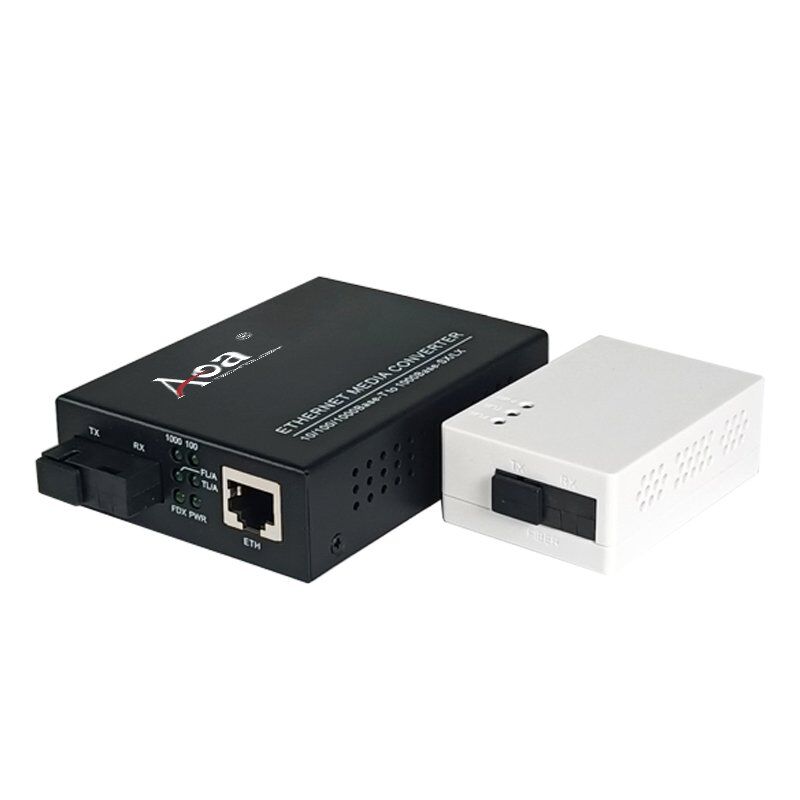

CMC300_mini ethernet media converter

CMC300 1000M Mini Media Converter

Gigabit Mini Media Converter

10/100/1000Base-T to 1000Base-X

Get a quote now

Share on

Gigabit Mini Media Converter

10/100/1000Base-T to 1000Base-X

Overview

CMC300 series is Mini Gigabit Media Converters, which extends the 10M, 100M, and 1000Mbps twisted-pair network segments up to 120km over fiber technology. It is widely used in ISP network solutions of FTTH, FTTC, and FTTBs, CCTV networks, or for small office network environments of enterprises.

Features

Copper port support 10/100/1000M, Auto-Cross for MDI/MDIX
1000Base-X SC fiber port up to 120km transmission
Full duplex and Half duplex back pressure auto-negotiation
Support 16K Jumbo Frame
Simple LED indicators for monitoring working status
5~12Vdc power input and power consumption less than 2W
Compact size 65x45x22mm
IP30 plastic enclosure
Plug-and-play operation
Cost-effective and weight-less design
CE/FCC/RoHS compliance

Application

Network Communication
FTTH / FTTB / FTTx
ISP Backhaul Networking

Technical Specifications

Performance
Standard	IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x
Data forwarding	Forward mode
Switch Capacity	4Gbps
Packet forwarding Rate	2.9Mpps
Flow Control	support
Jumbo Frame	16k
Interface
Copper Port	10/100/1000M Auto-negotiation, RJ45 Auto-Cross for MDI/MDIX Cat5/Cat5e/Cat6, ≤100m
Fiber Port	1000M SC connector OS1/OS2 ≤120km; OM1/OM2 ≤550m
LED indicators	PWR, Fiber Link/act, Copper Link/act
Power Port	DC socket, φ2.5mm
Electrical characteristics
Input Power	5~12Vdc, Max.0.35A
Power Consumption	<2W
Physical characteristics
Dimension	65x45x22mm
Protection	IP30
Environment
Working Temperature	-20~60ºC
Storage Temperature	-40~85ºC
Relative Humidity	5%~95% (no condensation )
Power Adaptor
Input Voltage	100-240Vac 50/60Hz
Output	5Vdc 1A

Order Information

Model	Description
CMC300-M05	10/100/1000M, MM 850nm SC 550m
CMC300-S20	10/100/1000M, SM 1310nm SC 20km
CMC300-A02	10/100/1000M, SM TX1310/RX1550nm SC 2km
CMC300-B02	10/100/1000M, SM TX1550/RX1310nm SC 2km
CMC300-A20	10/100/1000M, SM TX1310/RX1550nm SC 20km
CMC300-B20	10/100/1000M, SM TX1550/RX1310nm SC 20km
Notes: 40/60/80/120km is available
