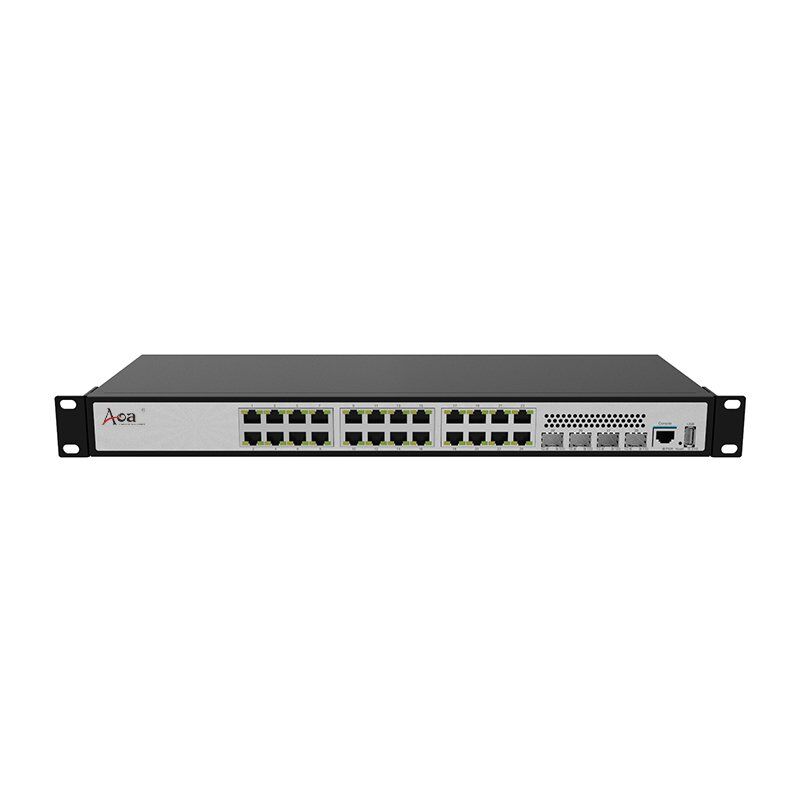

10G Managed Ethernet Switch
L3, 24x 10/100/1000M RJ45, 4x 10G SFP+
Share on
Overview
CMS5300/5200 series managed switches adopt a new generation of high-performance hardware and software platforms, provide flexible and cost-effective Gigabit access and 10G uplink ports, support three-layer routing protocols, support ERPS ring network, and complete security protection. Mechanism, complete ACL/QoS policy and rich VLAN functions, easy to manage and maintain, suitable for enterprise and campus network establishment.
Features
Hardware Features
Software Features
L2 Feature | |
MAC Address | Automatic MAC address learning and MAC address aging
static and dynamic MAC table entries modifying dynamic MAC aging time |
VLAN | IEEE 802.1Q VLAN(Port Based VLAN)
MAC Based VLAN IP Based VLAN Protocol Based VLAN GVRP VLAN QinQ VLAN Private VLAN |
Ring Protection | ERPS (G.8032)
STP (IEE 802.1d) and RSTP (IEEE 802.1w) and MSTP (IEE 802.1s) BPDU protection, Root protection, and Loopback protection |
Multicast | IGMP V1/V2/V3 and IGMP Snooping
MLD V1/V2 and MLD Snooping |
Port Feature | Port Auto-negotiation and Force Speed
Port Flow Control LACP link aggregation Port Isolation Storm Control Port Loop Protection |
L3 Feature | |
IP Routing | StaticRoute/RIP/OSPF/OSPFv3
BGP/RouterDiscovery/VRRP Policy Routing(PBR)/BFD Multicast Routing DVMRP/PIM-SM/PIM-DM |
IPv6 Feature | ND(Neighbor Discovery)
IPv6 interface IPv6 Ping, IPv6 Tracert, IPv6 Telnet |
Network Security | |
QoS | 802.1P Queue Mapping and DSCP Queue Mapping
SP and WRR queue scheduling DiffServ Qos Ingress speed limit and Egress speed limit |
ACL | total 500 ACL Rule Entries
MAC Extended ACL IPv4 Standard ACL IPv4 Extended ACL IPv6 ACL |
Security | Multiple username and password management
Anti-Dos AttackAnti ARP AttackAnti ICMP Attack combination binding of IP, MAC, Port, and VLAN port isolation and port security IEEE 802.1X authentication and limit the maximum number of users per port SSH V2.0 and HTTPS DHCP Relay and DHCP Server DHCPv6 Relay and DHCPv6 Server |
Management Feature | |
Management and maintenance | WEB network management
CLI with Console and Telnet and SSH SNMPv1/v2c/v3,Support RMON LLDP/LLDP-MED system logs, file upgrades, and firmware upgrades CPU monitorMemory monitorPingCable Length Test PoE Management |
Technical Specifications
Model | Configuration |
CMS5300-8X |
Port: 8x 10G SFP+
Switch capacity: 160G Packet forwarding rate: 119Mpps MAC Address: 16k Power input: AC100~240V 50/60Hz, DC36-72V (Optional) |
CMS5300-24T4X |
Port: 24x 10/100/1000M RJ45, 4x 10G SFP+
Switch capacity: 128G Packet forwarding rate: 95Mpps MAC Address: 16k Power input: AC100~240V 50/60Hz, DC36-72V (Optional) |
CMS5300-24P4X | Port: 24x 10/100/1000M (PoE), 4x 10G SFP+
Switch capacity: 128G Packet forwarding rate: 95Mpps MAC Address: 16k Power input: AC100~240V 50/60Hz, 400W |
CMS5300-24S4X |
Port: 24x 1G SFP, 4x 10G SFP+
Switch capacity: 128G Packet forwarding rate: 95Mpps MAC Address: 16k Power input: AC100~240V 50/60Hz, DC36-72V (Optional) |
CMS5300-24T8S6X | Port:24x 10/100/1000M RJ45, 8x 1G SFP, 6x 10G SFP+
Switch capacity: 360G Packet forwarding rate: 136Mpps MAC Address: 32k Power input: AC100~240V 50/60Hz, DC36-72V (optional) |
CMS5300-24S8T6X | Port: 24x 1G SFP, 8x 10/100/1000M RJ45, 6x 10G SFP+
Switch capacity: 360G Packet forwarding rate: 136Mpps MAC Address: 32k Power input: AC100~240V 50/60Hz, DC36-72V (optional) |
CMS5300-24T24S6X | Port: 24x 10/100/1000M RJ45, 24x 1G SFP, 6x 10G SFP+
Switch capacity: 360G Packet forwarding rate: 160Mpps MAC Address: 32k Power input: AC100~240V 50/60Hz, DC36-72V (Optional) |
CMS5300-48T6X | Port: 48x 10/100/1000M RJ45, 6x 10G SFP+
Switch capacity: 360G Packet forwarding rate: 160Mpps MAC Address: 32k Power input: AC100~240V 50/60Hz, DC36-72V (Optional) |
Order Information
Model No. | Description |
CMS5300-8X-xx | L3, 8x 10G SFP+ |
CMS5300-24T4X-xx | L3, 24x 10/100/1000M RJ45, 4x 10G SFP+, |
CMS5300-24P4X-xx | L3, 24x 10/100/1000M PoE, 4x 10G SFP+ |
CMS5300-24S4X-xx | L3, 24x 1G SFP, 4x 10G SFP+ |
CMS5300-24T8S6X-xx | L3, 24x 10/100/1000M RJ45, 8x 1G SFP, 6x 10G SFP+, |
CMS5300-24S8T6X-xx | L3, 24x 1G SFP, 8x 10/100/1000M RJ45, 6x 10G SFP+ |
CMS5300-24T24S6X-xx | L3, 24x 10/100/1000M RJ45, 24x 1G SFP, 6x 10G SFP+ |
CMS5300-48T6X-xx | L3, 48x 10/100/1000M RJ45, 6x 10G SFP+ |
Notes: CMS5200 is L2+, support static routing.
xx for power input, AC=AC input, DC=DC input, AD=AC+DC input |
