NAP Distribution Box

Waterproof Wall-mount type NAP Box



Overview

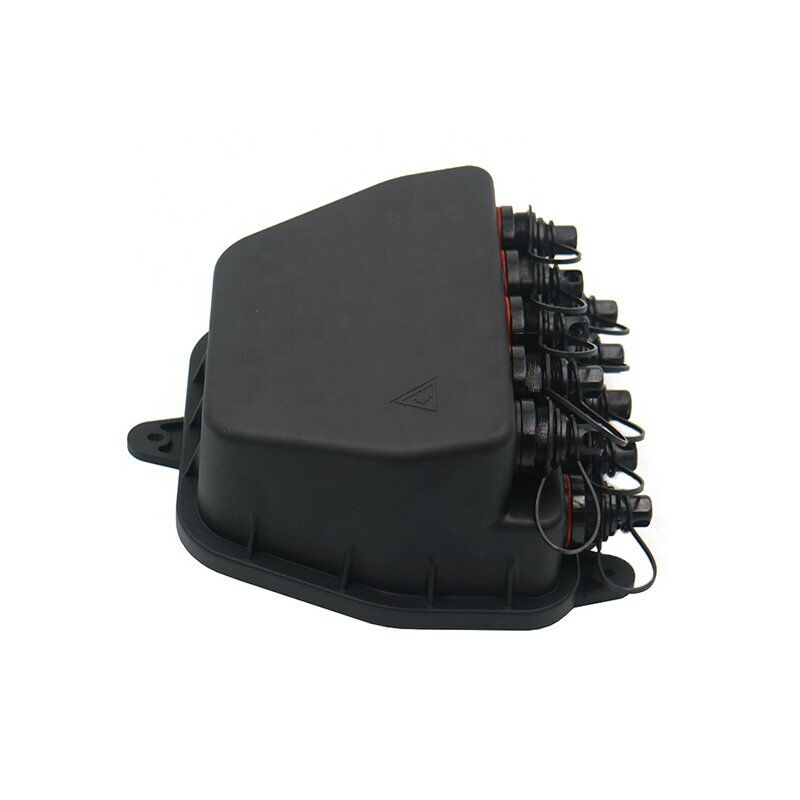

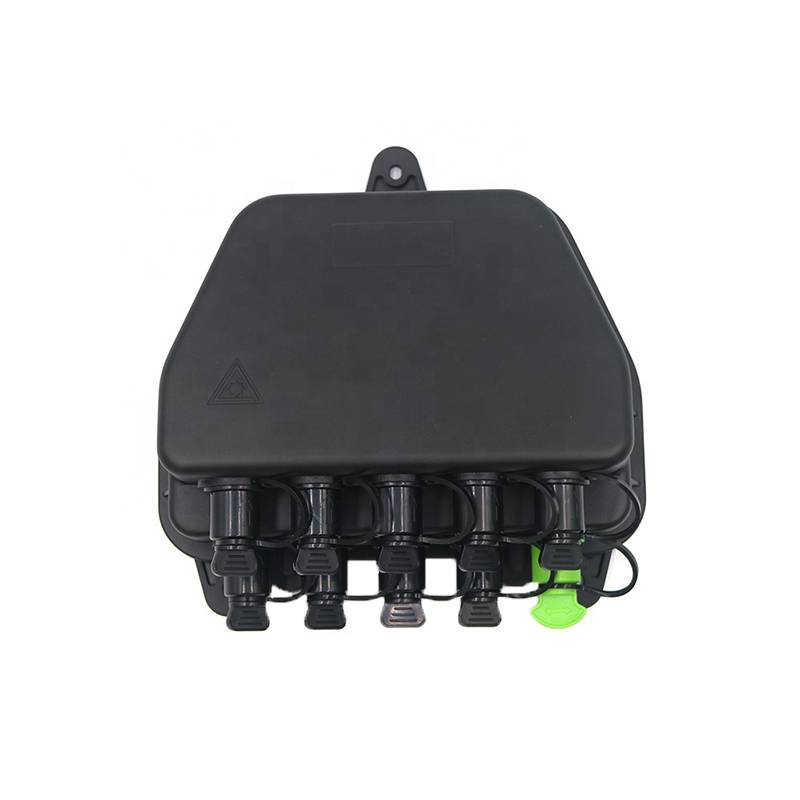

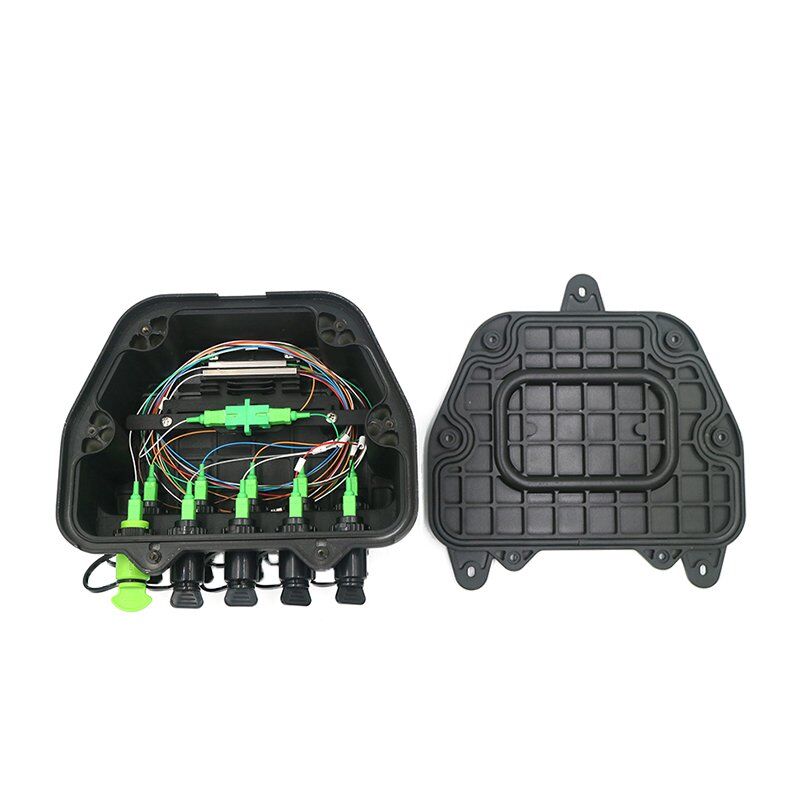

FDB-10 FTTH Pre-connected Fiber Optical NAP Splitter Distribution boxes are widely used in outdoor FTTH Solutions; the assembly method can be wall-mounted or pole-mounted. It was designed to connect two different waterproof adapters, OptiTap or MINI SC/APC Adapters.



Features

• Protection IP Grade is IP67
• Material is PC+ABS
• With two different waterproof adapters: OptiTap or MINI SC/APC Adapters
• Max Capacity is 1×2 FBT+1X8 PLC Splitters.



Application

• Widely used in FTTH access network.
• Telecommunication Networks
• CATV Networks
• Data communications Networks
• Local Area Networks



Technical Specifications

Parameter	Specifications
Size (HxWxD) mm	205.4*209*86
Input Ports	1 piece uncut port
Outports Adapter	10pcs Mini SC or OptiTap adapters
PLC Splitters	1×2 FBT+1X8 PLC Splitter
Installation Models	wall mount, pole mount and aerial mount
Protective Level	IP67
Material	PC+ABS
Color	Black
Curvature Radius (mm)	≥15
Working Temp.	-25℃ ~ +60℃
Storage Temp.	-40℃ ~ +70℃
Humidity	93%(+30℃)
Air Pressure	70KPa ~ 106KPa



Order Information

Model	Dimension	Max.Capacity	Note
FDB-10	205.4*209*86mm	8 ports & splice	Wall/Pole mount
