FDB-16C Fiber Distribution Box

Fiber Distribution Box

Accommodated 2PCS 1×8 PLC cassette splitter or tube splitter

Share on

Fiber Distribution Box

Accommodated 2PCS 1×8 PLC cassette splitter or tube splitter

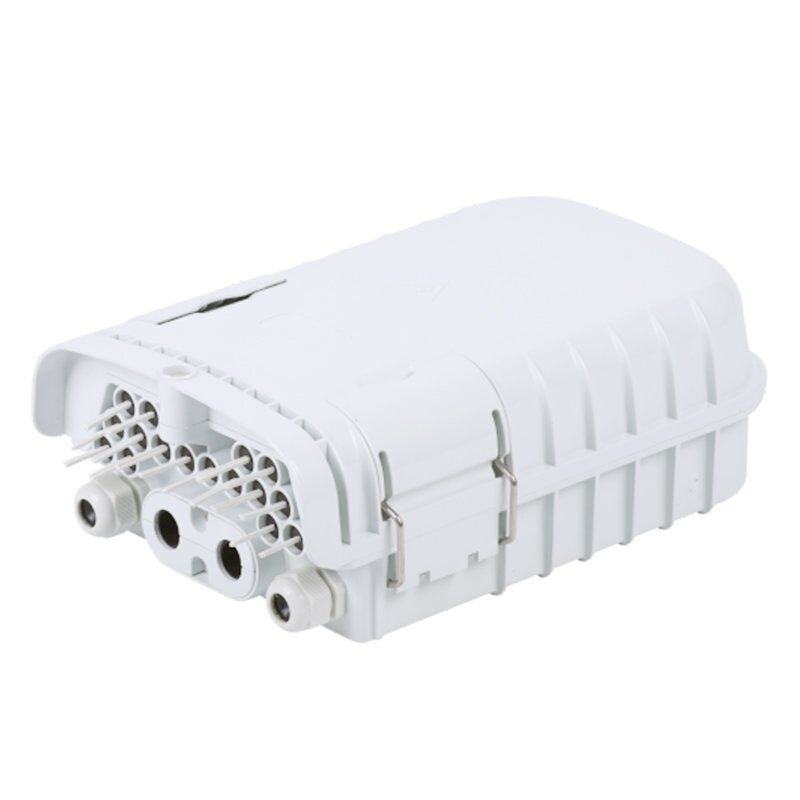

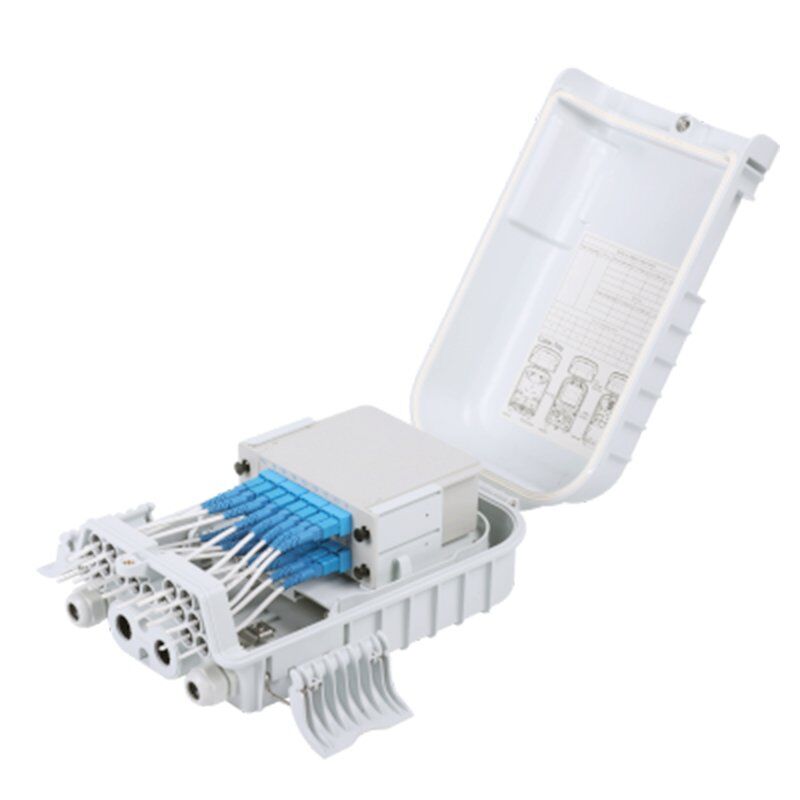

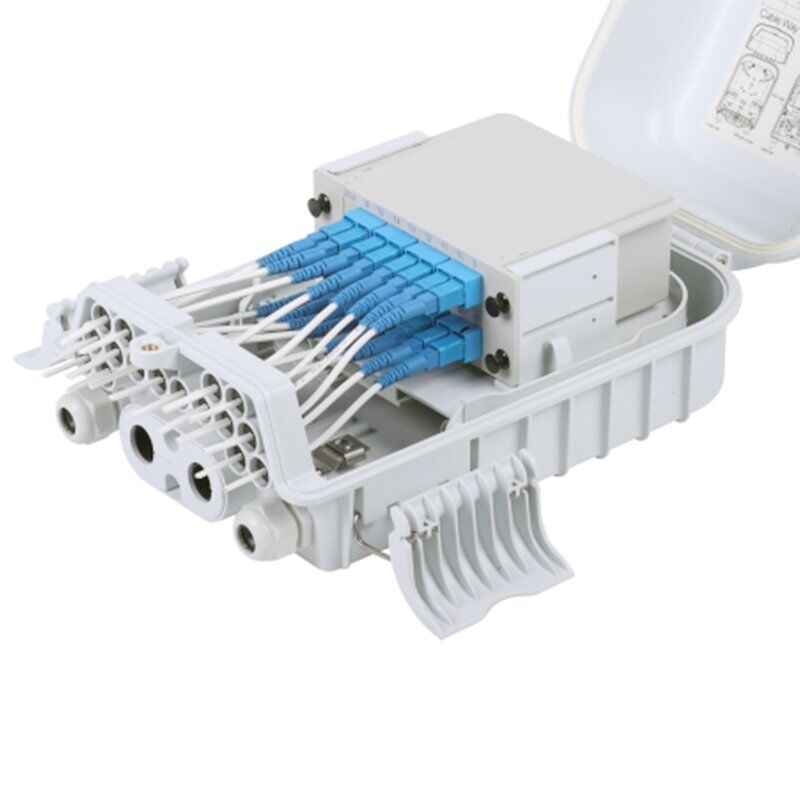

FDB-16C Series 16 ports Fiber Distribution Box, also called Splitter Distribution Box or Fiber Terminal Box, can be used in FTTH projects and is suitable for corridor, basement, room, and building’s outer walls application. With the function of the mechanical splice, fusion splice, light splitting, and wiring distributions. It can accommodate 2pcs 1×8 PLC cassette splitter. The fiber access terminal box is with Anti-UV, Ultra violet resistant, rainfall resistant, and IP55 waterproof design and can be installed outside.

The fiber optic distribution box is also designed with rainproof converter adopted and two sets of elastic compression fasteners, which better achieve the waterproof effect.



  • Industry Standard User Interface, be made of high impact plastic.
  • Can accommodate 2 pcs of 1×8 cassette splitter.
  • Anti-UV, Ultra violet resistant, and rainfall resistant.
  • Up to 16 FTTH drops.
  • Wall and pole mountable.
  • 4 inlet ports, 16 outlet ports.
  • IP55 waterproof and dust-proof plastic case



  • Widely used in FTTH access network.
  • Telecommunication Networks
  • CATV Networks
  • Data communications Networks
  • Local Area Networks


Technical Specifications

Parameter Specifications
Size (HxWxD) mm 172*288*103
Color White
Material PC+ABS
Capacity (cores) 16
Connect Models Splicing, Mechanical Connector, FMC
Installation Models Wall Mounted / Pole Mounted
Protective Level IP55
Splitter 2PCS 1×8 cassette splitter
Curvature Radius (mm) ≥40
Working Temp. -25℃~+60℃
Storage Temp. -40℃~+70℃
Humidity 93%(+30℃)
Air Pressure 70KPa~106KPa


Order Information

Model Dimension Max.Capacity Note
FDB-16C 172*288*103mm 16 ports & splice Wall/Pole mount
