FDB-16B Fiber Distribution Box

Fiber Distribution Box

Accommodated 1*16 PLC splitter, elastic fasteners

Share on

Fiber Distribution Box

Accommodated 1*16 PLC splitter,elastic fasteners

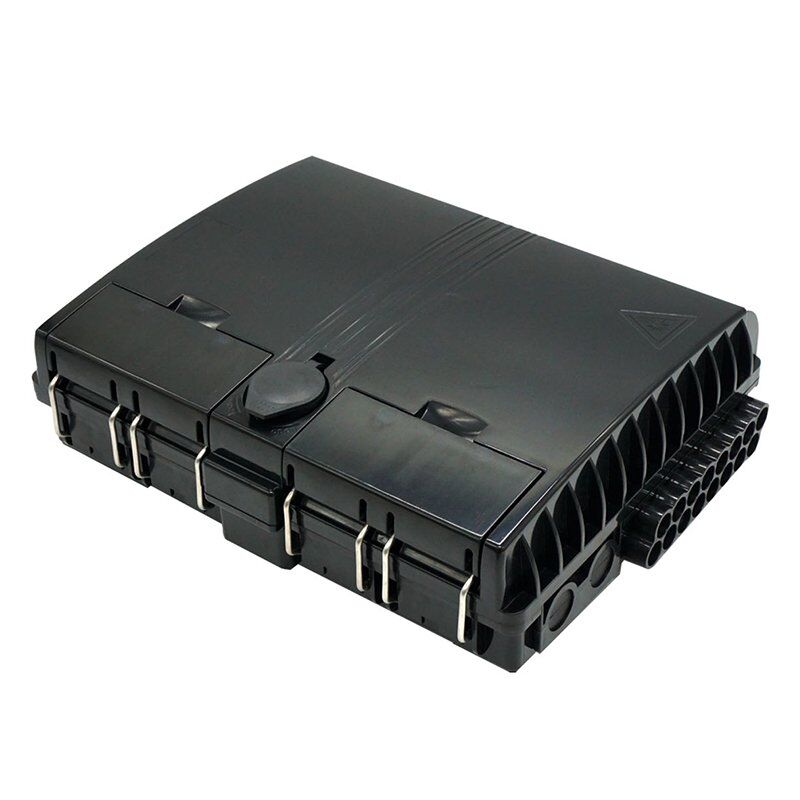

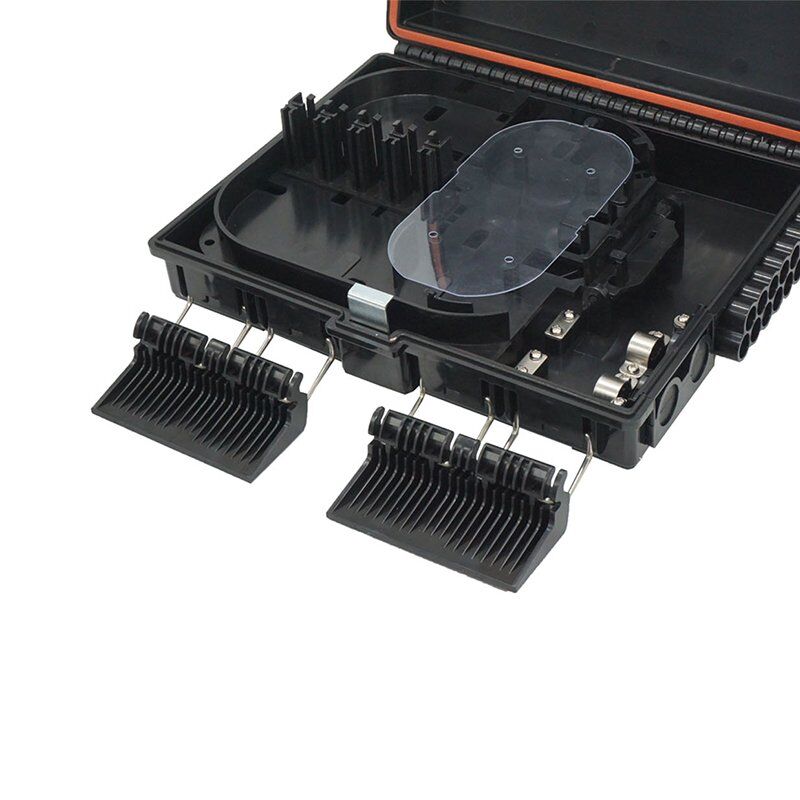

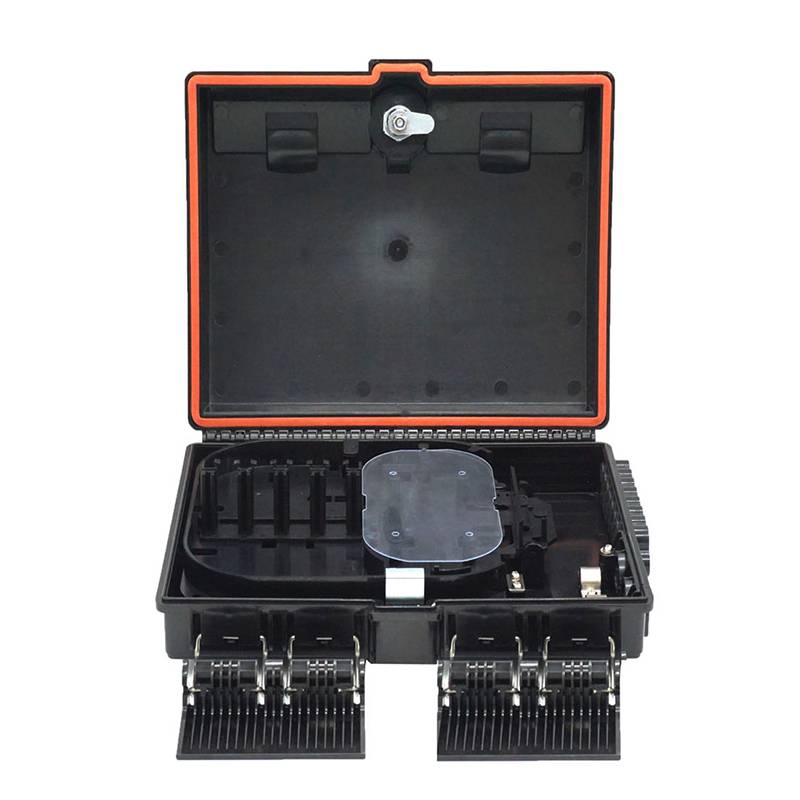

FDB-16B Series 16 ports Fiber Distribution Box, also called Splitter Distribution Box or Fiber Terminal Box, can be used in FTTH projects and is suitable for corridor, basement, room, and building’s outer walls application. With the function of the mechanical splice, fusion splice, light splitting, and wiring distributions. It can accommodate 1×16 PLC splitter. The fiber access terminal box is with Anti-UV, Ultra violet resistant, rainfall resistant, IP65 waterproof design, and can be installed outside.

The fiber optic distribution box is also designed with a special anti-theft lock, and rainproof converter adopted, and two sets of elastic compression fasteners that better achieve the waterproof effect.



  • Industry Standard User Interface, be made of high impact plastic.
  • Can accommodate 1×16 PLC splitter.
  • Anti-UV, Ultra violet resistant, and rainfall resistant.
  • Up to 16 FTTH drops.
  • Wall and pole mountable.
  • 2 inlet ports, 16 outlet ports.
  • IP65 waterproof and dust-proof plastic case
  • With Lock and rainproof cover and two sets of elastic fasteners



  • Widely used in FTTH access network.
  • Telecommunication Networks
  • CATV Networks
  • Data communications Networks
  • Local Area Networks


Order Information

Model Dimension Max.Capacity Note
FDB-16B 260*320*90mm 16 ports & splice Wall/Pole mount
