FOC-VS07 Fiber Closure Dome Heat Shrink

Fiber Optic Closure

Outdoor vertical dome closure, Heat shrink, 4 in 4 out

Share on

Fiber Optic Closure

Outdoor vertical dome closure, Heat shrink, 4 in 4 out

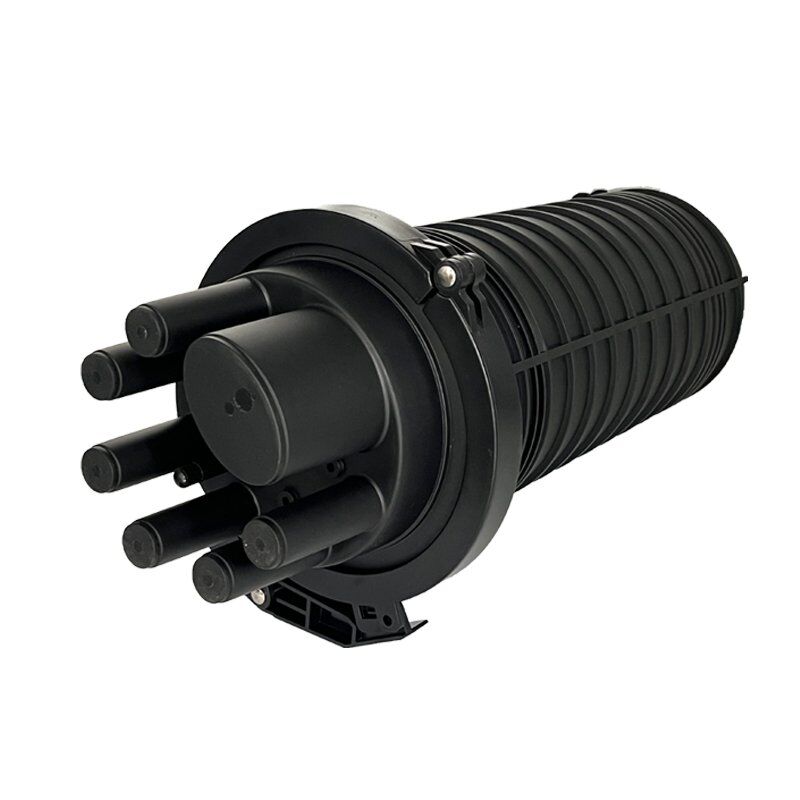

The Heat Shrink Fiber Dome Closure is designed for aerial, buried/underground above-grade, and below-grade applications; it meets the needs of anyone deploying fiber optic networks: Long haul,metro,local access, and FTTx networks. It has heat shrinkable sealing structure with 7 entrance ports on the end (6 round ports and 1 oval port).

The Dome Closure features an o-ring sealing system along with an innovative latching/locking mechanism.This combination is designed to allow simple, watertight closure sealing and re-entry.The dome closure utilizes heat shrink technology for cable sealing which helps to provide a watertight seal.

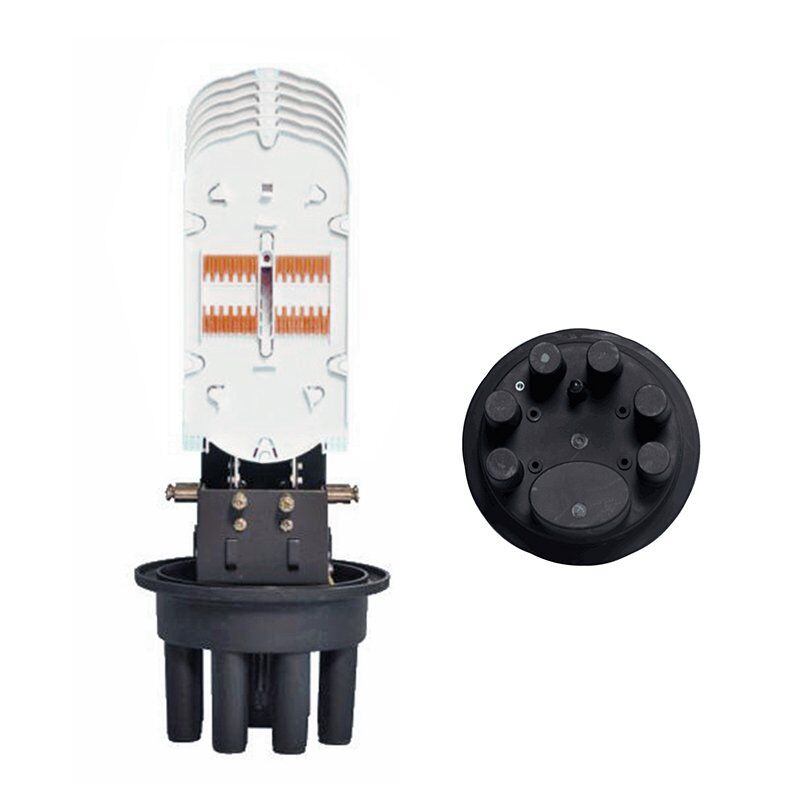

The Dome Closure is equipped with a built-in fiber management system that provides a separate area for storing, routing,protecting, and expressing buffer tubes, single and ribbon fibers.The hinged splice trays include a modular spice holder design which allows them to accept single fusion, single mechanical, and various mass fusion splices(4/6/8/12 fiber ribbon) by simply replacing the splice holder or protection event mini splitter inside.



  • The body adopts modified plastic MPP, which is high strength and corrosion resistant, has a longer lifetime, and has excellent sealing performance.

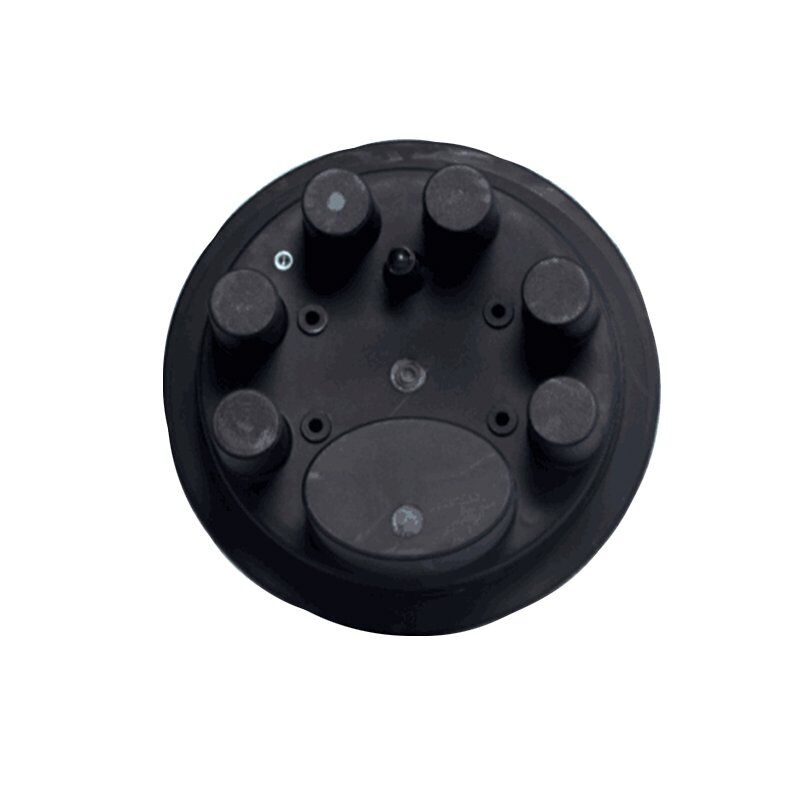

  • It has 7 cable ports in total, 6 Φ20mm round cable ports,and 1 oval port, which can let in and out 1pc Φ42mm cable or 2pcs Φ20mm cables, as for a few small size cables at the same time.
  • The closure can be reopened,which is maintenance friendly. It can work well in the outdoor environment and guarantee good sealing performance.
  • Assembled with valve core and grounding device.


Technical Specifications

Parameter Specifications
Size (D×H) mm Ф230×550
Weight 2.7kg
Oval port diameter 44x65mm
Round port diameter Φ20mm
Max capacity 144cores,6pcs 24c splice tray.
Splitting 1×16/1×32 mini PLC splitters and 18pcs/36pcsSC adaptors
Voltage Strength under 15KV direct current,without breakdown or flashover phenomenon
Insulation Resistance ≥2×104MΩ
Tensile Force ≥800N
Leakproofness inflate the closure,making internal pressure to 100Kpa, then put the closure into the water over 15min, without any bubbles or pressure drop happened
Impact Strength can bear 16N.m.after 3 impact times, there is no crack on the body
Lateral pressure-resistance ≥2000N / 10cm
Shock-resistance ≥20N.m
Working Temp. -25˚C~+60˚C
Storage Temp. -40˚C~+70˚C
Humidity 93%(+30˚C)
