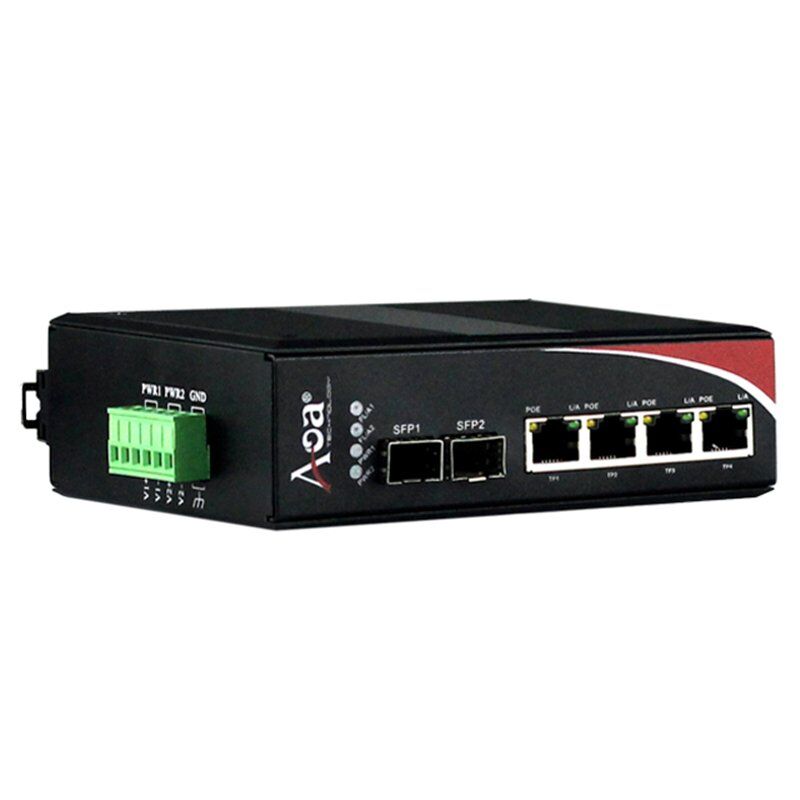

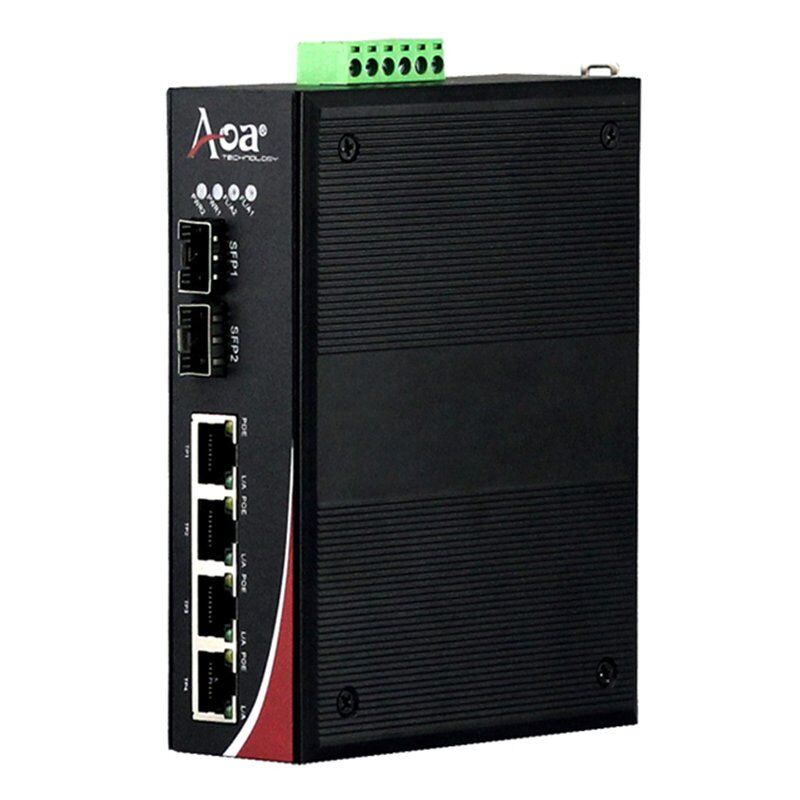

IES1204 100M Industrial Switch

Industrial Ethernet Switch

4×10/100Base-TX to 2x100Base-FX

Share on

10/100M 2FX4FE Industrial Switch



Overview

The IES1204-SFP series is a performance and cost-effective Industrial Ethernet Switch that meet the high reliability requirements of industrial network operations. It is designed to extend the distance of a network by converting Fast Ethernet data between twisted pair cabling and multi-mode or single-mode fiber-optic cabling.

The IES1204-SFP features 2 x 1000Base-X SFP Slot and 4 x 10/100Base-TX twisted-pair port. The IES1204-SFP provides two SFP slot for any MSA-complaint pluggable 155M SFP transceivers. The twisted-pair port has 4 x RJ-45 connector with a maximum operating distance of 100m.

The IES1204-SFP Industrial Fast Ethernet Switch is designed to stand up to extreme temperature, surges, vibrations, and shocks found in industrial automation, government, military, oil & gas, mining and outdoor applications, such as traffic management, oil and gas pipelines.

The IES1204-SFP series enables real-time deterministic network operation, requires no configuration and will instantly operate as soon as you power it up. Additionally, they can be installed by DIN-rail or wall-mounted, allowing users to deploy any mix of network conversions required.



Features

  • Provide 4 x 10/100Base-T(X)
  • 2 x 100Base-X SFP Slot for Daisy-Chain
  • RJ45 support auto MDI/MDI-X function
  • Auto-negotiation speed, half/full-duplex
  • Store-and-forward
  • Max packet size: 2048bytes
  • Support wide operating temperature (-40 ˚C ~ +85 ˚C)
  • Wide-range redundant power design (12~56VDC)
  • Power polarity reverse protect
  • Overload current resettable fuse present
  • IP-40 protection
  • Provide EFT protection for Power line
  • Support Ethernet ESD protection
  • DIN-Rail and Wall-Mounted Installation
  • Low power consumption



Technical Specifications

Standards IEEE802.3 10BaseT

IEEE802.3u 100BaseTX

IEEE802.3x Flow control and back pressure

IEEE802.1d Spanning Tree

Performance Processing Type : Store and Forward

Back Bandwidth: 1.2Gbps

MAC Address Size: 1024bit

Packet Buffer Size: 512Kbit

Time Delay: <10us

Frame: 2048bytes

Copper Port Data Rate: 10/100M

Connector: RJ45 x 4

Distance: 100m

Fiber Port Data Rate: 155M

Connector: SFP slot

Distance:  Up to SFP Transceivers

LED indicators PWR1: ON=Power Connected

PWR2: ON= Power Connected

FL/A:  ON=Fiber Connected; Active=Data Transmitting

L/A:   ON=Copper Connected; Active= Data Transmitting

100M: ON=100M; OFF=10M

Power Input Voltage: 12~56 VDC, redundant power inputs

Power Consumption: ≤6W

Protection: Overload Current; Reverse Polarity

Connector: Terminal Block

Environment Operating Temperature: -40 ˚C ~ +85 ˚C

Storage Temperature: –40 ˚C ~ +95 ˚C

Relative Humidity: 5-95% (no condensation)

Physical Characteristics Housing: IP40 Protection, Aluminum Alloy

Installation: DIN-rail mounting, wall mounting(with optional kit)

Dimension: 138*107*45mm(device); 220*175*73mm(packing)

Weight: 0.48kg(device); 0.63kg(device with packing)



Order Information

Model Description
IES1204-SFP 10/100M 2FX4FE, SFP Slot
Note: AC/DC power supply purchased separately



Related Products

Model Description
DIN-rail Power supply
HDR-15-24 DIN-rail 15W, 85~264Vac input, 24V0.63A output
SFP Module
SFP-M1513L-02I 155M MM 1310nm LC 2km DDM, Industrial Grade
SFP-S1513L-20I 155M SM 1310nm LC 20km DDM, Industrial Grade
SFP-S1535L-20I 155M SM TX1310/RX1550nm LC 20km DDM, Industrial Grade
SFP-S1553L-20I 155M SM TX1550/RX1310nm LC 20km DDM, Industrial Grade
Long distance 40/60/80/100/120km is available
Installation Accessories
TK12 Wall-mounted kits, 118*18*16mm, φ3.5mm L=12mm
A02 Side DIN-rail mounted kits, 72.7*70*8.5mm, φ3.5mm L=6mm
CK01 Rack-mounted bracket with Din-rail, 483*215*130mm
