Industrial Managed Switch

L2 managed, 8×10/100/1000Base-TX(POE) to 2×100/1000Base-FX



Overview

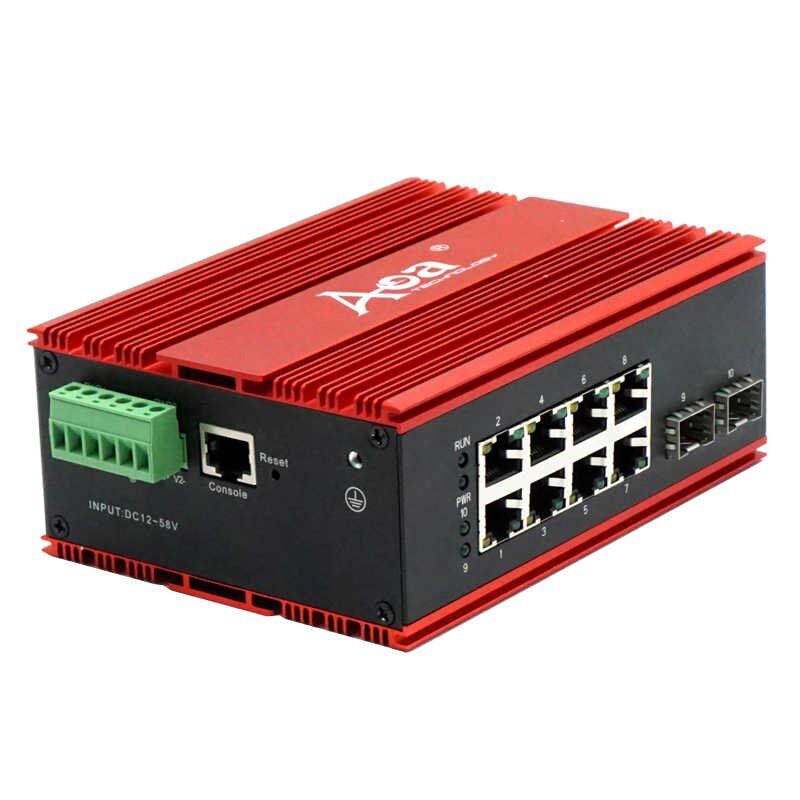

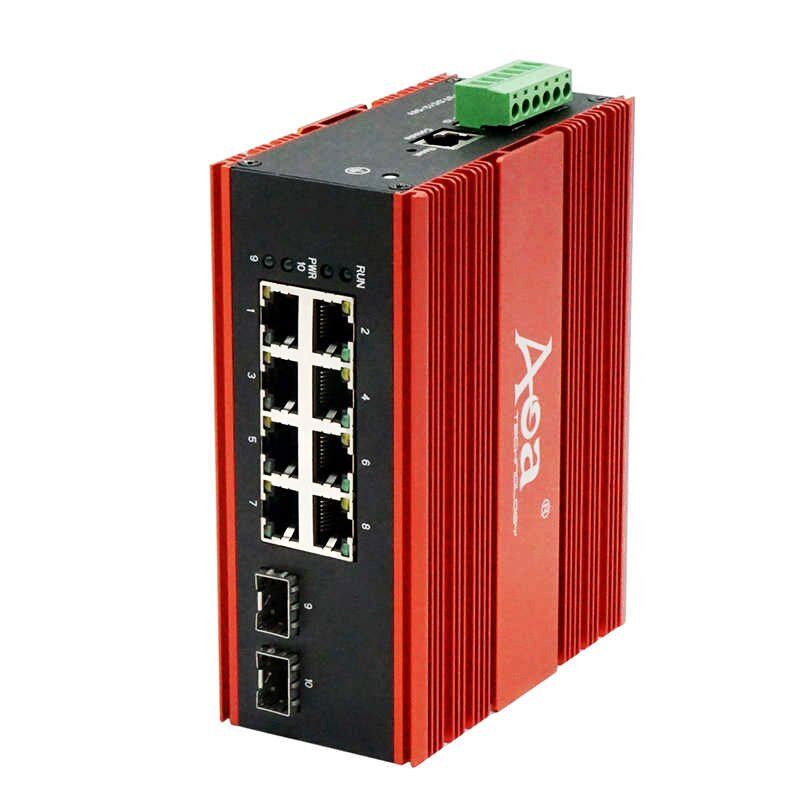

IMS3200 Industrial Managed Switch are fully managed L2 switches, adopt store-forward architecture, fan-less, and energy-saving design, providing 4/8/12-port 10/100/1000M RJ45 port and 2/4/6/12-port 1000/100M SFP port. Full-series design with protection against lightning, anti-static, and operate in -40°C~85°C for harsh environments; such as industrial automation, public security, power system, intelligent transportation systems (ITS), shipping, mining, and water conservancy fields.

The IMS3200-8P2S Managed Industrial POE Switch is the ideal solution for powering remote devices such as IP phones, video cameras, wireless access points, alarms, traffic controllers, sensors, and tracking devices, which are installed 100m away from a Power over Ethernet switch. In addition to transmitting data, the twisted-pair port injects power down the cable, allowing a remote Power over Ethernet Device to operate without needing any additional power source. All Power over Ethernet Powered Devices (IEEE 802.3af/at complaint) are supported, as the Power Sourcing Equipment (PSE) device can deliver a full 15.4W / 30W of power to the remote PD device.

Features

• IEEE803.3af/at compliant
• Support STP/RSTP/MSTP, ERPS Fast ring protocol
• Supports flow control, loop protection, link aggregation, storm suppression, mirroring, and DDM
• Support IEEE802.1Q VLAN, QinQ VLAN, protocol VLAN, Voice VLAN, Private VLAN, GVRP
• Support IGMP Snooping, MLD Snooping, suit for HD Video surveillance and video conference
• Support Web, CLI, SNMP (V1/V2/V3), Telnet management
• Support HTTPS、SSH encryption, making management more secure
• Supports RMON, system logs, and traffic statistics to facilitate network optimization
• Supports LLDP, making network maintenance simple
• Support DHCP Snooping, QoS, ACL
• Support 802.1X certification, Radius and Tacacs+ security management
• Supports CPU monitoring, Ping detection, Traceroute detection
• Support PoE Management
• Providing 6/10/14/16/24-port products, 56G switch capacity
• Support 1000/100M Auto-negotiation on SFP Port
• Adopt Industrial Level-4 design, support EFT/ESD/Surge projection
• Working Temperature -40~85°C
• 12~58Vdc dual power input
• Complete LED indicators to identify the working status quickly
• IP40 anti-oxidation aluminum alloy, weight lighter and head release rapidly



Technical Specifications

Model	6/10-port	12/14-port		16/24-port
Performance
Standard	IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.1Q VLAN, IEEE802.1d, IEEE802.1w, IEEE802.1s
Forwarding mode	Store and Forward
Switch Capacity	56Gbps/non-blocking
Packet forwarding Rate	1.488Mpps*N ( N=1G port Numbers)
MAC Address	8k
Buffer	4M
Jumbo Frame	10Kb
Ports
Copper Port	10/100/1000M RJ45 Cat5/cat6 100M
Fiber Port	1000/100M SFP Slot OM1/OM2 550m, OS1/OS2 up to 120km
Console	RS232 ( RJ45 )
PoE
Standard	IEEE802.3af/at
Pin Assignment	1/2+, 3/6-
PoE Budget	≤30W each port
Electrical characteristics
Power Input	12~58Vdc (non-PoE), 44~58Vdc (PoE)
Power Consumption	<8W		<10W		<20W
Power Connector	Terminal Block, dual input, reverse connection protection
Reverse connection	support
Relay	support
Physical characteristics
Housing	Aluminum Alloy, IP40 protection
Installation	DIN rail (Default), Wall-mounted, Rack mounted (Optional)
Heat Release	Natural
Size	138x107x56mm		170x120x60mm			170x120x74mm
Environment
Working Temperature	-40°C ~ 85°C
Storage temperature	-40°C ~ 85°C
Relative Humidity	5%-95% (no condensation)



Order Information

Model No.	Description
IMS3200-4T2S	L2, 4x 10/100/1000M RJ45, 2x SFP
IMS3200-4P2S	L2, 4x 10/100/1000M PoE, 2x SFP
IMS3200-8T2S	L2, 8x 10/100/1000M RJ45, 2x SFP
IMS3200-8P2S	L2, 8x 10/100/1000M PoE, 2x SFP
IMS3200-8T4S	L2, 8x 10/100/1000M RJ45, 4x SFP
IMS3200-8P4S	L2, 8x 10/100/1000M PoE, 4x SFP
IMS3200-8T6S	L2, 8x 10/100/1000M RJ45, 6x SFP
IMS3200-8P6S	L2, 8x 10/100/1000M PoE, 6x SFP
IMS3200-12T4S	L2, 12x 10/100/1000M RJ45, 4x SFP
IMS3200-12T12S	L2, 12x 10/100/1000M RJ45, 12x SFP
Notes: SFP, AC-DC power supply, wall-mounted, and Rack-mounted kits need to be ordered additionally



Related Products

SFP modules

Model No.	Description
SFP-M1285L-05I	SFP 1.25G MM 850nm LC 550m DDM, Industrial Grade
SFP-S1213L-20I	SFP 1.25G SM 1310nm LC 20km DDM, Industrial Grade
SFP-B1235L-20I	SFP 1.25G SM TX1310/RX1550nm LC 20km DDM, Industrial Grade
SFP-B1253L-20I	SFP 1.25G SM TX1550/RX1310nm LC 20km DDM, Industrial Grade
Notes: 40/60/80km available



DIN rail Power Supply

Model No.	Description
HDR-15-24	DIN rail 15W, 85~264Vac input, 24Vdc 0.63A output
HDR-30-24	DIN rail 36W, 85~264Vac input, 24Vdc 1.5A output
HDR-60-24	DIN rail 60W, 85~264Vac input, 24Vdc 2.5A output
NDR-75-48	DIN rail 75W, 90~264Vac input, 48Vdc 1.6A output
NDR-120-48	DIN rail 120W, 90~264Vac input, 48Vdc 2.5A output
NDR-240-48	DIN rail 240W, 90~264Vac input, 48Vdc 5A output
NDR-480-48	DIN rail 480W, 90~264Vac input, 48Vdc 10A output
