Industrial Managed Switch 10G

L2+ managed, 8*10/100/1000Base-T(PoE) + 2*1G Base-X + 4*10G/1G Base-X



Overview

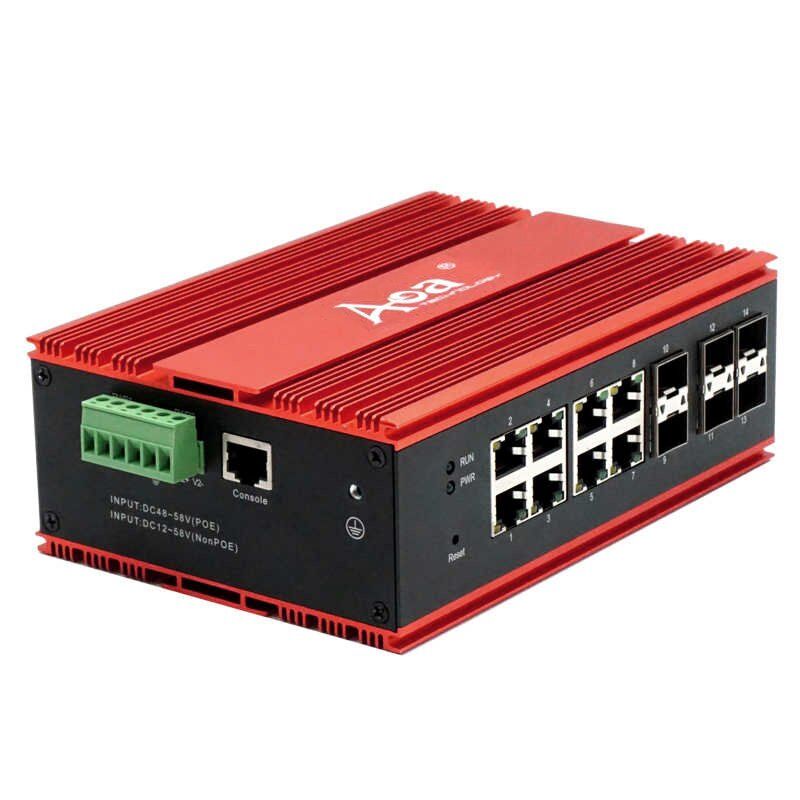

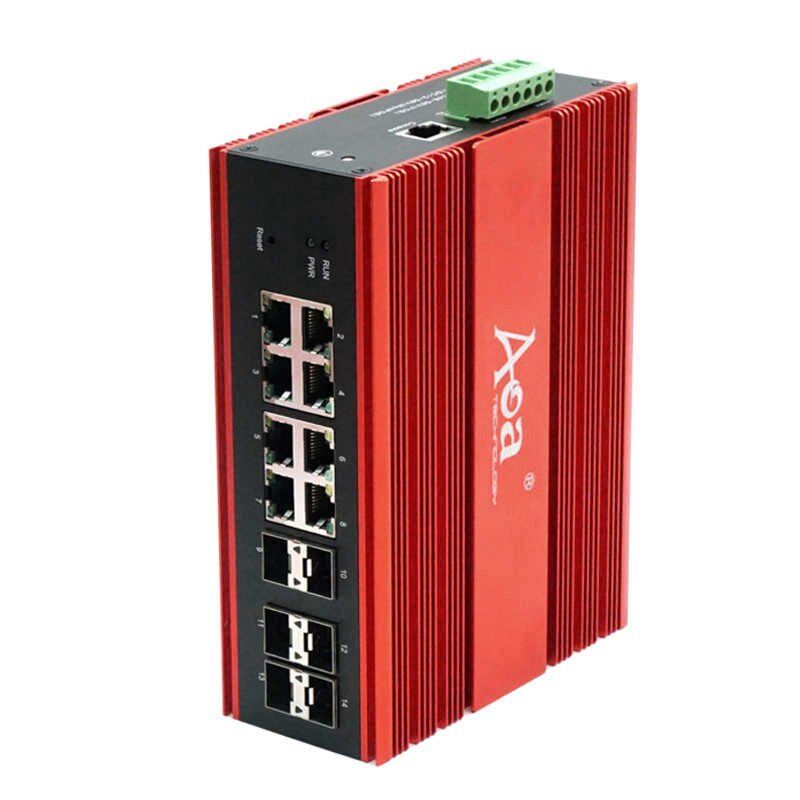

IMS5200 Industrial L2+ Managed Switch adopts the store-forward architecture, fan-less, and energy-saving design, providing 8/16/24-port 10/100/1000M RJ45 port and 4x 10G SFP+ Uplink port. Full-series design with protection against lightning, anti-static, and operate in -40°C~85°C for harsh environments; such as industrial automation, public security, power system, intelligent transportation systems (ITS), shipping, mining, and water conservancy fields.

IMS5200-8P2S4X Industrial POE Switch is the ideal solution for powering remote devices such as IP phones, video cameras, wireless access points, alarms, traffic controllers, sensors, and tracking devices, which are installed 100m away from a Power over Ethernet switch. In addition to transmitting data, the twisted-pair port also injects power down the cable, allowing a remote Power over Ethernet Device to operate without any additional power source. All Power over Ethernet Powered Devices (IEEE 802.3af/at complaint) are supported, as the Power Sourcing Equipment (PSE) device can deliver a full 15.4W / 30W of power to the remote PD device.



Features

• Support static routing, RIPv1/v2, OSPFv2, VRRP, BGP dynamic routing and policy routing
• Support STP/RSTP/MSTP, ERPS Fast ring protocol
• Supports flow control, loop protection, link aggregation, storm suppression, mirroring, and DDM
• Support IEEE802.1Q VLAN, QinQ VLAN, protocol VLAN, Voice VLAN, Private VLAN, GVRP
• Supports SP, WRR, SP+WRR scheduling, ensure priority flow forwarding
• Support IGMP Snooping, MLD Snooping, suit for HD Video surveillance and video conference
• Support Web, CLI, SNMP(V1/V2/V3), Telnet management
• Support HTTPS、SSH encryption, making management more secure
• Supports RMON, system logs, and traffic statistics to facilitate network optimization
• Supports LLDP, making network maintenance simple
• Support DHCP Snooping, Qos, ACL
• Supports 802.1X authentication and MAC address filtering, ensures the legitimacy of access users
• Supports CPU monitoring, Ping detection, Traceroute detection
• Support PoE Management
• Providing 8/16/24-port gigabit access and 4x 10G uplink products
• Adopt Industrial Level-4 design, support EFT/ESD/Surge projection
• Working Temperature -40~85°C
• 12~58Vdc or 100~240Vac dual input
• Complete LED indicators to identify the working status quickly
• IP40 anti-oxidation aluminum alloy, weight lighter and head release rapidly



Technical Specifications

Model	14-port Din Rail	28-port Rack-mounted
Performance
Standards	IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.2an, IEEE802.3ae IEEE802.3z, IEEE802.3x, IEEE802.1Q VLAN, IEEE802.1d, IEEE802.1w, IEEE802.1s
Forwarding mode	Store and Forward
Switch Capacity	128Gbps/non-blocking
Packet forwarding Rate	Refer to the datasheet product list
MAC Address	16k
Buffer	12M
Jumbo Frame	10k
Ports
Copper port	10/100/1000M RJ45 Cat5/cat6 100M
1G Fiber Port	1000/100M SFP Slot OM1/OM2 550m, OS1/OS2 up to 120km
10G Fiber Port	10G SFP+ Slot OM3 300m, OS1/OS2 up to 120km
Console	RS232 ( RJ45 )
PoE
Standard	IEEE802.3af/at
Pin Assignment	1/2+, 3/6-
PoE Budget	≤30W
Electrical characteristics
Power Input	12~58Vdc, 44~58Vdc(PoE)	100~240Vac 50/60Hz dual input
Power Consumption	Refer to spec
Power connector	Terminal block
Reverse polarity	support	/
Physical characteristics
Housing	Metal, IP40 protection
Installation	DIN rail, Wall-mounted (Optional)	Rack-mounted
Heat Release	Natural
Size	170x120x60mm	440x270x43.6mm
Environment
Working Temperature	-40°C ~ 85°C
Storage temperature	-40°C ~ 85°C
Relative Humidity	5%-95% (no condensation)
Certification
Safety	EN62368
EMC	EN55032 Class A, FCC part 15 Subpart B Class A EN 61000-3-2  Class A EN 61000-3-3  Class A EN 61000-4-2 Level 4 Contact: 8kV ,Air: +15kV EN 61000-4-3 Level 4 EN 61000-4-4 Level 4 Power: ±4kV; Signal: ±2kV EN61000-4-5 Power: 6kV, Copper: Comm 4kV, diff. 2kV EN 61000-4-6 Level 3 EN 61000-4-8 Level 4 30A/m EN 61000-4-11 Voltage dip/interruption
RoHS	RoHS 2.0
Reliability
Shock	IEC 60068-2-27
Free fall	IEC 60068-2-32
Vibration	IEC 60068-2-6



Order Information

Model No.	Description
IMS5200-8T4X	L2+, 8x 10/100/1000M RJ45, 4x 10G SFP+
IMS5200-8P4X	L2+, 8x 10/100/1000M PoE, 4x 10G SFP+
IMS5200-8B4X	L2+, 8x 10/100/1000M PoE(bt), 4x 10G SFP+
IMS5200-8T2S4X	L2+, 8x 10/100/1000M RJ45, 2x 1G SFP, 4x 10G SFP+
IMS5200-8P2S4X	L2+, 8x 10/100/1000M PoE, 2x 1G SFP, 4x 10G SFP+
IMS5200-8B2S4X	L2+, 8x 10/100/1000M PoE(bt), 2x1G SFP, 4x 10G SFP+
IMS5200-24T4X-2A	L2+, 24x 10/100/1000M RJ45, 4x 10G SFP+, Dual AC input
IMS5200-16T8C4X-2A	L2+, 16x 10/100/1000M RJ45, 8x 1G Combo, 4x 10G SFP+, Dual AC input
IMS5200-16S8C4X-2A	L2+, 16x 1G SFP, 8x 1G combo, 4x 10G SFP+, Dual AC input
IMS5200-16P8C4X-AC	L2+, 16x 10/100/1000M PoE, 8x 1G Combo, 4x 10G SFP+, AC input



Related Products

SFP modules

Model No.	Description
SFP-M1285L-05I	SFP 1.25G MM 850nm LC 550m DDM, Industrial Grade
SFP-S1213L-20I	SFP 1.25G SM 1310nm LC 20km DDM, Industrial Grade
SFP-B1235L-20I	SFP 1.25G SM TX1310/RX1550nm LC 20km DDM, Industrial Grade
SFP-B1253L-20I	SFP 1.25G SM TX1550/RX1310nm LC 20km DDM, Industrial Grade
SFP-M1085L-03I	SFP+ 10G MM 850nm LC 300m DDM, Industrial Grade
SFP-S1013L-20I	SFP+ 10G SM 1310nm LC 20km DDM, Industrial Grade
SFP-B1023L-20I	SFP+ 10G SM TX1270/RX1330nm LC 20km DDM, Industrial Grade
SFP-B1032L-20I	SFP+ 10G SM TX1330/RX1270nm LC 20km DDM, Industrial Grade
Notes: 40/60/80km available



DIN rail Power Supply

Model No.	Description
HDR-15-24	DIN rail 15W, 85~264Vac input, 24Vdc 0.63A output
HDR-30-24	DIN rail 36W, 85~264Vac input, 24Vdc 1.5A output
HDR-60-24	DIN rail 60W, 85~264Vac input, 24Vdc 2.5A output
NDR-75-48	DIN rail 75W, 90~264Vac input, 48Vdc 1.6A output
NDR-120-48	DIN rail 120W, 90~264Vac input, 48Vdc 2.5A output
NDR-240-48	DIN rail 240W, 90~264Vac input, 48Vdc 5A output
NDR-480-48	DIN rail 480W, 90~264Vac input, 48Vdc 10A output
