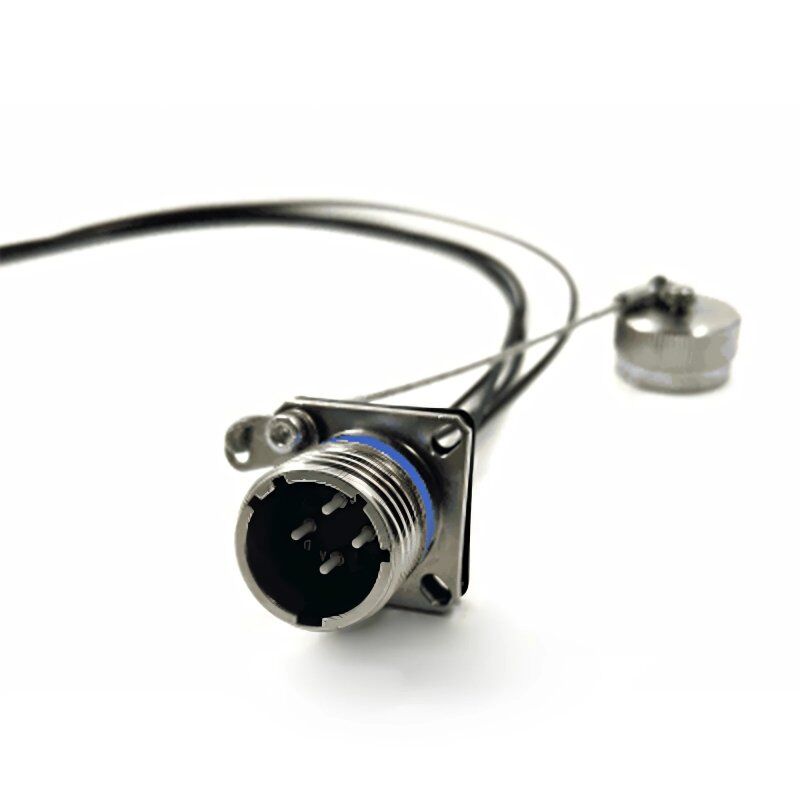

J599/A8 Rugged Fiber Connector

Outdoor Fiber Optic Patch Cord

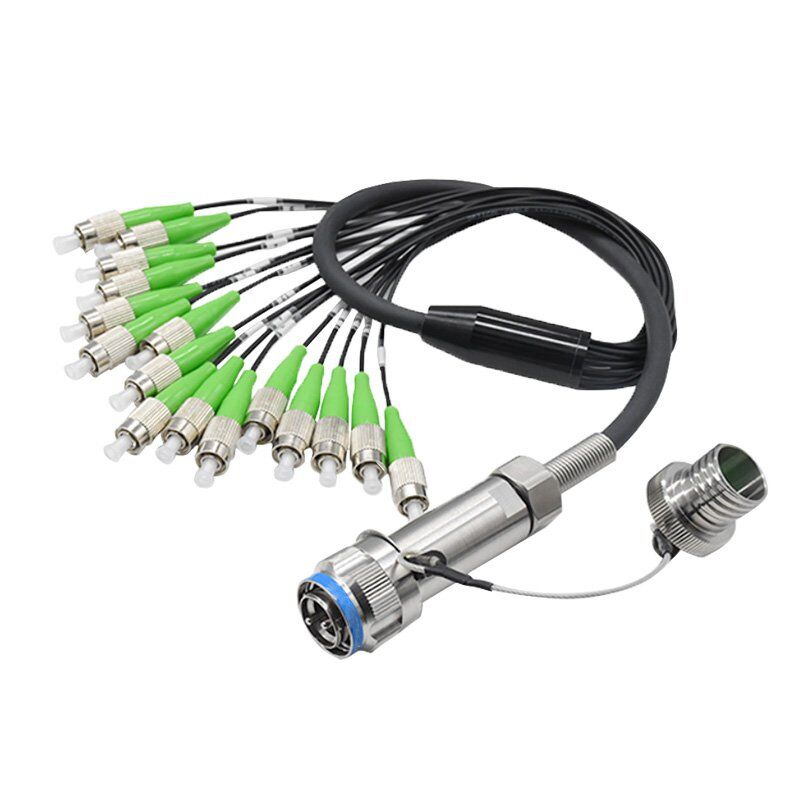

J599 A8 ruggedized fiber Connector

Share on

Outdoor Fiber Optical Patch Cord

J599 A8 ruggedized fiber Connector



Overview

The J599/A8 series products are based on J599Ⅲ series fiber optic connectors with improved design, adopting standard Φ1.25mm neutral contacts, removable sleeve retention parts (ASR parts), and precision pin guiding structure, which provide higher contact density, better optical performance, higher shock and vibration resistance, and more convenient cleaning and maintenance. The J599/A8 rugged fiber optic connector uses five-button positioning, with blind insertion and anti-error insertion function. The joint is quickly connected with three threads with anti-loosening structure, and the ceramic pin and housing are used to realize optically precise docking.



Features

  • Comply with J599A (MIL-DTL-38999)III standard, performance in accordance with ARINC801 standard.
  • Outer shells made from a variety of materials can meet a wide range of harsh environmental and electromagnetic shielding requirements.
  • Header Docking uses five-key positioning, achieving blind insertion and preventing miss-insertion.
  • Adopts a three-headed thread for quick connection and has an anti-loosening structure
  • With single-core, 2-core, 4-core, 6-core, 8-core, 12-core and other specifications for selection



Applications

  • WiMAX and LTE Base Stations
  • Remote Radio Heads (RRH)
  • Industrial outdoor applications
  • Power Systems
  • Mining
  • Airborne communication
  • Marine telecommunication



Technical Specifications

Parameter Specifications
Insertion Loss SM: ≤1.0dB   MM: ≤0.6dB
Return Loss SM: ≥50dB
Insulation Resistance 500VDC ≥5000MΩ(normal environment)
Contact Resistance ≤10mΩ
Mechanical Behavior Plug: ≤500N(Main cable)

Socket: ≤30N(Branch cable)



Connector Type

J599 types ruggedized fiber optic connectors
