Portable Tactical Fiber Systems Cable Reel



Overview

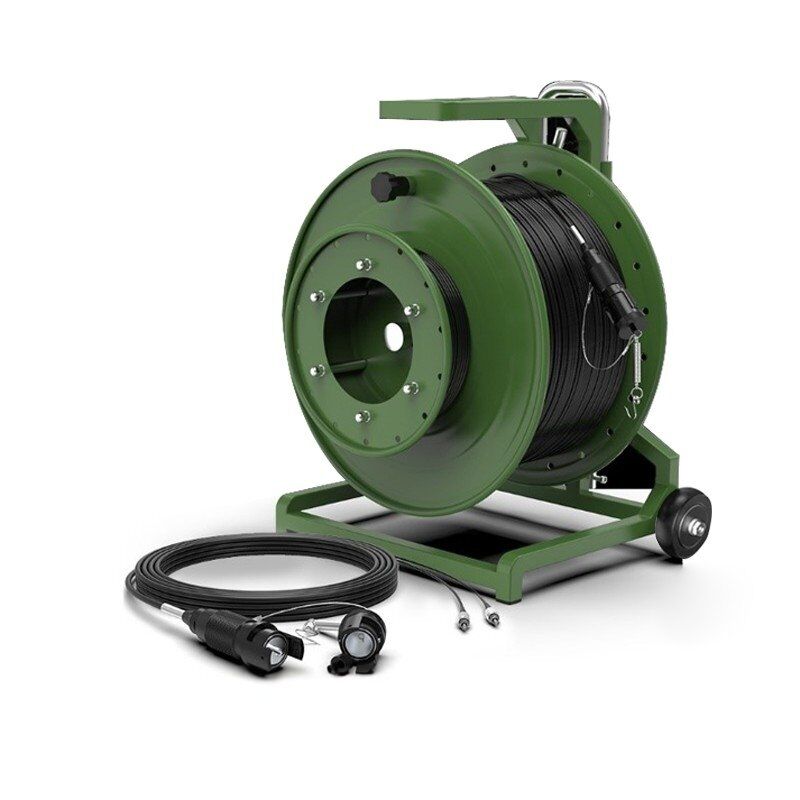

The mobile, pre-terminated armored optical cable reel has been developed for temporary field deployment where fiber connections are required. It is supplied in a portable cable reel for ease of transportation and deployment. The armored cable is flexible and can withstand multiple usages without kinks. The rugged fiber optic cable connectors offer excellent strength, durability, and protection against dirt and damage during remote connection.

The tactical fiber systems cable assembly is available for repeated deployment and retrieval in outdoor harsh environments. The cable and connector types are available in a variety of options, with lengths to suit your requirements. This determines the size of the reel.



Features

  • Internal fiber contacts prevent contamination and damage to fiber ends
  • High impact and crush resistance
  • Stainless steel dust caps are durable and waterproof
  • Precision machined stainless steel for durability
  • Adjustable cam-lock drag brake
  • Handle permanently attached to disc – direct crank rewind
  • Storage drum extensions for breakout and easy access



Applications

  • Fibre optic data transmission system;
  • Shipboard, Aerospace;
  • Automotive Commercial.
  • Vehicle-based communications
  • Temporary field connections for emergency fiber optic communications



Connector Technical Specifications

Parameter Specifications
Insertion Loss SM: ≤0.6dB   MM: ≤0.5dB
Return Loss SM: ≥50dB
Insulation Resistance 500VDC ≥5000MΩ(normal environment)
Mechanical Behavior Plug pull≧500N

Socket pull≧30N

Mechanical life 1000 times
Protection level IP68
Operating temperature -45℃ ~ 85℃
