YZ Rugged Fiber Connector

Outdoor Fiber Optic Patch Cord

YZ ruggedized fiber Connector

Share on

Outdoor Fiber Optical Patch Cord

YZ ruggedized fiber Connector



Overview

The YZ series outdoor rugged fiber optic connector is a kind of multi-core, neutral, bayonet locking circular fiber optic connector by GJB1919 standards, including two kinds of movable connector and car wall connector.

The YZ ruggedized fiber optic connector shell is made of high-quality aluminum alloy or polymer composite material, which has excellent performance of vibration resistance, pressure resistance, waterproof, salt fog proof, and dust proof. Product specifications are 2 pins, 4 pins, 6 pins, 8 pins, 12 pins.



Features

  • Comply with GJB 1919 standard
  • Adopts neutral bayonet-type locking, which can achieve quick connection and separation
  • Through-the-wall sealed connection structure can be connected to 2, 4, 6, and 8 optical fibers at a time
  • Neutral structure design regardless of male and female, plugs and sockets can be arbitrarily interconnected
  • Outer shell can choose two kinds of aluminum alloy material or polymer composite material
  • Adopts ceramic ferrule and ceramic sleeves to achieve precision optical fiber docking.



Applications

  • Vehicle-based communications
  • Temporary field connections for emergency fiber optic communications
  • Airborne or shipboard systems and equipment



Technical Specifications

Parameter Specifications
Insertion Loss SM: ≤0.6dB   MM: ≤0.5dB
Return Loss SM: ≥50dB
Insulation Resistance 500VDC ≥5000MΩ(normal environment)
Mechanical Behavior Plug pull≧500N

Socket pull≧30N

Mechanical life 1000 times
Protection level IP68
Operating temperature -45℃ ~ 85℃



Related Products

Outdoor harsh environment fiber optical cable reel

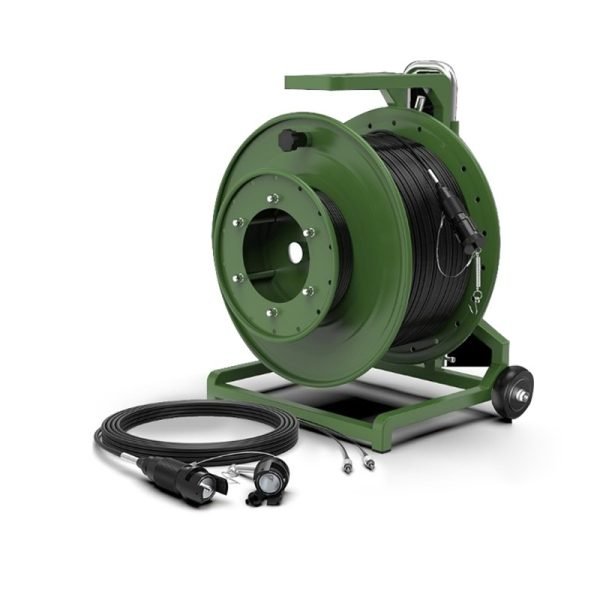

YZ Connector plug and Cable Drum_tactical fiber optic cable reels_armored Cable with military Reel
