MP-R1U MPO Rack 1U

MPO High Density Patch Panel

19 inch 1U MPO/MTP-LC 24/48/72/96/144 core

Share on

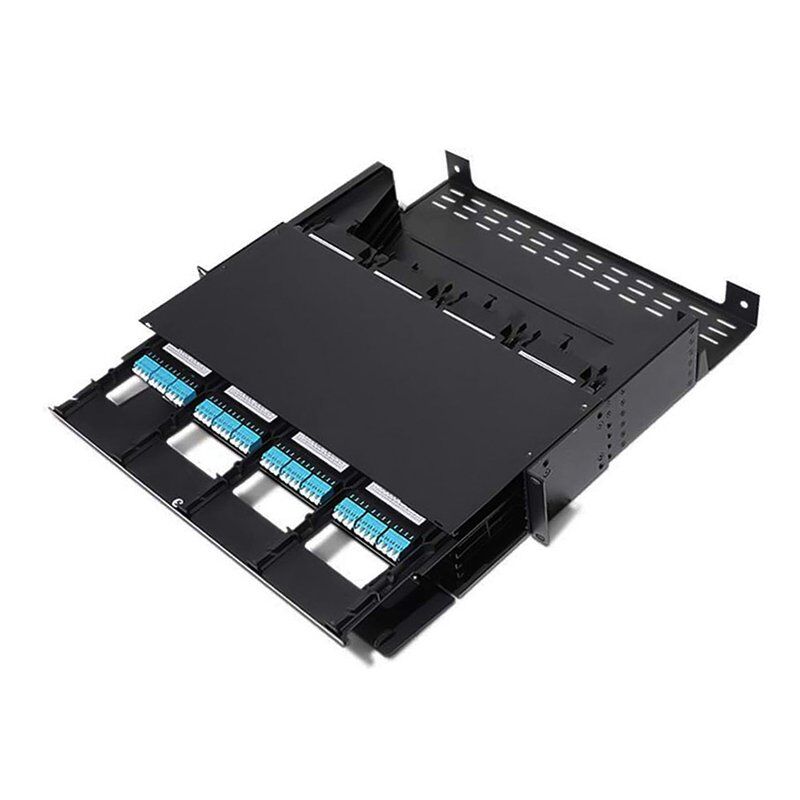

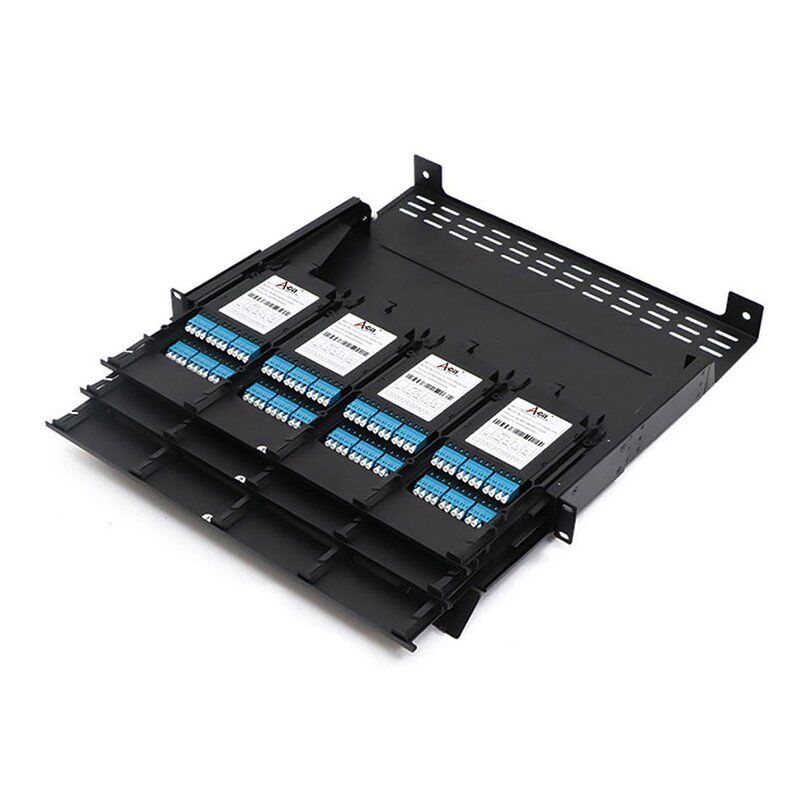

Overview

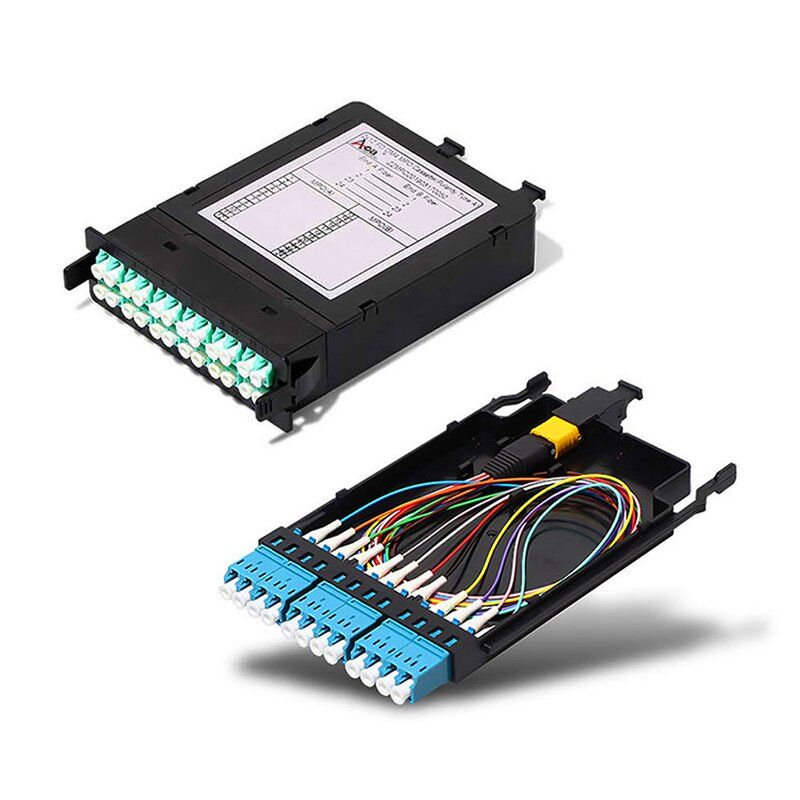

Typical MPO fiber optic patch panel is with 1U 19 standard size, inside the patch panel, it can be splice trays with 1XN MPO fiber cable assemblies, or it can use our MPO fiber optic cassette to integrate into the patch panel, the 1U MPO fiber patch panel can be with max 48 cores or 72 cores output optical strand, the output connectors can be SC/FC/ST/LC.



Features

  • Finishing: powder coated
  • Fits into 19 inch installations
  • Max capacity up to 144 fiber for 1U
  • Sliding tray design
  • Easy to operate and maintain



Applications

  • Data Center Testing
  • Equipment loop test
  • Transceiver test
  • Telecommunication networks



Technical Specifications

MTP MPO Optical Performance

Type Unit Description
MPO/MTP connector Standard

SM MT

Low Loss(Elite)

SM MT

Standard

MM MT

Low Loss(Elite)

MM MT

Insertion Loss Typical (dB) 0.35 0.20 0.35 0.20
Max (dB) 0.75 0.35 0.60 0.35
Return Loss (dB) APC≥60, PC≥50 ≥20 for PC
Male / Female Male: With Pins   Female: Without Pins
Wavelength (nm) Single Mode: 1310/1550   Multi-mode: 850/1300
Transmission Distance (m) OM4: 150m(40/100G), 500m(10G)                        OM3: 100m(40/100G), 300m(10G)



LC Optical Performance

Type Single mode(UPC) Single mode(APC) Multi-mode (PC)
Insertion loss ≤0.2 dB ≤0.2 dB ≤0.2 dB
Return Loss ≥50 dB ≥60 dB ≥35 dB
