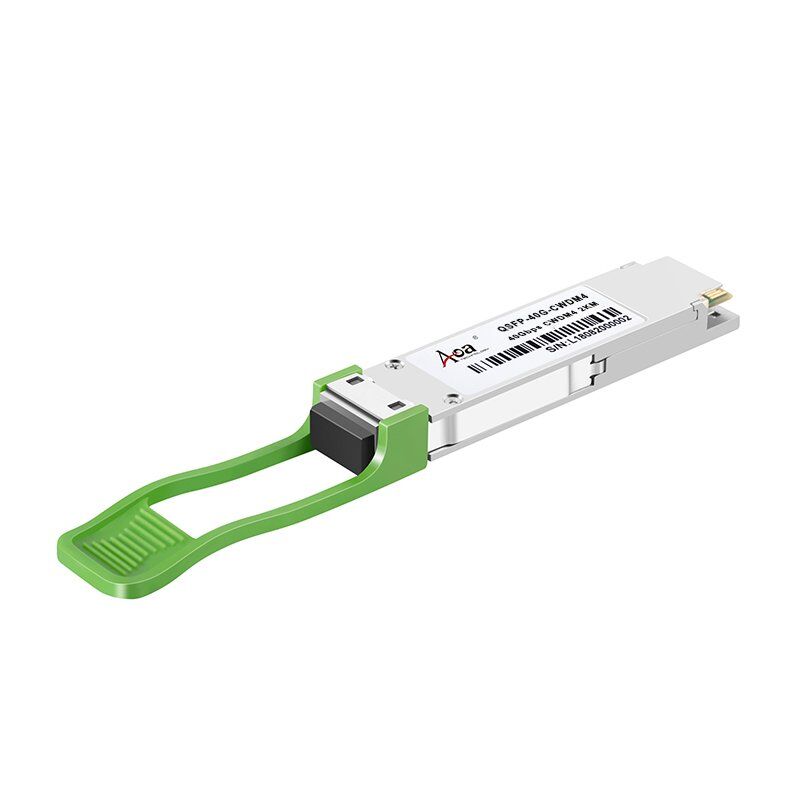

QSFP-40G-CWDM 40G QSFP Module 10KM
Optical SFP Module
40Gbps QSFP+ Transceiver, CWDM4, 10KM
Share on
QSFP-40G-CWDM
40Gbps QSFP+ Transceiver, CWDM4, 10KM
Features
- High Channel Capacity: 40 Gbps per module
- Transmission data rate up to 11.2Gbps per channel
- Duplex LC receptacle
- 4 parallel lanes design
- Maximum link length of 10km
- Hot Pluggable QSFP+ form factor
- Real Time Digital Diagnostic Monitoring
- Maximum power consumption 2.5W
- Single +3.3V power supply
- Compatible with RoHS
- Commercial operating case temperature: 0 to +70°C
Application
- 40GBASE-LR4 40G Ethernet links
- Infiniband QDR, DDR and SDR
- Datacenter and Enterprise networking
Standard
- Compliant with IEEE 802.3ba
- Compliant with QSFP+MSA
- Compliant with SFF-8436
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
| Supply Voltage | Vcc | 0 | 3.6 | V |
| Storage Temperature | Ts | -40 | +85 | °C |
| Operating Humidity | – | 5 | 95 | % |
Recommended Operating Conditions
| Parameter | Symbol | Min | Typical | Max | Unit |
| Operating Case Temperature (Commercial) | Tc | 0 | +70 | °C | |
| Power Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V |
| Power Dissipation | Pm | 2.5 | W | ||
| Data Rate | 10.3125 | 11.2 | Gbps | ||
| Control Input Voltage High | 2 | Vcc | V | ||
| Control Input Voltage Low | 0 | 0.8 | V | ||
| Fiber Length 9/125μm core SMF | – | – | 10 | KM |
Ordering information
| Part. No | Specifications | ||||||||
| Pack | Rate
(Gbps) |
Tx
(nm) |
Po
(dBm) |
RX | Sen
(dBm) |
Temp
(℃) |
Reach
(km) |
DDM | |
| QSFP-40G-CWDM | QSFP+ | 41.25G | DFB CWDM4 | -7.0~2.3 | PIN | <-11.5 | 0~70 | 10 | Y |
