Fiber Patch Panel

Rack Mounted Fix Type



Overview

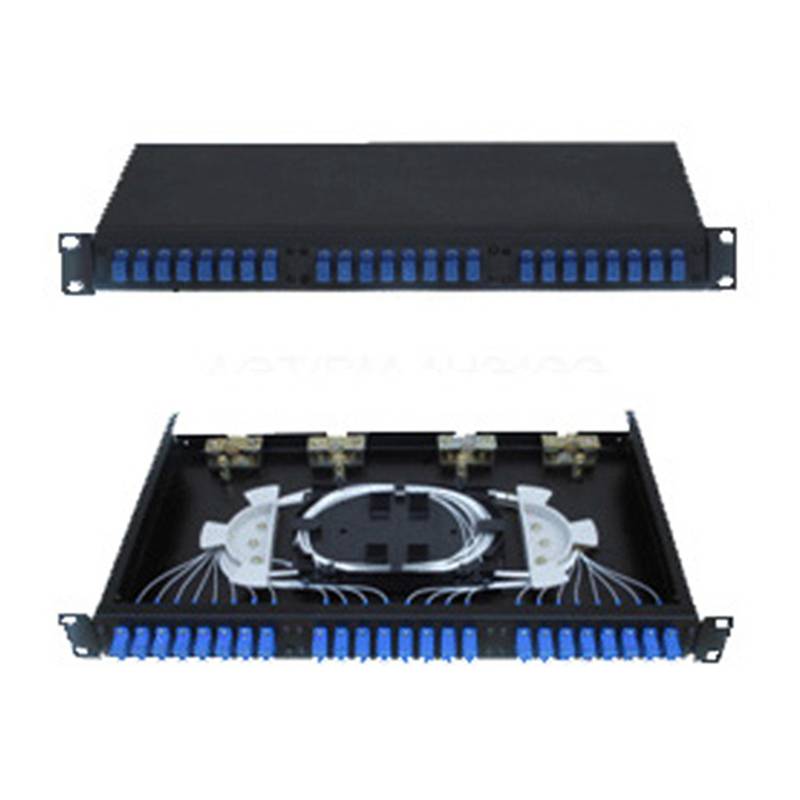

AOA Tech RMF Series is Fix Type of Rack Mounted Standard Fiber Patch Panel also called Fiber Terminal Box, which provides port numbers of 12, 24, or 48ports. It is suitable for use in telecommunication networks, central office optical cable systems, and premise fiber networks. One cabinet design provides OSP cable fibers and pigtail splicing, patch cords termination, and storage. Each Terminal Box can fully load with panels, adapters, splices trays, and accessories and is ready for installation.



Features

• 19″ Rack, cabinet mountable
• One cabinet design provides OSP cable fibers and pigtail splicing, patch cord termination, and storage.
• Aluminum housing, epoxy coating, beige color, and powder coating are optional.
• FC/SC/ST/Others Adapters for Option, available.



Application

• Local Area Network
• CATV Network
• FTTx System
• Wide Area Network
• Test Instruments



Order Information

Model No.	Dimension (mm)	Max Capacity (Cores)	Remark
RMF-1U12SC	430 x 250 x 44.5(1U)	12	The case body is made from cold rolled steel plate, and the surface use the technique of electrostatic spraying, available for the installation of FC, SC, ST, LC adapters.
RMF-1U24SC	430 x 250 x 44.5(1U)	24
RMF-2U48SC	430 x 250 x 89(2U)	48
RMF-1U12FC	430 x 250 x 44.5(1U)	12
RMF-1U24FC	430 x 250 x 44.5(1U)	24
RMF-2U48FC	430 x 250 x 89(2U)	48
RMF-1U12ST	430 x 250 x 44.5(1U)	12
RMF-1U24ST	430 x 250 x 44.5(1U)	24
