RMP Fiber Patch Panel
Fiber Patch Panel
Rack Mounted Slide Type fixed with fiber panel for SC, FC, ST
Share on
Fiber Patch Panel
Rack Mounted Slide Type fixed with fiber panel for SC, FC, ST
Overview

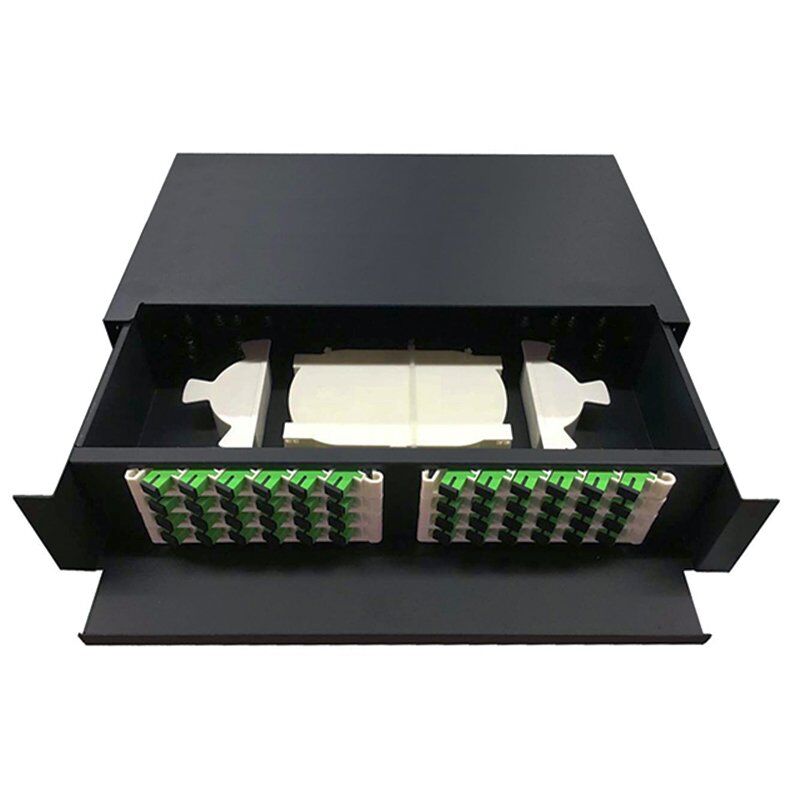

AOA Tech RMP Series is a Sliding Type of Rack Mount Slide Fiber Patch Panel also called Fiber Terminal Box, ranging from 12 ports to 96 ports. It is suitable for use in telecommunication networks, central office optical cable systems, and premise fiber networks. One cabinet design provides OSP cable fibers and pigtail splicing, patch cords termination, and storage. Each Terminal Box can fully load with panels, adapters, splices trays, and accessories and is ready for installation.
AOA Tech RMP Series fiber patch panel is specially designed for FC, SC, and ST three types of adapters. That can Effectively reduce inventory and ease of use.
Features
- 19″ Rack, cabinet mountable
- One cabinet design provides OSP cable fibers and pigtail splicing, patch cord termination, and storage.
- Slide-out features and Modular Adaptor Panel for ease of Installation, Inspection, and Testing.
- Aluminum housing, epoxy coating, beige color, and powder coating are optional.
- Fiber panels are designed for FC, SC, and ST three types of adapters
Application
- Local Area Network
- CATV Network
- FTTx System
- Wide Area Network
- Test Instruments
Order Information
| Model No. | Dimension (mm) | Max Capacity (Cores) | Remark |
| RMP-1U12 | 430 x 300 x 44.5(1U) | 12 | The case body is made from cold rolled steel plate, and the surface use the technique of electrostatic spraying, available for the installation of FC, SC, ST, LC adapters. |
| RMP-1U24 | 430 x 300 x 44.5(1U) | 24 | |
| RMP-2U48 | 430 x 300 x 89(2U) | 48 | |
| RMP-3U72 | 430 x 300 x 133.5(3U) | 72 | |
| RMP-4U96 | 430 x 300 x 178(4U) | 96 |
