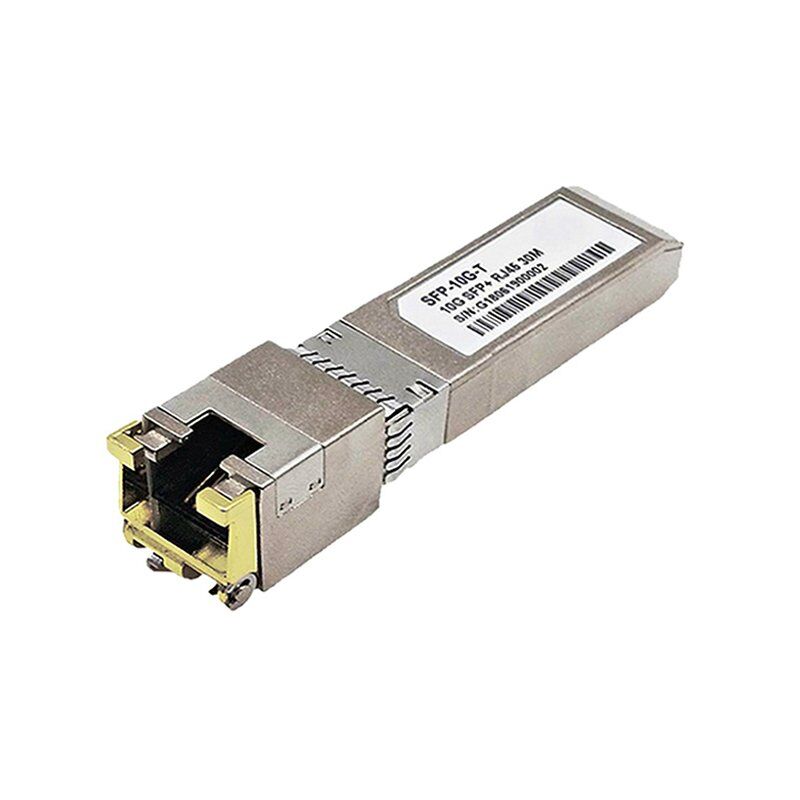

SFP-10G-T

10G Copper SFP+ RJ45 30M



Features

• Up to 10Gb/s bi-directional data links
• Access to physical layer IC via 2-wire serial bus
• Compact RJ-45 connector assembly
• Hot-pluggable SFP+ footprint
• Supports Links up to 30m using Cat 6a/7 Cable
• Fully metallic enclosure for low EMI
• Low power dissipation
• Compatible with RoHS
• Operating case temperature: 0 to +70°C



Application

• 10 Gigabit Ethernet over Cat 6a/7 cable



Description

SFP-10G-T Copper Small Form Pluggable (SFP) transceivers are high performance, cost effective module compliant with the 10G Ethernet and 10GBASE-T standards as specified in IEEE 802.3az, which supporting 10Gbps data- rate up to 30 meters reach over unshielded twisted-pair category 6a/7 cables. The module provides standard serial ID information compliant with SFP+ MSA, which can be accessed with address of A0h via the 2wire serial EEPROM protocol. The physical IC can also be accessed via 2wire serial bus at address A0h.



Specification

+3.3V Volt Electrical Power Interface
Parameter	Symbol	Min	Typical	Max	Unit	Notes
Input Voltage	Vcc	3.13	3.3	3.47	V
Supply Current	Icc		700	900	mA	3.0W max power over full range of voltage and temperature.See caution note below
Maximum Voltage	Vmax	-0.3		4.0	V
Surge Current	Surge		TBD		mA
Current		current See caution note



Ordering information

Model No.	Product Description
SFP-10G-T	10G, RJ45, Copper SFP+, 0~70°C
