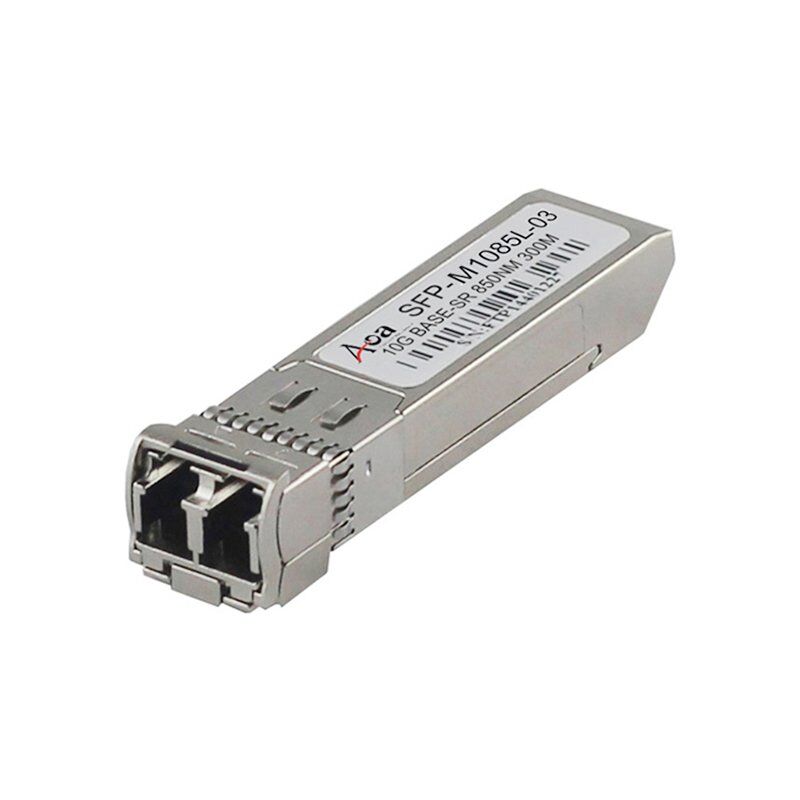

SFP-M1085L-03 10G SFP Module 300M
Optical SFP Module
10Gbps SFP+ Transceiver MM 850nm 300m LC
Share on
SFP-M1085L-03
10Gbps SFP+ Transceiver MM 850nm 300m LC
Features
- Supports up to 10.7Gbps bit rates
- 850nm VCSEL laser and PIN photodiode, Up to 300m for OM3-MMF transmission
- Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
- Hot-pluggable SFP+ footprint
- Real Time Digital Diagnostic Monitoring
- Single +3.3V power supply
- Compatible with RoHS
- Operating case temperature: Commercial: 0℃ to +70℃ Industrial: -40℃ to +85℃
Application
- 10GBASE-SR& 10G Ethernet
- 10G Fiber Channel
Standard
- Compliant with MSA SFP specification(SFF-8431, SFF-8432, SFF-8472)
- Compliant with IEC
- Compliant with IEEE 802.3ae
Description
The SFP+ transceivers are high performance, cost effective modules supporting data rate of 10.3Gbps.
The transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
| Supply Voltage | Vcc | -0.5 | 4.5 | V |
| Storage Temperature | Ts | -40 | +85 | °C |
| Operating Humidity | – | 5 | 85 | % |
Recommended Operating Conditions
| Parameter | Symbol | Min | Typical | Max | Unit | |
| Operating Case Temperature | Standard | Tc | 0 | +70 | °C | |
| Industrial | -40 | +85 | °C | |||
| Power Supply Voltage | Vcc | 3.135 | 3.30 | 3.465 | V | |
| Power Supply Current | Icc | 260 | mA | |||
| Data Rate | 10.3 | 10.7 | Gbps | |||
| Transmission Distance | 300 | m | ||||
Ordering information
| Model No. | Product Description |
| SFP-M1085L-03 | 10Gbps, 850nm, LC, 300m, 0°C~+70°C, with DDM |
| SFP-M1085L-03I | 10Gbps, 850nm, LC, 300m, -40°C~+85°C, with DDM |
