Optical SFP Module

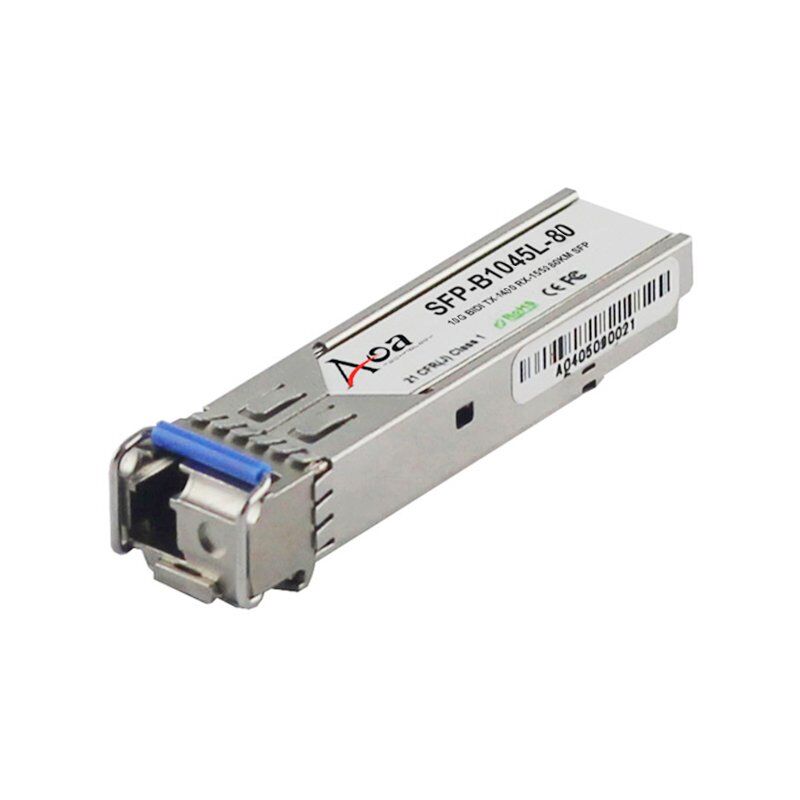

10Gbps SFP+ Transceiver Bi-Di TX1490/RX1550nm 80KM LC
Share on
Features
Application
Standard
Description
The SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 80km transmission distance with SMF.
The transceiver consists of three sections: a EML laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
Absolute Maximum Ratings
Parameter | Symbol | Min | Max | Unit |
Supply Voltage | Vcc | -0.3 | 4 | V |
Storage Temperature | Ts | -40 | +85 | °C |
Operating Humidity | – | 5 | 85 | % |
Recommended Operating Conditions
Parameter | Symbol | Min | Typical | Max | Unit | |
Operating Case Temperature | Standard | Tc | 0 | +70 | °C | |
Industrial | -40 | +85 | °C | |||
Power Supply Voltage | Vcc | 3.135 | 3.30 | 3.465 | V | |
Power Supply Current | Icc | 450 | mA | |||
Data Rate | 9.95 | 10.3 | 11.1 | Gbps | ||
Transmission Distance | 80 | km |
Ordering information
Model No. | Product Description |
SFP-B1045L-80 | 10Gbps, TX1490/RX1550, LC, 80km, 0°C~+70°C, with DDM |
SFP-B1045L-80I | 10Gbps, TX1490/RX1550, LC, 80km, -40°C~+85°C, with DDM |
