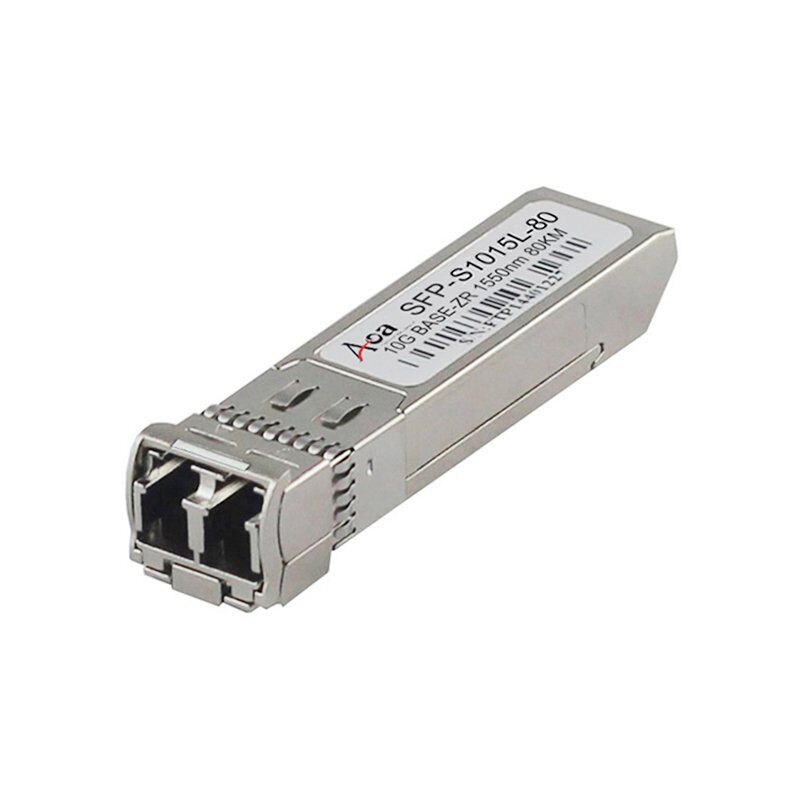

SFP-S1015L-80

10Gbps SFP+ Transceiver SM 1550nm 80KM LC



Features

• Supports up to 10.7Gbps bit rates
• 1550nm EML laser and APD photodiode, Up to 80km for SMF transmission
• Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
• Hot-pluggable SFP+ footprint
• Real Time Digital Diagnostic Monitoring
• Single +3.3V power supply
• Compatible with RoHS
• Operating case temperature: Commercial: 0℃ to +70℃   Industrial: -40℃ to +85℃



Application

• 10GBASE-ZR& 10G Ethernet
• 10G Fiber Channel



Standard

• Compliant with MSA SFP specification(SFF-8431, SFF-8432, SFF-8472)
• Compliant with IEC
• Compliant with IEEE 802.3ae



Description

The SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 80km transmission distance with SMF.

The transceiver consists of three sections: a Cooled EML laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.



Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage	Vcc	-0.5	4	V
Storage Temperature	Ts	-40	+85	°C
Operating Humidity	–	5	85	%



Recommended Operating Conditions

Parameter		Symbol	Min	Typical	Max	Unit
Operating Case Temperature	Standard	Tc	0		+70	°C
	Industrial		-40		+85	°C
Power Supply Voltage		Vcc	3.135	3.30	3.465	V
Power Supply Current		Icc			550	mA
Data Rate				10.3	11.3	Gbps
Transmission Distance				80		km



Ordering information

Model No.	Product Description
SFP-S1015L-80	10Gbps, 1550nm, LC, 80km, 0°C~+70°C, with DDM
SFP-S1015L-80I	10Gbps, 1550nm, LC, 80km, -40°C~+85°C, with DDM
