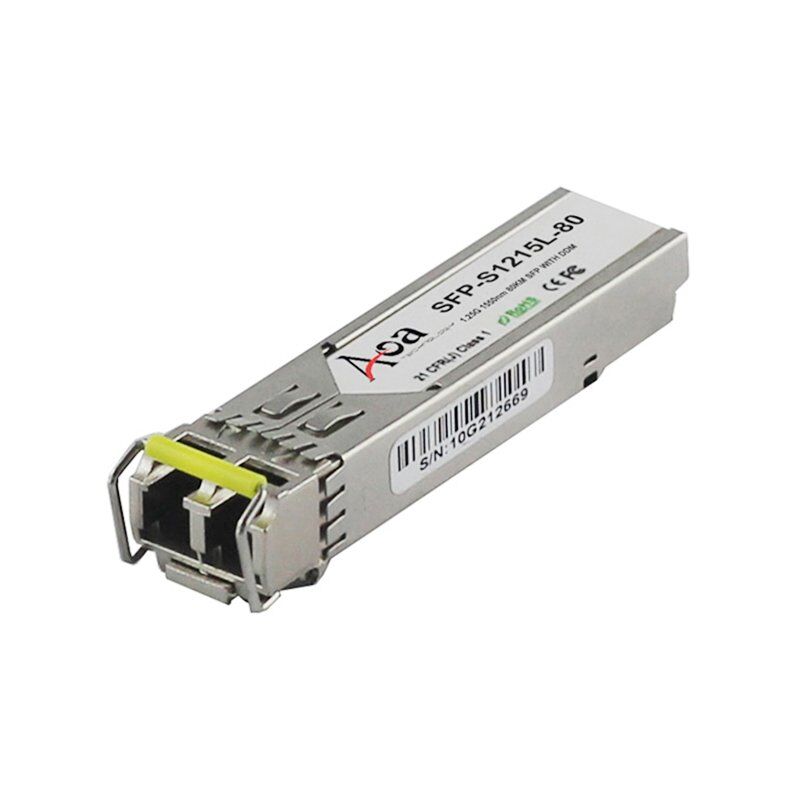

SFP-S1215L-80 1.25G SFP Module 80KM
Optical SFP Module
1.25Gbps SFP Transceiver SM 1550nm 80km LC
Share on
SFP-S1215L-80
1.25Gbps SFP Transceiver SM 1550nm 80km LC
Features
- Up to 1.25Gbps data links
- 1550nm DFB laser and photo PIN detector for 80km transmission
- Compliant with SFP MSA and SFF-8472 with Duplex LC receptacle
- Digital Diagnostic Monitoring: Internal Calibration or External Calibration
- Single +3.3V power supply
- Compatible with SONET
- Compatible with RoHS
- Operating case temperature: Commercial: 0℃ to +70℃ Industrial: -40℃ to +85℃
Application
- SDH and SONET system
- Fiber Channel
- Switch to Switch interface
- Switched backplane applications
- Router/Server interface
- Other optical transmission systems
Standard
- Compliant with MSA SFP specification
- Compliant with IEC
- Compliant with IEEE 802.3z
Description
The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps and 80km transmission distance with SMF.
The transceiver consists of three sections: a DFP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA). For further information, please refer to SFP MSA.
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
| Supply Voltage | Vcc | 0 | 4 | V |
| Storage Temperature | Ts | -40 | +85 | °C |
| Operating Humidity | – | 5 | 85 | % |
Recommended Operating Conditions
| Parameter | Symbol | Min | Typical | Max | Unit | |
| Operating Case Temperature | Standard | Tc | 0 | +70 | °C | |
| Industrial | -40 | +85 | °C | |||
| Power Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | |
| Power Supply Current | Icc | 300 | mA | |||
| Data Rate | 1.25 | Gbps | ||||
Ordering information
| Model No. | Product Description |
| SFP-S1215L-80 | 1.25Gbps,1550nm, LC, 80km, 0ºC ~ +70ºC, with DDM |
| SFP-S1215L-80I | 1.25Gbps,1550nm, LC, 80km, -40ºC ~ +85ºC, with DDM |
