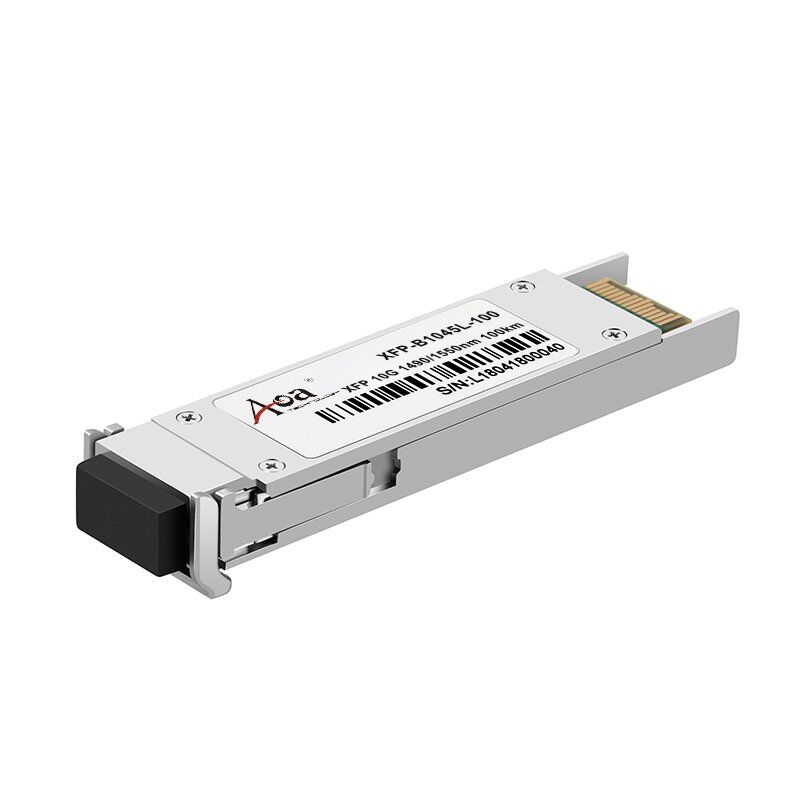

XFP-B1045L-100 10G XFP Module Bidi 100KM

Optical XFP Module

10Gbps XFP Transceiver Bi-Di TX1490/RX1550nm 100KM LC

Share on


10Gbps XFP Transceiver Bi-Di TX1490/RX1550nm 100KM LC



  • Supports 11.1Gbps bit rates
  • 1490nm EML laser and APD receiver
  • Up to 100km for SMF transmission
  • Hot-pluggable XFP footprint
  • XFI Loopback Mode
  • Compliant with XFP MSA with single LC receptacle
  • 2-wire interface with integrated Digital Diagnostic monitoring
  • EEPROM with Serial ID Functionality
  • Single +3.3V power supply
  • Power dissipation <3W
  • Compatible with RoHS
  • Operating case temperature: Commercial: 0℃ to +70℃   Industrial: -40℃ to +85℃



  • 10GBASE-BX 10.3125Gb/s Ethernet
  • 10GBASE-BX 9.953Gb/s Ethernet
  • SONET OC-192 SR-1 SDH STM I-64.1



  • Compliant with XFP MSA
  • Compliant with SFF-8472
  • Compliant with IEEE 802.3ae


Absolute Maximum Ratings

Parameter Symbol Min Max Unit
Supply Voltage Vcc -0.3 4 V
Storage Temperature Ts -40 +85 °C
Operating Humidity 5 85 %


Recommended Operating Conditions

Parameter Symbol Min Typical Max Unit
Operating Case Temperature Standard Tc 0 +70 °C
Industrial -40 +85 °C
Power Supply Voltage Vcc 3.13 3.3 3.47 V
Power Supply Current Icc 850 mA
Data Rate 9.95 10.3 11.3 Gbps
Transmission Distance 100 km


Ordering information

Model No. Product Description
XFP-B1045L-100 10Gbps, Bidi TX1490/RX1550nm, SMF, 100km, 0ºC ~ +70ºC, with DDM
XFP-B1045L-100I 10Gbps, Bidi TX1490/RX1550nm, SMF, 100km, -40°C~+85°C, with DDM
